Home Lab Furnace Microwave Sintering Furnace

Microwave Muffle Furnace

1100C 1200C Microwave Muffle Furnace with High Experimental Efficiency

1100C 1200C Microwave Muffle Furnace with High Experimental Efficiency

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna


  • Item No.:

    TMAX-HY-MF
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

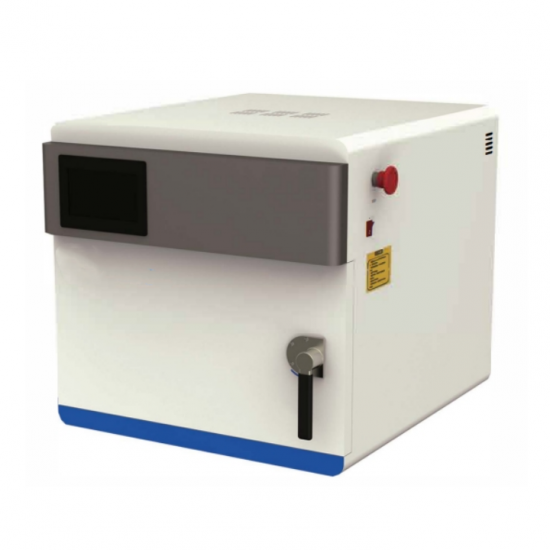

1100C 1200C Microwave Muffle Furnace with High Experimental Efficiency



Summarize

HY-MF microwave muffle furnace is a standard microwave high temperature equipment for laboratory use, applicable to various materials sintering synthesis, roasting and calcination and other process experimental research.



Main features

1) Industrial-grade brand microwave source, microwave output power stepless adjustable, to ensure that the equipment is continuous and stable for a long time;

2) Rapid heating and rapid extreme cooling can be realized, the experimental efficiency is greatly improved, saving 90% of the time than the traditional muffle furnace;

3) Touch screen operation, simple and convenient; brand control system, stable and reliable;

4) Adopt original heat preservation and crucible structure, no slagging, no pollution, durable;

5) Door open and power off, resumption delay, professional microwave shielding technology, to ensure safety.



Technical parameter

       Model

Parameter

HY-MF1512

HY-MF3012

Voltage

220±10V50Hz

220±10V50Hz

Microwave output power

0.01~1.40kW, continuously adjustable (Panasonic)

0.01~2.80kWcontinuously adjustable (Panasonic)

Heating space (L x W x H)

110x110x70mm

200x200x100mm

Microwave frequency

2.45GHz

Operating temperature

1100

Temperature measurement method

Thermocouple/infrared

Control mode

Programmable Logic Controller (Mitsubishi)+ Touch screen (Kunlun Mode)

Control program

Can set multi-stage process parameters, with data storage and export functions, a variety of control modes; One-button oven

Anti-microwave leakage

Microwave leakage level <1mW/cm2

Safety protection

Furnace door shutting switch, door open and power off, re-power delay, over-temperature alarm

Main body (L x W x H)

About 750x550x650mm

About 850x650x750mm



Consumables and optional accessories


 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
