300C 500C Integral Double Plate Manual Hot Press Device

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

Item No.:
TMAX-RYJ-600E
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
15 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
One year limited warranty with lifetime technical support

Product Details

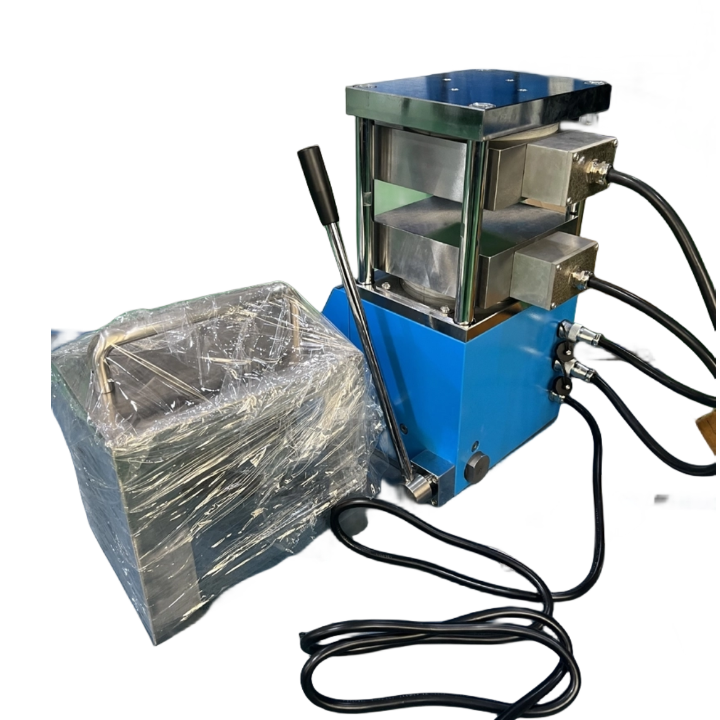

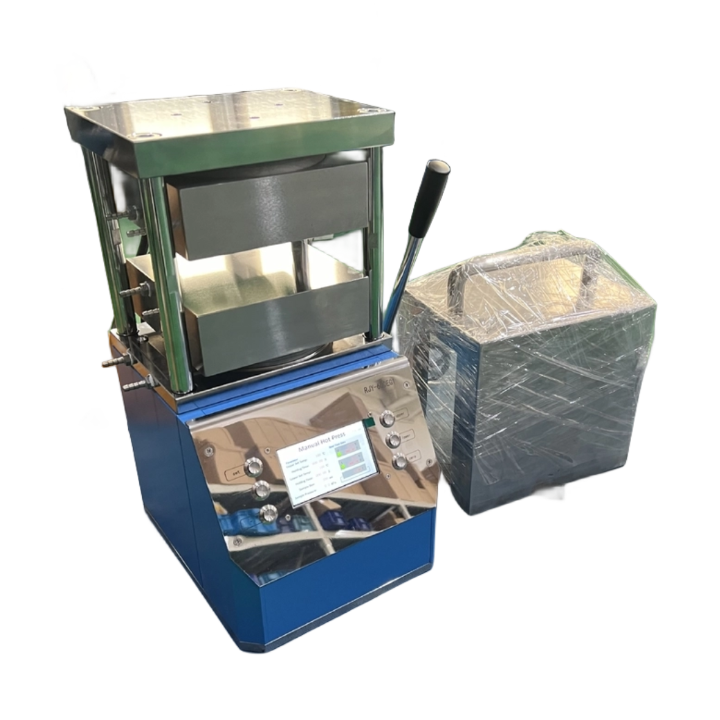

300C 500C Integral Double Plate Manual Hot Press Device

New RYJ-600E series

This is a compact double plate manual heat press with one-piece structure and fixed upper and lower heating plates for stable and reliable sample making experiments.

Main technical parameters

Equipment Model	RYJ-600E1	RYJ-600E2	RYJ-600EG1	RYJ-600EG2
Pressure range	0-10T
Timing insulation	999min
Piston diameter	φ65mm Chrome-plated cylinder

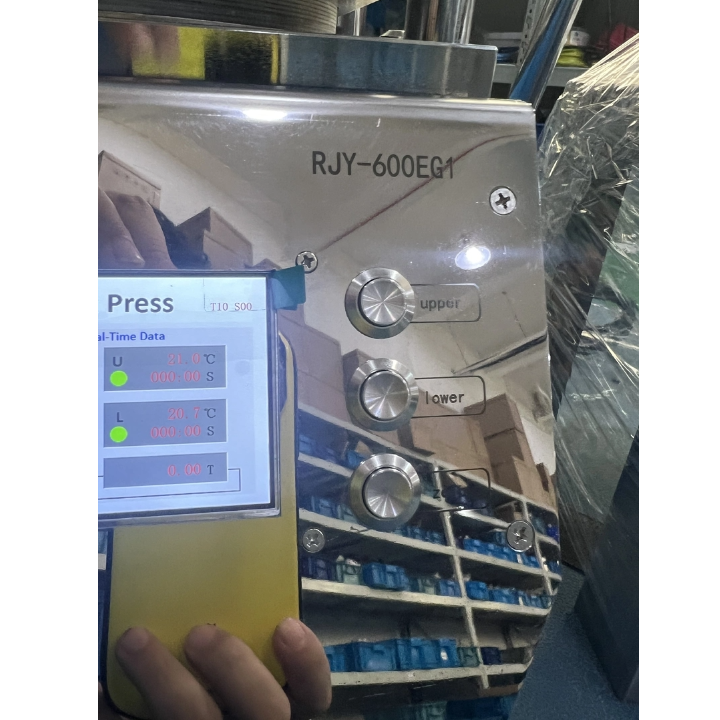

Pressure gauge type	4.3" LCD screen
Pressurization method	Manual pressurization
Thermostat type	XNNETS PLC programmable temperature control instrument
Hot press mold type	Double flat heating and pressurizing - top plate fixing - polished panel
Die heating temperature	Chamber temp to 300.0℃		Chamber temp to 500.0℃
Die cooling method	Water-cooled rapid cooling
Equipment insulation method	Imported insulation panels		Imported heat insulation board + stainless steel water-cooled heat insulation board
Hot pressing mold size	Wide 180*180mm	Wide 200*200mm	Wide 180*180mm
Equipment power supply	220V/1800W		220V/2500W
Overall structure	Integral structure, equipment without sealing connection, reduce oil leakage point
Dimension	280320520mm
Equipment weight	About 60-80kg
Model Description	Water cooler selection! When the device is heated to more than 400℃, the water cooler must be enabled
