15T Lab Hydraulic Cold Isostatic Press With 22mm ID Vessel

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-YLJ-CIP-15
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
15 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
One year limited warranty with lifetime technical support

Product Details

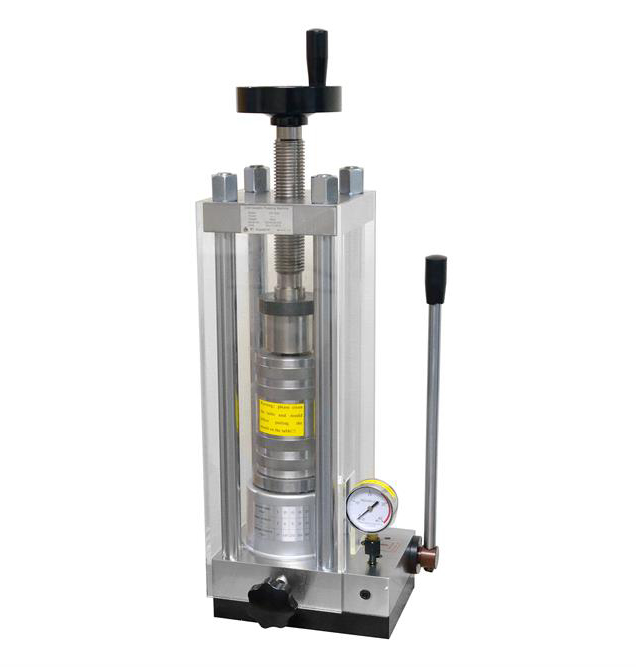

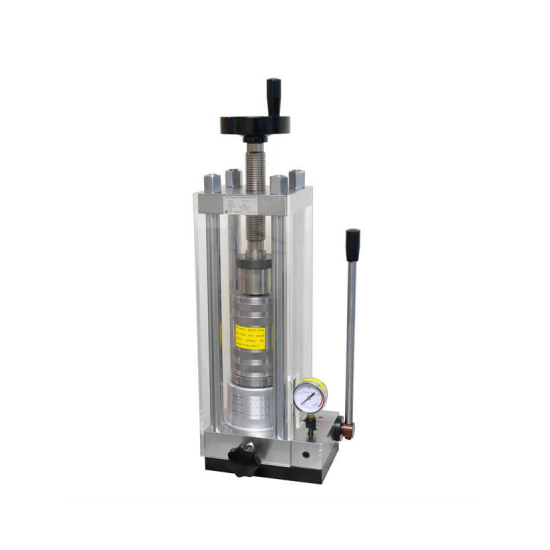

15T Lab Hydraulic Cold Isostatic Press With 22mm ID Vessel

YLJ-CIP-15 is a CE Certified and the smallest cold isostatic pressing (CIP) in the world. It has a 22mm ID hydraulic chamber made by ultra strength alloy, which can provide isostatic pressure up to 300 Mpa via a 15T hydraulic press. It is an excellent tool to prepare high-density compound pellet and small diameter rod. CIP-15 has the small footprint and can be placed in glove-box to prepare air-sensitive materials. A plastic protection cover is included.

Specification

Pressure Vessel	22mm ID. x 90mm Height max available sample height 70mm Made of high strength alloy with stainless steel protective jacket
Max. Hydraulic Pressure in Chamber	300 Mpa ( 43500 PSI)
Gauge Pressure Value to Force Conversion	Gauge Displayed Pressure Value (Mpa) for 87 mm Dia. Hydraulic Press	5	10	15	20
	Actual Force Applied on the Hydraulic Press (Ton)	3	6	9	12
	Pressure Applied to CIP Vessel ( Mpa) vs 22mm vessel cylider	77	155	232	310
	Notes: The actual force applied on the Vessel Cylinder (Ton) equal to the force applied to your working piece For calculating the actual pressure (Mpa) applied on your working piece, please follow the equations in below: P = T/πr^2 x g x 10 P: Pressure (Mpa) applied on your working piece T: Force (metric ton) Applied on the Pressure Vessel Cylinder g: Standard gravity. g ≈ 9.8 m/s2 π: ~3.14 r: Radius (cm) of the Pressure Vessel (1.1 cm) 1000 Kg = 1 Metric Tone; 1 Mpa ≈ 10 Kg/cm2
Hydraulic Machine	15T
Botton Cylinder Traveling Distance	20mm maximum
Operation Temperature	10 - 40°C
Dimension of Working Space	D1: 100mm D2: 85mm D3: 90mm H1: 310mm H2: 290mm
Overall Dimension (including 15T Presser)	270mm (W) x 240mm (D) x 660mm (H)
Net Weight	100 Lbs
Compliance	CE Certified
Warranty	Two years limited warranty with lifetime support
Application Notes	You may use the liquid rubber to seal the sample to be CIP You may use the machine as a dry pressing to order pressing die
Warning	Never let the press hold the target pressure be longer than 8 minutes, It's normal that the target pressure decreases a little bit during the pressure holding time, so never press the red nor the green button in this period. Pressure must be completely released first, then make sure the hand wheel and the pressure release valve has been tightened before pressing Do not raise the bottom cylinder (piston) more than it's maximum traveling distance. (20mm)

Packing List:

	Name	Qty
1	Main machine (15T Electric hydraulic pressing machine)	1 unit
2	Cold isostatic pressing dies (locating plate, top and bottom pressing die)	1 set
3	Seal kits	1 set
4	Black Rubber Rings O.D 7/8"	3 pcs
5	Pushing Rod Handwheel	1 pc
6	Hydraulic pressing oil	1 bottle
7	Socket Head Screw Driver	1 pcs
