1200C Single Zone Vacuum Quartz Tube Furnace with 25mm Tube Diameter

1200C Single Zone Vacuum Quartz Tube Furnace with 25mm Tube Diameter

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

  • Item No.:

    TMAX-SK2-12TPmini
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

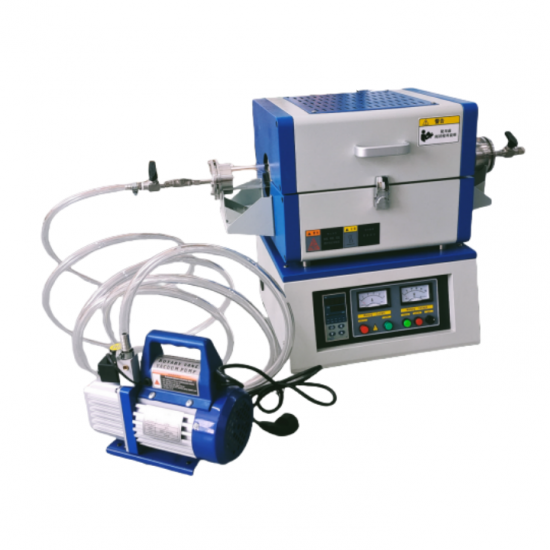

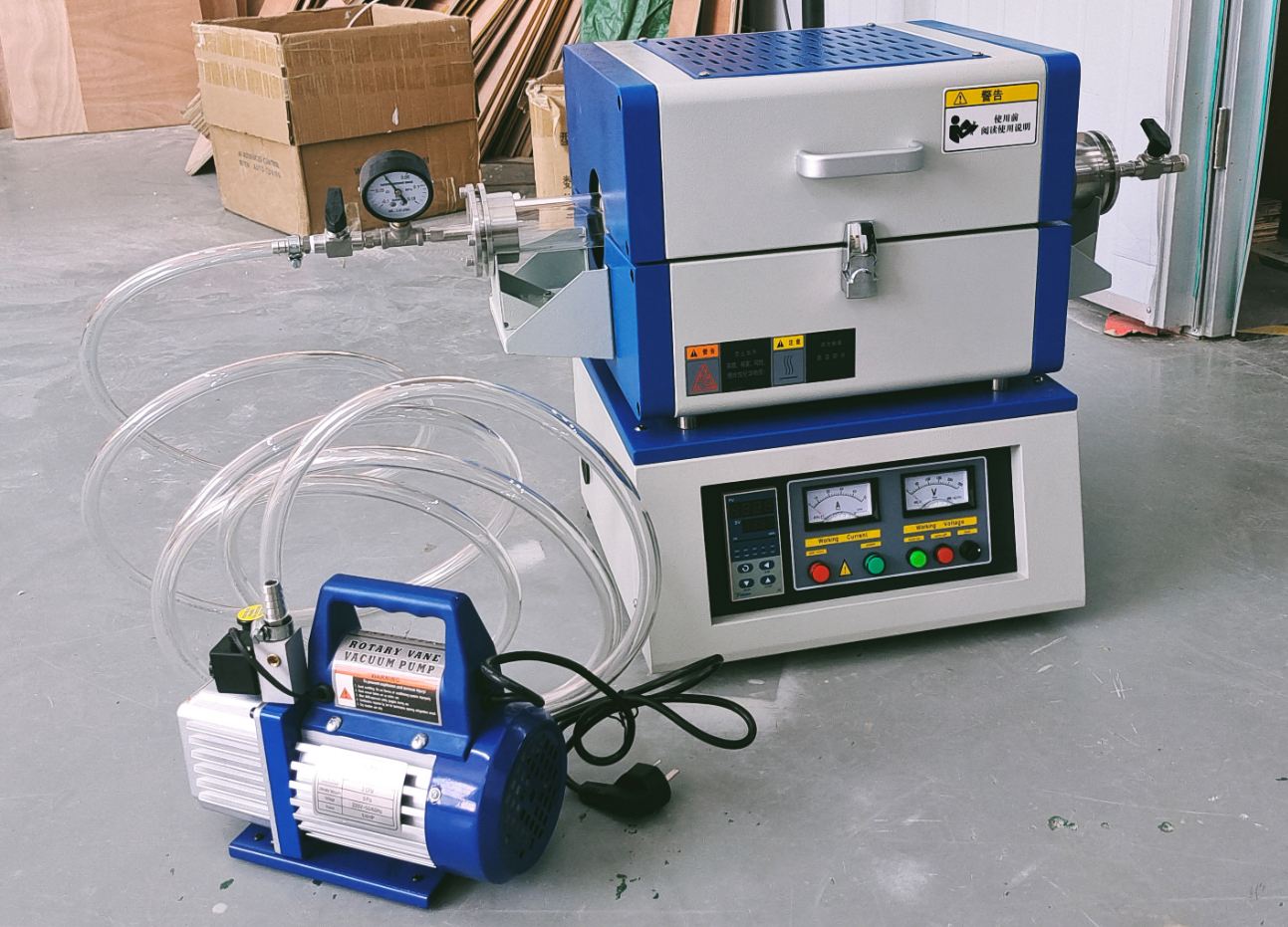

1200C Single Zone Vacuum Quartz Tube Furnace with 25mm Tube Diameter




The picture is just for reference



Main parameter

PN: SK2-12TPmini

Max.Temp: 1200C

Working temperature:0-1100C

Tube diameter:25mm

The heating zone length:200mm(single zone)

Length:600mm

Tube material:Quartz tube

Heating rate:0~20 Degree/Min

Voltage:220V,single phase 50/60HZ

Max.vacuum:-0.1Mpa

Heating element:Resistance wire

Thermocouple:K type

Temperature accuracy: ±1℃

Inlet gas/Atmosphere

It can be filled with various protective or destructive gases,Inert gases, mixed gases, nitrogen, oxygen, etc

Gas control

The air inlet can be set up 1 air intakes, each air inlet is provided with a ball valve, connected with a vacuum gauge. The air outlet is connected with one air outlet, and all holes are equipped with ball valves. Equipped with a vacuum pump.

 Furnace chamber design

Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace.

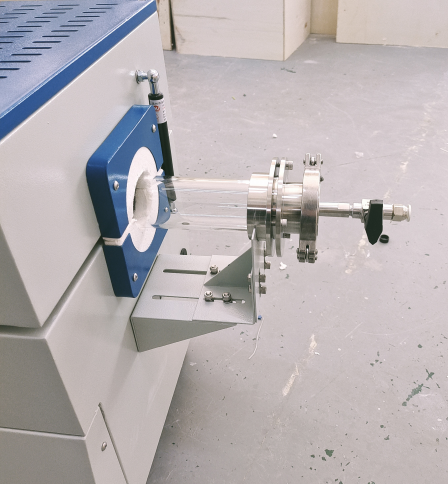

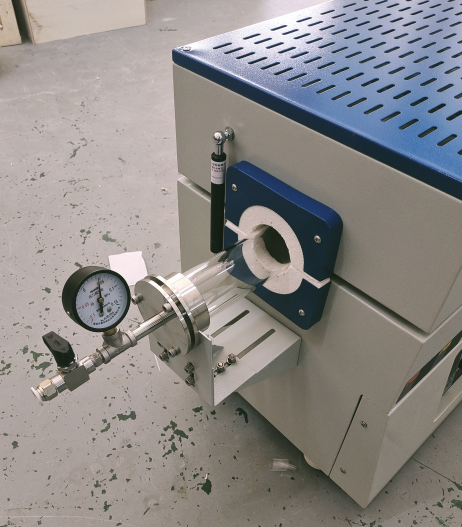

Sealing way

Adopt 304 stainless steel flange, with easy loading and unloading, oxidation resistance, acid and alkali resistance, double seal, ensure the sealing

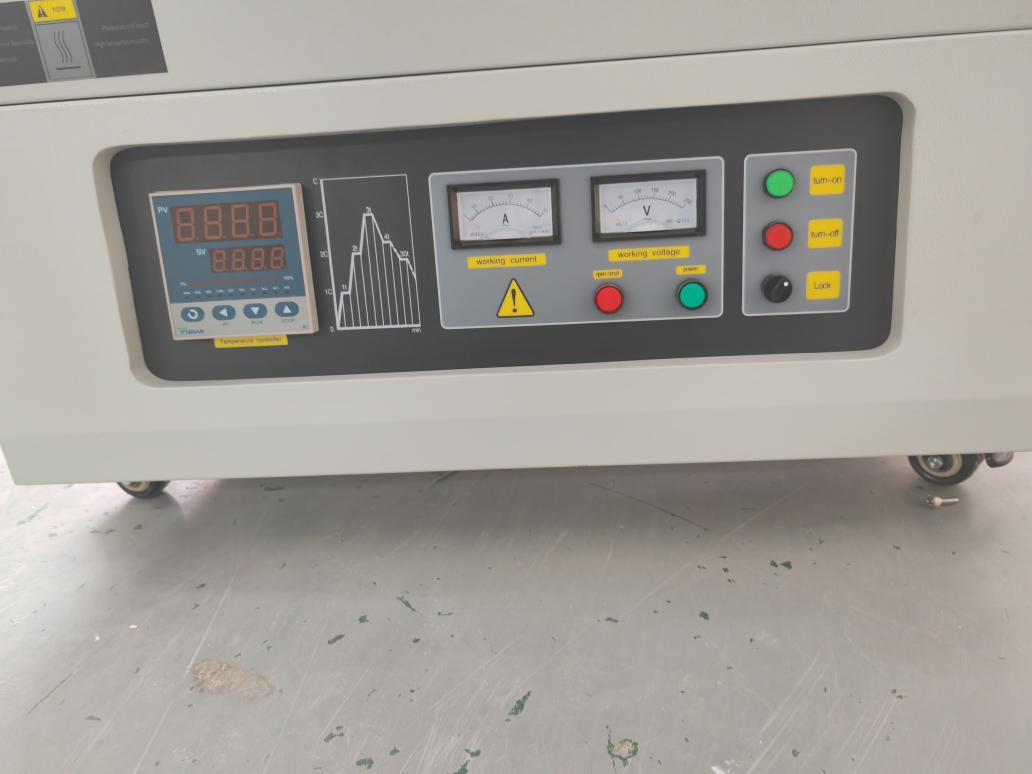

Temperature control security

The electric furnace adopts integrated circuit, module control, double circuit protection (partial temperature protection, ultra-high temperature protection, coupling protection, overcurrent protection, and other protection functions) to make the electric furnace work stable and reliable, safe.

Warranty

One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple and quartz tube damaged by user.

Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.

Standard Package Accessories:

Electric Furnace

1 set



High temperature gloves

1 pair



Crucible hook

1 pc



Quartz tube

1 pcs

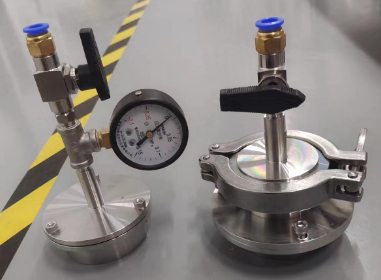

Stainless steel flange

1 set

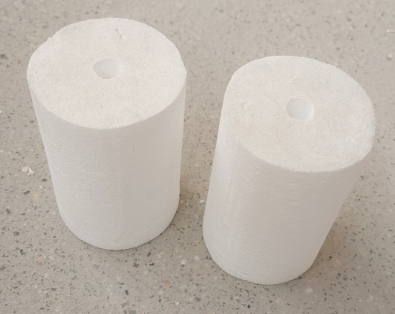

Tube stopper

2pcs



10mm Air pipe





User manual

1 book



Vacuum pump

1 set











 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
