Home Lithium Battery Machine Battery Manufacturing Line

Pouch Cell Manufacturing

 Pouch Cell Forming Machine Automatic Aluminum Laminated Film Forming Machine
Forming Machine

Pouch Cell Forming Machine Automatic Aluminum Laminated Film Forming Machine

Sales Manager:David

Email:David@tmaxcn.com

Wechat:18659217588


  • Item No.:

    TMAX-pouchforming

  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal

  • Product origin:

    China

  • Shipping port:

    Xiamen Port

  • Lead Time:

    5 Days

  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate

  • Warranty:

    Two years limited warranty with lifetime technical support
Contact us
Product Details

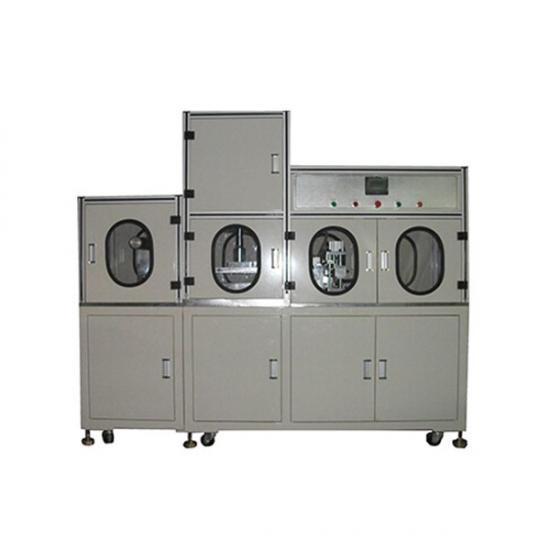

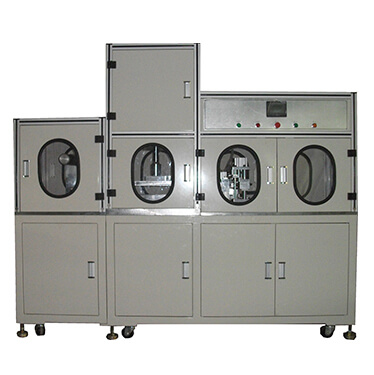

Pouch Cell Forming Machine Automatic Aluminum Laminated Film Forming Machine


Main technical parameters

TMAX-AP001

TMAX-AP002

Size(L*W*H)

700*2250*1860mm

1000*3800*1900mm

Weight

870kg

1200kg

Applicable aluminum-plastic film area

Max:380*200mm

Max:600*350mm

Thickness of aluminum film

0.11-0.2mm

0.11-0.2mm

Depth of stamping pit

Single pit<6mm

Single pit<6mm

Speed of stamping shell

200-450pcs/H

100-240pcs/H

Cylinder pressure

10T

30T

Stamping mode

Air cylinder

Servo

Power source

AC220V 0.5KW

AC220V 3.8KW

Gas supply

0.6-0.7Mpa 40L/S

0.6-0.7Mpa 40L/S




 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
