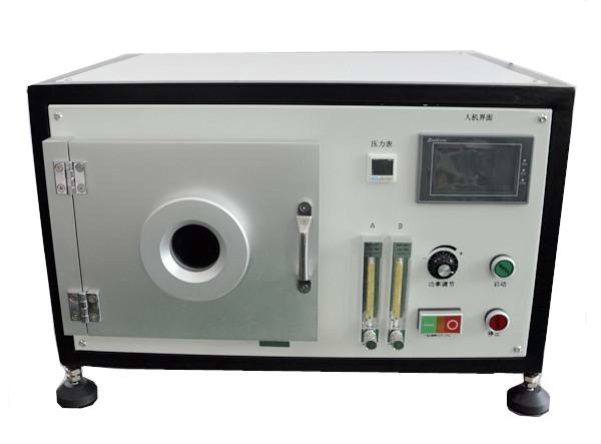

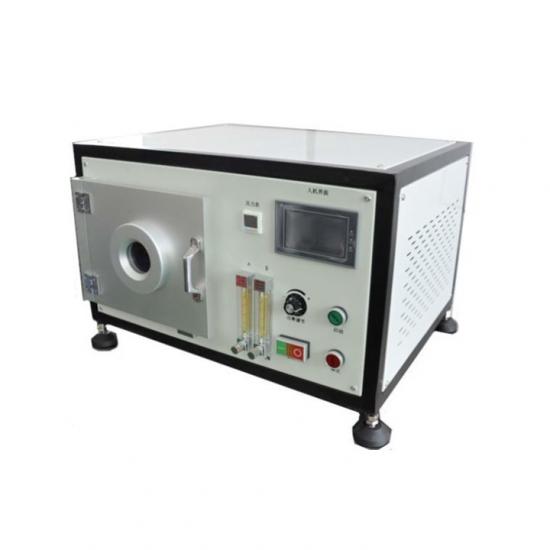

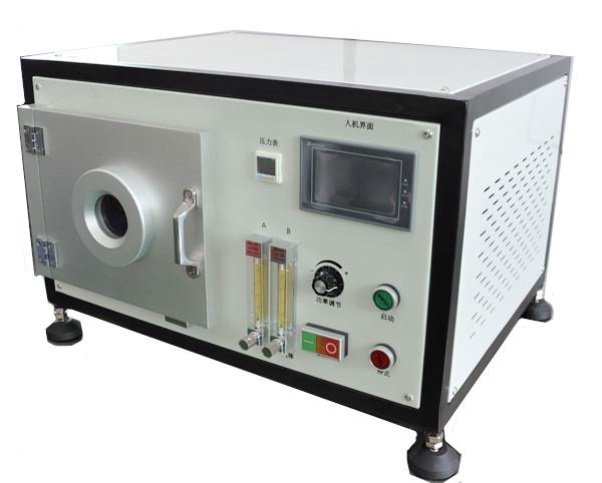

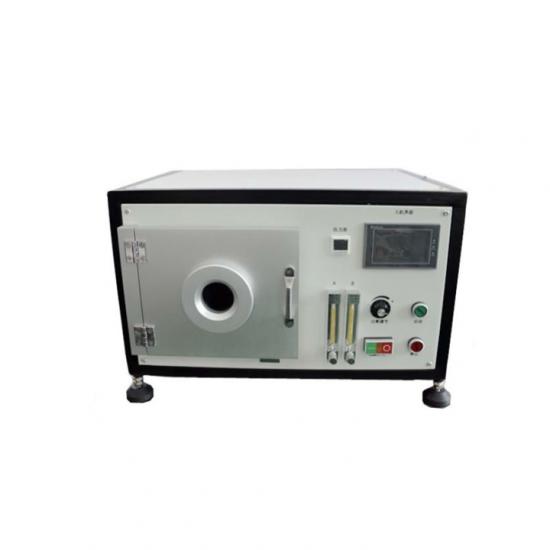

Portable Desktop Vacuum Portable-Plasma Surface Treatment Cleaner

1, Equipment Description:

Part of the plasma power supply, vacuum system, inflation system,
automatic control system.The basic principle of work is that under vacuum, the plasma can
ionize the gas under the control and qualitative methods, and the vacuum pump is used to
vacuum the working chamber to a vacuum of 30-40 Pa, and then the gas is ionized under the
action of the high frequency generator. Forming a plasma (the fourth state of matter), its
remarkable feature is a high uniform knife glow discharge, which emits color visible light from
blue to deep purple according to different gases, and the material processing temperature is
close to room temperature.These highly active microparticles interact with the treated surface to provide various surface characteristics such as surface hydrophilicity, water repellency, low friction, high cleaning, activation, and etching.

 2, plasma processing advantages:

1). Environmental protection technology: The plasma action process is a gas-solid phase dry reaction, which does not consume water resources, does not require the addition of chemicals, and has no pollution to the environment.
2). Wide applicability: It can be processed regardless of the type of substrate to be processed, such as metals, semiconductors, oxides and most polymer materials.
3). Low temperature: close to normal temperature, especially suitable for polymer materials, longer storage time and higher surface tension than corona and flame methods.
4). Strong function: only involves the shallow surface of polymer material (10 -1000A), which can give it one or more new functions while maintaining its own characteristics;

5).Low cost: simple installation, easy operation and maintenance, continuous operation, often several bottles of gas can replace thousands of kilograms of cleaning fluid, so the cleaning cost will be much lower than wet cleaning.
6). Full process controllable process: All parameters can be set by computer and data recording for process quality control.
7). The geometry of the treatment is unlimited: large or small, simple or complex, and parts or textiles can be processed.

A small plasma cleaner refers to a plasma cleaner with a volume below 10 liters and a radio frequency power supply below 500 watts. According to different cleaning and processing requirements, the frequency is divided into 40KHz, 13.56MHz and
2.54GHz. In comparison, when operating at 13.56MHz RF frequency, the matching is simple, and the RF power supply provided is highly efficient, so it is popular in conventional material handling and cleaning applications.

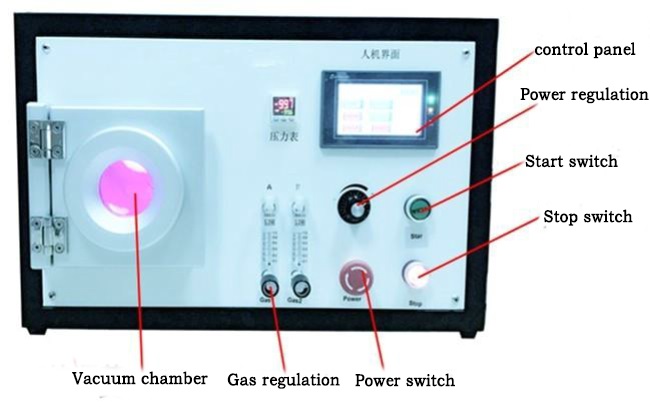

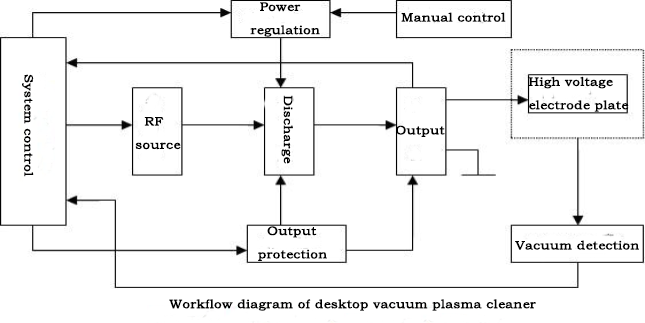

3.Basic structure of the small plasma cleaner:

1),RF power supply: RF source, RF regulation, power amplification, power regulation, power output,output protection, plasma electrode, temperature protection.

2),System control part: digital automatic control, I/O control, vacuum A/D detection, pulse width
ratio D/A adjustment, parameter memory, clock setting.

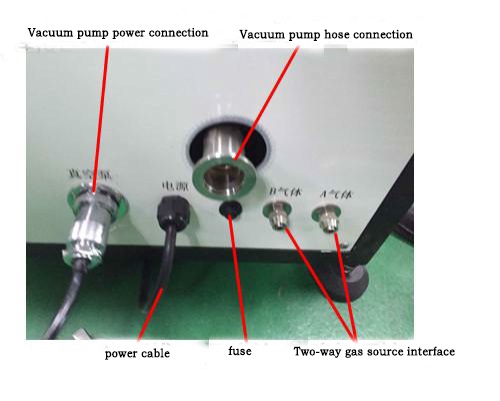

3),Vacuum and gas path parts: vacuum system, applied gas, flow regulation, return
air and piping

Overall appearance treatment process, rack door paint, durable, scratch-resistant, aluminum alloy automatic door: oxidation treatment, sand blasting, smooth high-grade, stainless steel cavity internal surface treatment bright, easy to clean, circuit design current overload protection, modular circuit, Easy and quick maintenance, PLC man-machine interface, convenient, concise, precise timing, manual, automatic, vacuum pressure can be operated, tumbler rubber foot cup, automatic balancing machine, shock absorption

4.General technical parameters of the equipment:

Type 10L is a dual gas input.
*Cavity material: Stainless steel surface treatment
*Power supply: AC220V
*Working current: The working current of the whole machine is not
more than 1.2A (excluding vacuum pump)
*RF power supply: 0-500W Adjustable
*RF frequency: 13.56MHZ
*Frequency offset: < 0.2KHz
*Characteristic impedance: 50 ohm, automatic matching
*Vacuum degree: 10pa-30Pa
*Number of gas paths: Dual gas input
*Gas flow: 10—100ml/min(Adjustable)
*Process control: PLC operation interface automatic and manual mode

*Cleaning time: 1-99999s(Adjustable)
*Power size: 10%-100%(Adjustable)
*Inner cavity size: L×W×H 220×280×180mm
*Dimension: _650x550x440 mm
*Weight: 45Kg
*Vacuum pump: 2XZ-4
*Vacuum chamber temperature: < 65°C
*Cooling method: Forced air cooling

5.Deatils:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
