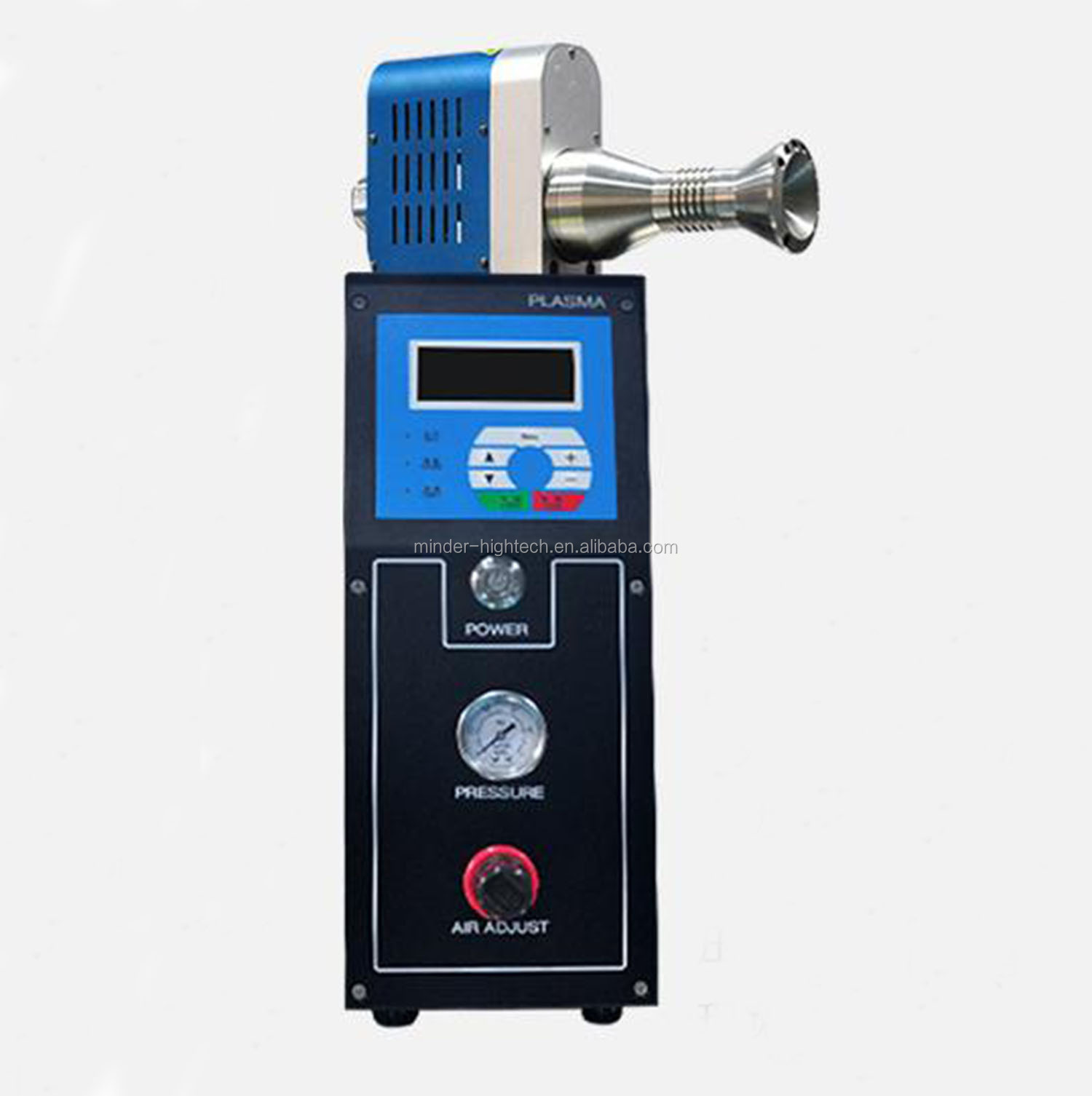

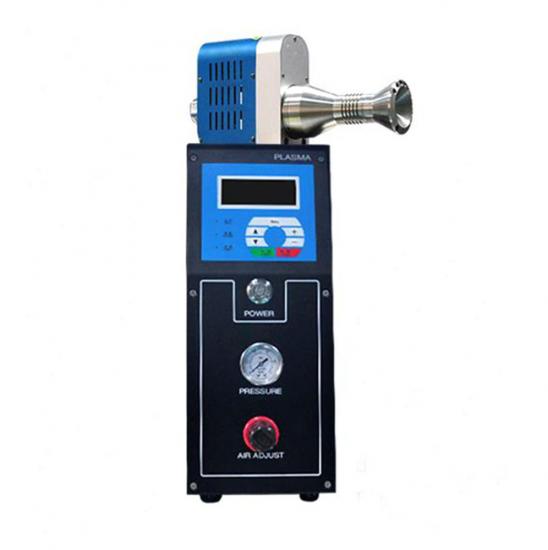

Atmospheric Plasma Cleaning Machine Cleaner for Glass with Plasma Gun for Glass Cellphone Screen PP PE PVC

Product description

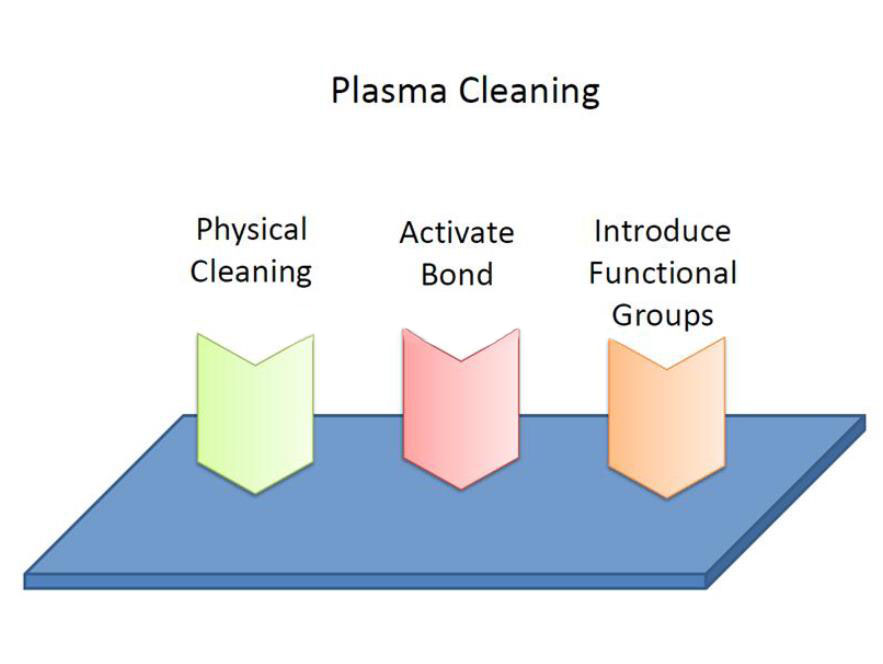

(1.1)The role of plasma cleaning

The principle of plasma cleaning is mainly:

(A)Etching on the surface of materials - physical effects

A large number of active particles in the plasma, such as a large number of ions, excited molecules, and free radicals, act on the surface of the solid sample, which not only removes the original contaminants and impurities, but also produces an etching effect to roughen the surface of the sample. Many fine pits are formed, increasing the surface ratio of the sample. Improve the wetting properties of solid surfaces.

(B)Activation bond energy, cross-linking

The energy of the particles in the plasma is between 0-20 eV, and most of the bonds in the polymer are between 0-10 eV.

When a solid surface is used, the original chemical bond on the solid surface can be broken, and the free radicals in the plasma and these bonds

The formation of a network of crosslinked structures greatly activates surface activity.

(C)Forming new functional groups - chemistry

If a reactive gas is introduced into the discharge gas, a complicated chemical reaction occurs on the surface of the activated material, and new functional groups such as a hydrocarbon group, an amino group, a carboxyl group, and the like are introduced, and these functional groups are all active groups, which can significantly improve the surface activity of the material.

Technical Parameters

Performance advantage

1.German circuit technology:
High-density plasma is generated by imported high-voltage excitation power circuit technology to ensure superior cleaning results

2.Unique discharge technology:
Special treatment and special structure of the discharge device to ensure a stable and uniform plasma

3.With assembly line production:
According to the needs of the user on site, configure the optimal production line to greatly improve production efficiency.

4.Low temperature cleaning:
According to the temperature requirements of different occasions, it does not affect the temperature of the cleaning products.

5.Quality product parts:
All parts of the product are made of imported top quality parts to ensure superior equipment performance.

6.Precision CNC machining: imported precision CNC machine tool processing technology, and equipped with imported three-coordinate measuring instrument for quality monitoring

7.Comprehensive security protection:
Temperature safety protection function, overload protection function, air pressure abnormality protection function, short circuit breaking alarm protection function, various misoperation protection functions

Application industry:

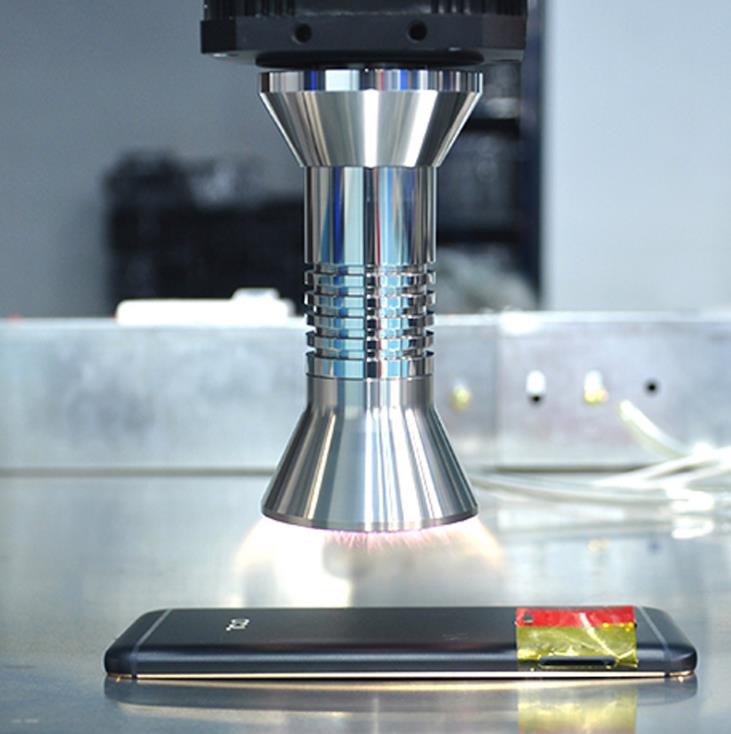

Wide range of cleaning and activation applications, professionally used in mobile phone screens, PE, PP, PVC, PET, ceramics, glass, lithium batteries, rubber, polymer materials, etc.

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
