Nano Mill Scale Powder Making Planetary Ball Mill/Nano Grinding Mill For Lab / Small Ball Mill For Sale

Features

Planetary Ball Mill designed for mixing, fine grinding, and preparing small volume high-tech material production, which features with small volume, high efficiency, low noise and Lock clamps. If choosing with optional vacuum jar, it can grind samples under the vacuum condition or filled with inert gas. The product is extensively used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, and Environmental Protection, etc.

Specifications

Model	Capacity	Specification of milling tank
XQM-0.2	0.2L	50ml
XQM-0.4	0.4L	50ml-100ml
XQM-1	1L	50ml-250ml
XQM-2	2L	50ml-500ml
XQM-4	4L	250ml-1L
XQM-6	6L	lL-1.5L
XQM-8	8L	1L-2L
XQM-10	10L	1L-2.5L
XQM-12	12L	1L-3L
XQM-20	20L	2L-5L
XQM-40	40L	5L-10L
XQM-60	60L	10L-15L
XQM-100	100L	20L-25L

Model	Planetary Ball Mill Machine
Grinding tank volume (L)	According to requirements
Grinding tank material
Maximum loading per tank	Material and grinding medium does not exceed two-thirds of the volume
Feeding material size	Soil material ≤ 10 mm, other materials ≤ 3 mm
Discharge material size	Min 0.1um
Rotating speed	Revolution 335r / min, Rotation 670r / min
Speed ratio  (revolution: rotation)	1:2
Speed mode	Frequency, programmable stepless speed regulation, manual, automatic timing forward and reverse
Transfer method	Gear drive
Working Voltage	220V
Way of working	Two or four tanks work at the same time
Maximum continuous operating time	72hours
Machine Size	750*470*564mm
Programmable control (electronic monitoring)	Ball mill using high-tech microcomputer chip control, can be set to forward and reverse alternately run(0-999min) and forward, pause, reverse, pause, forward (0-999min) alternate operation according to the procedure. Particularly suitable for cooling or intermittent operation.



Besides the planetary ball mill machine, our factory provides all kinds of mill pots,like stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.



 Selection



Planetary Ball Mill
0.2L-200L total volume optional	Pictures	Link
		Rolling Jar Mill
		Vertical Planetary Ball Mill(Square )
		Horizontal Planetary Ball Mill
		Air-cooling Function Planetary Ball Mill
		Ball Mill for Production
		Full Directional Rotation Lab Scale Micron Fine Milling Powder Grinding Ball Mill

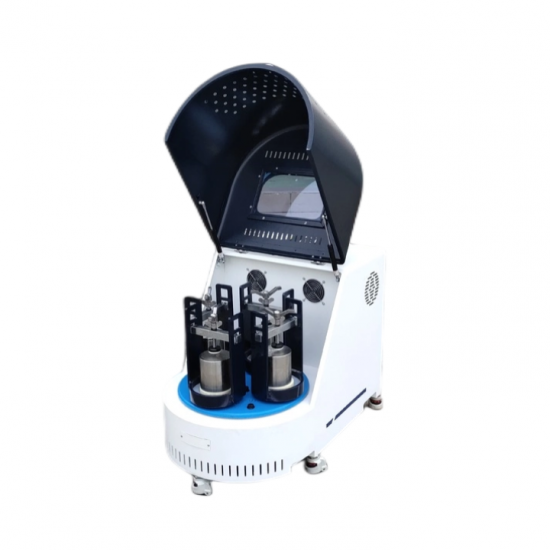

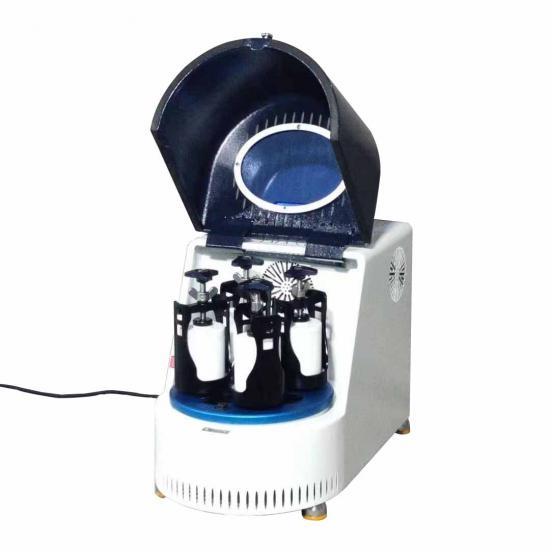

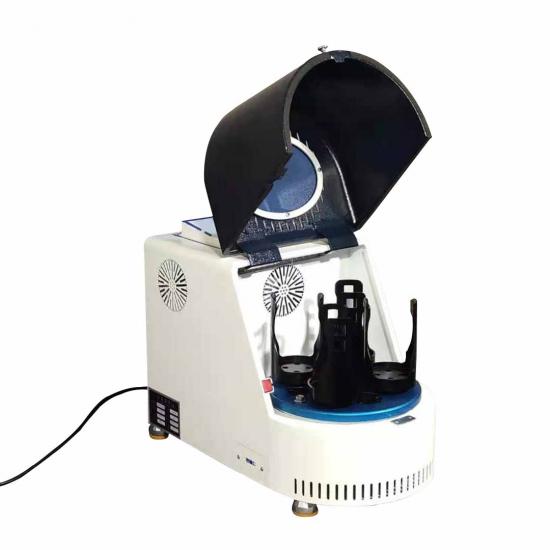

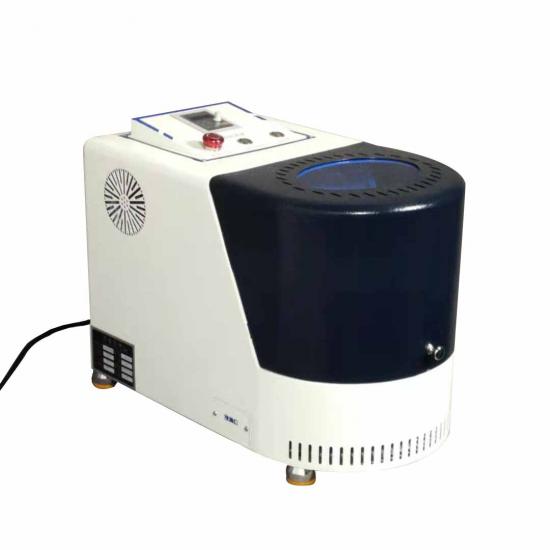

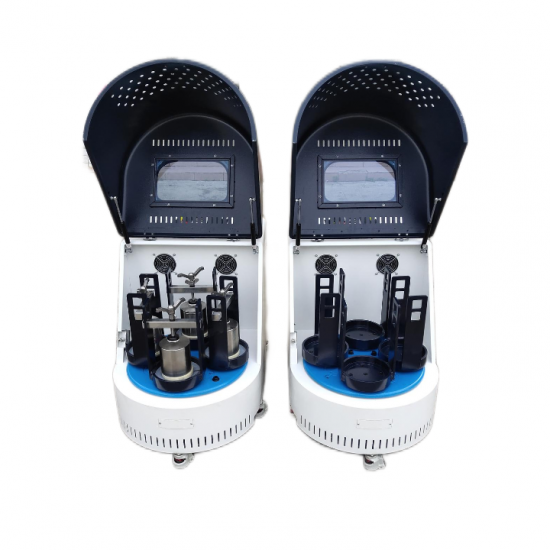

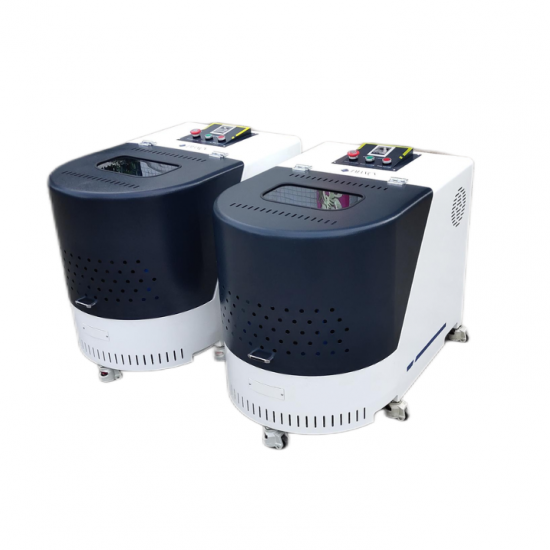

 Product Images



Related Machine

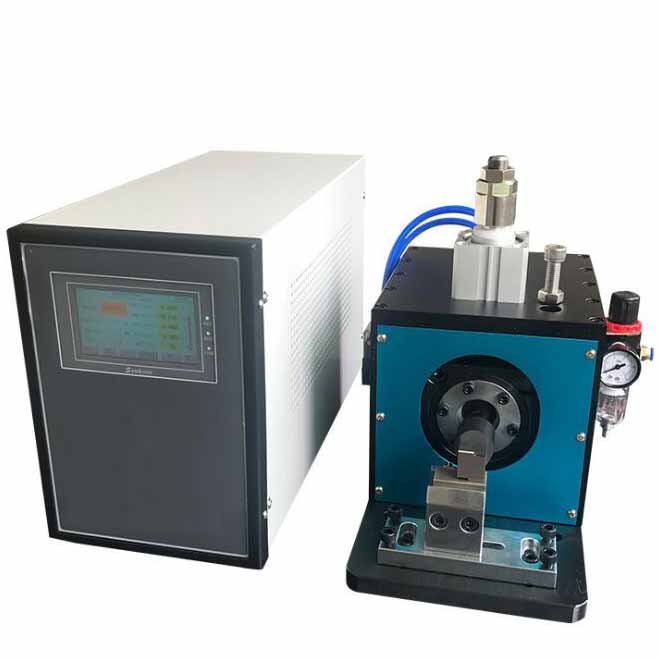

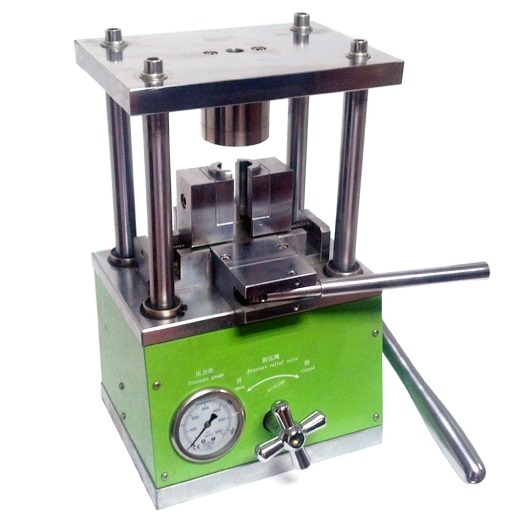

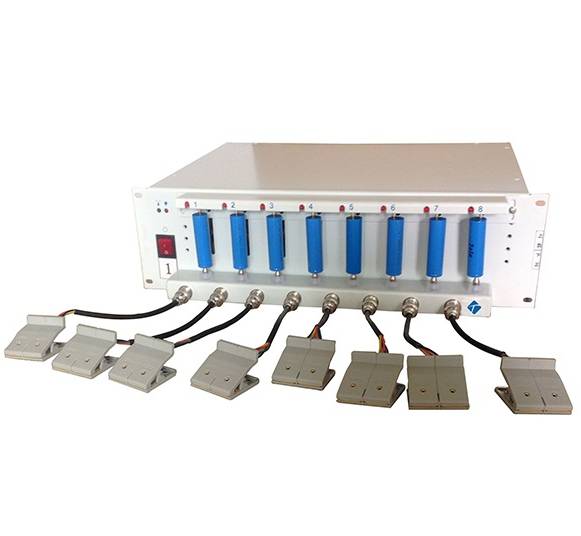

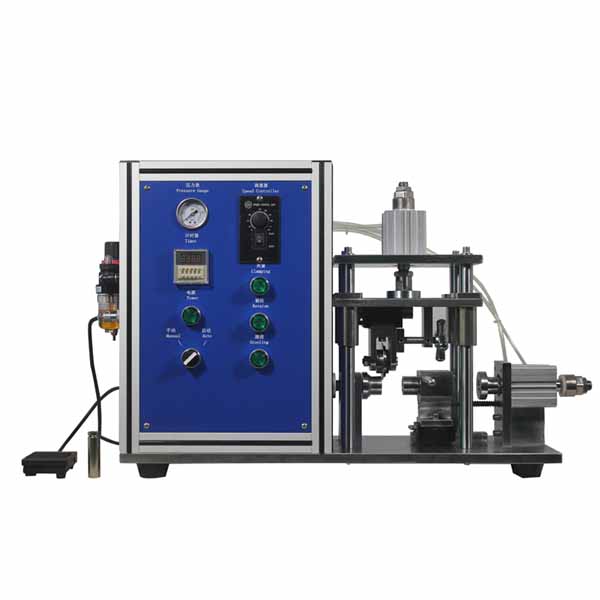

Electrode Slitting	Welding Power: 80-6500W optional	Lab cylindrical cell grooving machine	Manual Sealing or Pneumatic Sealing Machine	8 Channel Battery Tester
