Laboratory Vacuum DC Sputter Coater Coating Machine with Max Sputtering Current of 0-20mA

Laboratory Vacuum DC Sputter Coater Coating Machine with Max Sputtering Current of 0-20mA

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna


  • Item No.:

    TMAX-SD900
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

Laboratory Vacuum DC Sputter Coater Coating Machine with Max Sputtering Current of 0-20mA



Introduction

Ion Sputtering Coater (SD900 Model)  is ideal and designed for lab SEM sample preparation. It is widely used to coat non-conductive SEM samples with Au for better imaging. It is also excellent for surface treatment.

Working vacuum pressure can be achieved quickly within 2 minutes when using proper vacuum pump. It generates much less heat. It is user friendly and easy to operate.

Vacuum pump is included.




Parameter

Vacuum pump set

(Oil required) rotary vacuum pump

Rotary pumping speed

50 Hz : 8 /h (2.2 L/s)/ 60 Hz : 9.6/h (2.6 L/s)

 Vacuum limit

2Pa

Max sputtering current

0-20mA

Working pressure

30Pa -7 Pa

Vacuuming time

<5 Min(2 Pa)

Vacuum measure

Measuring range from atmosphere to 2*10-2mbar

Gas control

Gas flow controller

Chamber size

Φ150*120mm (height) scratch resistant quartz glass

Magnetron target source

Target size φ 50*0.1mm(Au)/ target source: Au,Ag,Pt

Operation method

Instruction Manual

Weight/size

45kg/360mm length x 300mm wide x 380mm high

Power supply

AC 110V 60Hz or AC 220V 50Hz

Power consumption

<1500W

Cooling method

Air cooling

Warranty

One year limited warranty with lifetime product suppor

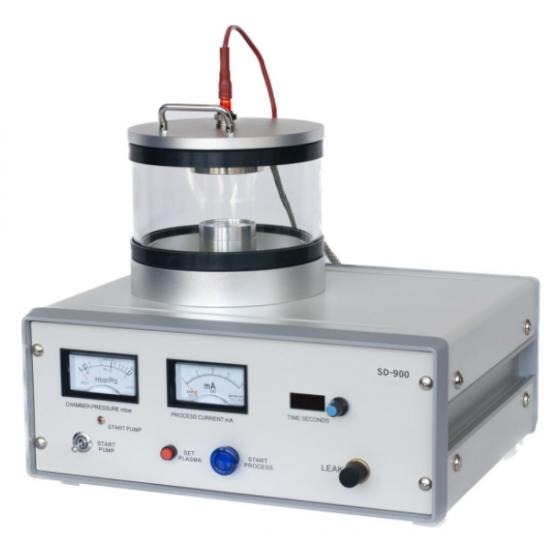

DC Sputter Coater

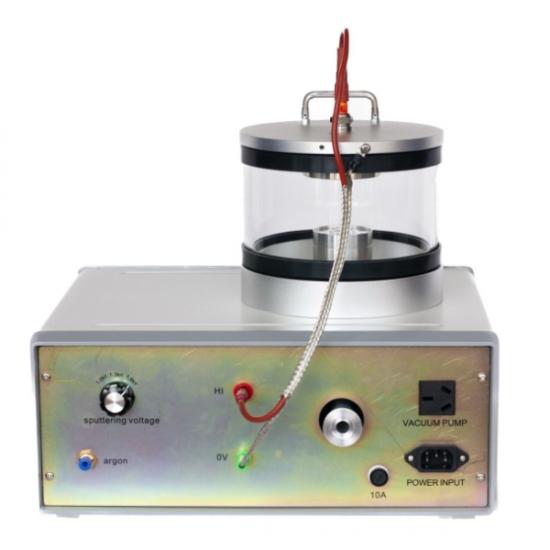

DC Sputter Coater

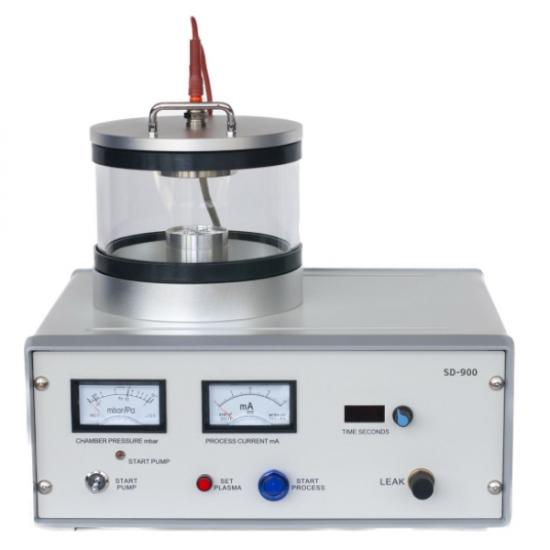

DC Sputter Coater

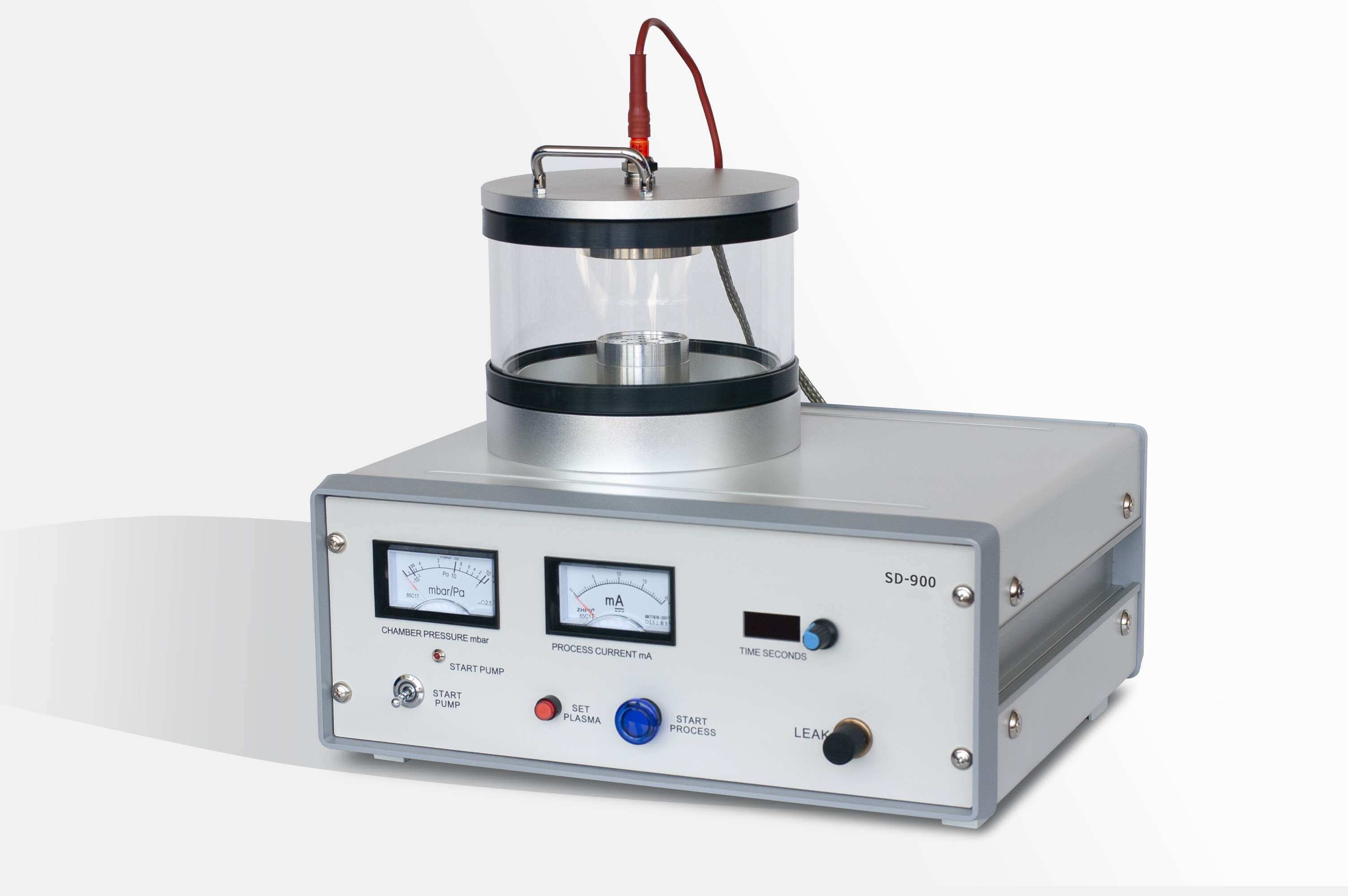

DC Sputter Coater


Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
