Lab Vacuum Magnetron Ion Sputter Coating Coater for Better Image

Introduction

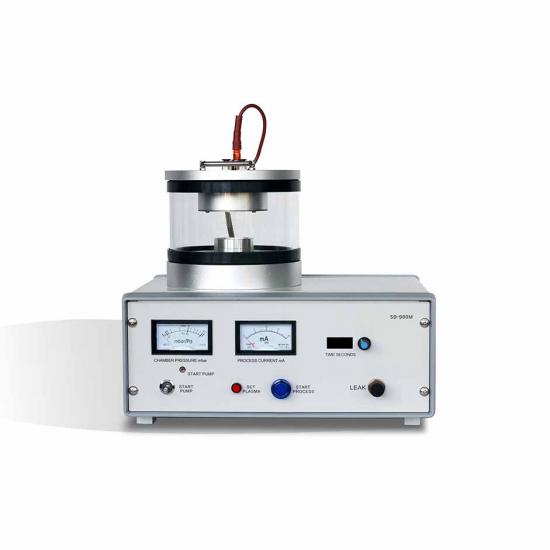

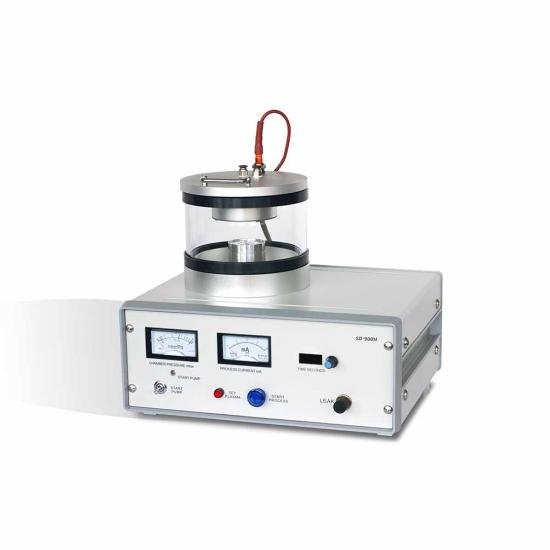

Magnetron Ion Sputtering Coater (SD900M Model) is ideal and designed for lab SEM sample preparation. It is widely used to coat non-conductive or heat-sensitive SEM samples with Au for better imaging. It is also excellent for surface treatment and avoids damage to the substrate sample.

Coating Result Sample Picture under SEM (by SD-900M Model) EPTFE (Extended Poly Tetra Fluoro Ethylene)

Low vacuum, can be achieved quickly when using proper vacuum pump within 5 minutes. It generates much less heat and avoids plasma damage to the substrate sample. It is user friendly and easy to operate.

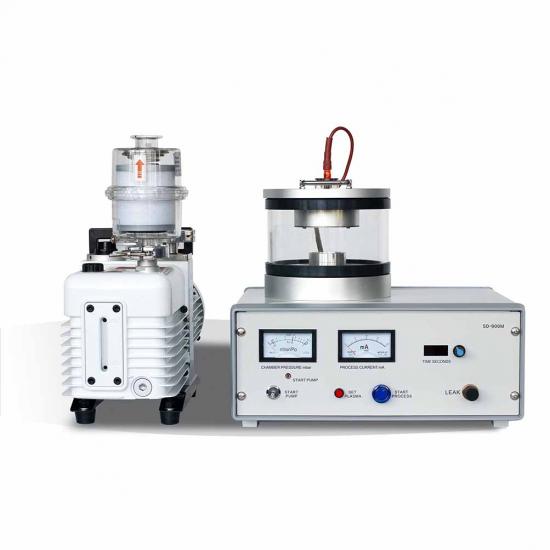

Vacuum pump is included. Chiller is optional.

Parameter

Vacuum pump set	(Oil required) rotary vacuum pump
Rotary pumping speed	50 Hz : 8 m³/h (2.2 L/s)/ 60 Hz : 9.6m³/h (2.6 L/s)
Vacuum limit	2 Pa
Max sputtering current	100mA
Working pressure	20Pa - 8 Pa
Vacuuming time	<5 Min(2 Pa)
Vacuum measure	Measuring range from atmosphere to 2*10^-2mbar
Chamber size	Φ150*120mm (height) scratch resistant quartz glass
Magnetron target source	Target size φ50*0.1mm(Au)/target source: Au,Ag,Pt
Operation method	Instruction Manual
Weight/size	45kg/360mm length x 300mm wide x 380mm high
Power supply	AC 110V 60Hz or AC 220V 50Hz
Power consumption	<1500W
Cooling method	Water cooling(optional)
Warranty	One year limited warranty with lifetime product support

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
