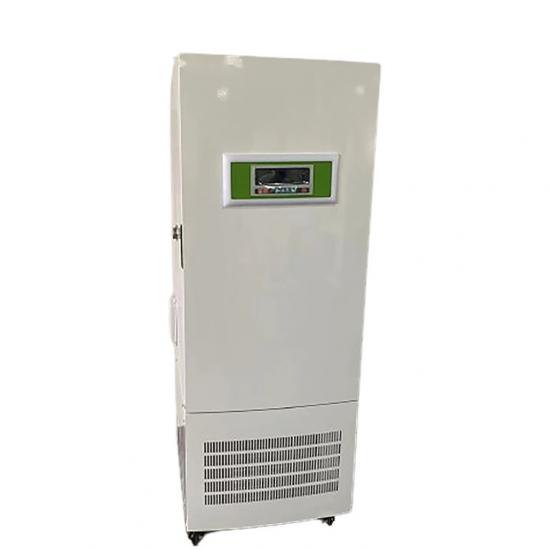

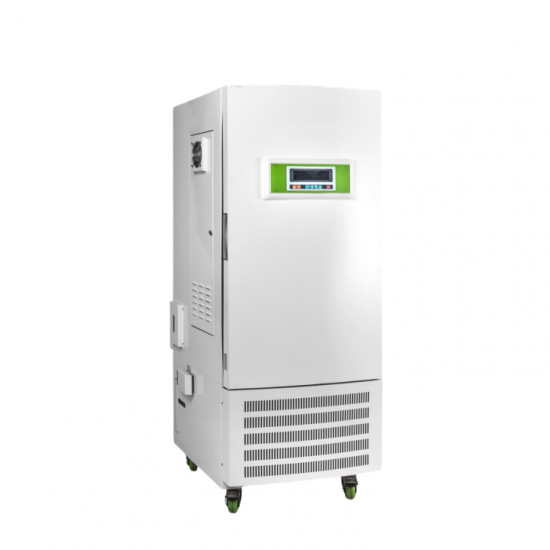

Lab Vertical Type 475L Large Screen LCD Display Illumination Incubator

Scope of application:

The product is a high precision cold and hot constant temperature equipment with automatic control of light and humidity. It can be used for plant germination, seedling rearing, microbial culture, water quality monitoring BOD determination, and other purposes of constant temperature test. It is the ideal test equipment for biological genetic engineering, agriculture, forestry, environmental science, animal husbandry, aquatic production, scientific research and teaching departments.

Structural characteristics

1. The use of LED cold light source lighting, its own heat generation is very little, so that the temperature inside the box is more stable.

2. Vertical light is placed inside the box, two layers of light plate, so that the light on any point in the box is more uniform, changing the shortcomings of strong light on both sides and weak light in the middle.

3. Non-polar dimming: using the control panel to set the required illuminance to increase or reduce the size of the current to change the intensity of the light, completely changing the shortcomings of changing the number of lamps before changing the intensity of light.

4. Each layer is closely matched with a partition board, and there is no light interference between the upper and lower layers.

5. The light plate (diaphragm) can be adjusted arbitrarily, which is convenient for the operator to carry out various experiments and plant culture.

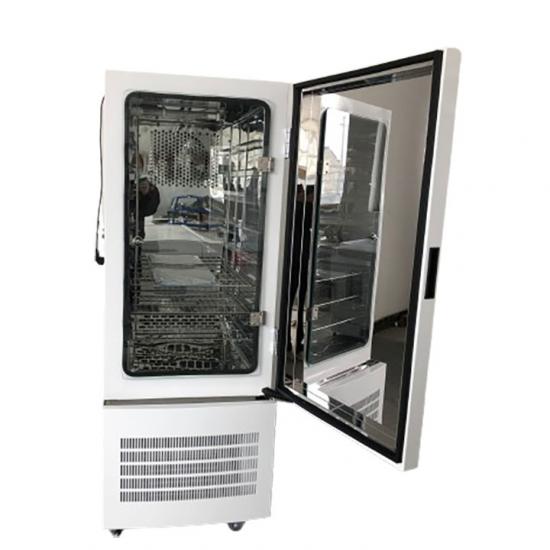

6. The culture box door is multi-door design, and the inner door is tempered glass, which can directly observe the culture in the working room. The outer door adopts magnetic door seal with good sealing.

● Humanized design

●30 segment program control, large screen LCD display, multiple groups of data on one screen display, menu type operation interface, simple to understand, easy to operate.

● The box structure adopts curved arc design, novel and beautiful shape.

● Mirror stainless steel inner liner, four corners semi-arc transition, no tools can be removed the box inner partition or partition strip, easy to disinfect and clean the studio.

● Intelligent control technology

● User-set parameters can be automatically stored in the case of power failure, and run the original set program after power.

● Program control temperature, humidity, illuminance, time and heating rate, and can be multi-stage step program control, simplifying the complex test process, and truly realize automatic control and operation.

● When the light incubator fails, the LCD display has fault information, and the operation fault is clear at a glance.

● Adopt international brand compressor and double refrigeration system.

● Adopt JAKEL tubular circulation fan, with unique design of air duct structure, to create a good air circulation system, effectively ensure the temperature uniformity in the box.

● Safety features

● Independent temperature limit alarm system, and sound and light alarm prompts the operator to ensure safe operation without accidents.

● High or low temperature alarm.

● Equipped with leakage protector.

● Equipped with auxiliary temperature controller to ensure that the product can work normally (for heating) when the main temperature control is out of control.

Technical parameter table:

Note: Suffix N is a double refrigeration system, no N is a single refrigeration, suffix D is a double door

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
