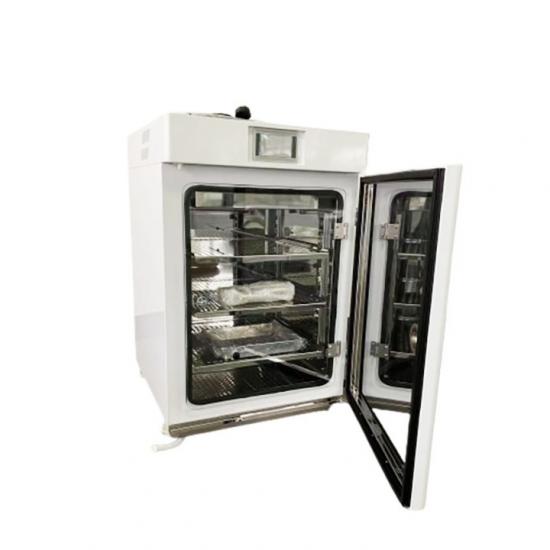

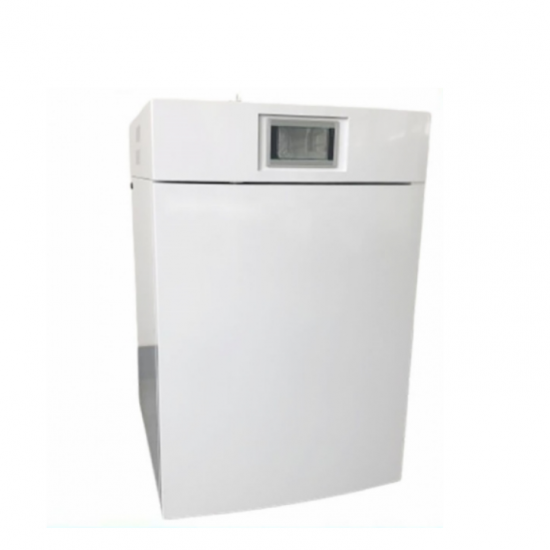

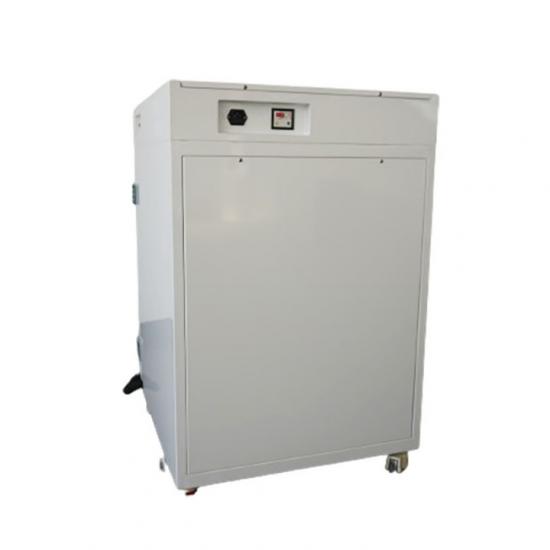

TMAX-WJ80L 160L 270L 1000L CO2 Incubator Equipped with UV Sterilization
A. Application:
CO2 Incubator is widely used in biology, chemistry and agriculture science for the culture of biological cells, tissues and bacterial.
B. Features:
a. Microcomputer control, touch screen, accurate and easy for operation.
b. Imported infrared sensor and gold-plated probes to ensure accuracy, long life time.
c. Adopting PID control technology, the CO2 concentration can be freely set within range of 0 to 20%, alarm for over concentration and concentration rise too slow.
d. Water jacket and air jacket structure are available, polished stainless-steel chamber with air duct. Housing is made of powder coated steel plate.
e. Equipped with fan for forced convection, ensuring good temperature uniformity and the balance of CO2 concentration inside.
f. When door opened, the fan and the CO2 intake valve will be automatically turned off and heating will be stopped to reduce the pollution caused by the entry of air
g. Alarm function for over-heating, lack of water (water jacket), unaspirated, ensuring the safe operation of the equipment.
h. Equipped with UV sterilization.
i. Natural evaporation for humidification to ensure the chamber can maintain good humidity.
j. Equipped with leakage protection and a spare mechanical thermostat to ensure the product work normally even the main temperature control failed.
C. Specifications:
Model |
WJ-3T |
WJ-3-160T |
WJ-3-270T |
LCI-1000T |
Chamber Volume(L) |
80 |
160 |
270 |
1000 |
Temperature Range(℃) |
RT+5~60 |
|||
Temperature Stability(℃) |
≤±0.2 |
|||
Temperature Uniformity(℃) |
≤±0.3 |
|||
CO2 Range |
0~20% |
|||
CO2 Control Accuracy |
± 0.1% (Imported sensor) |
|||
Humidity Method |
Natural Vaporization |
|||
Power Supply |
AC220V,50HZ |
|||
Device Safety |
Over Temperature safety, Leakage
breaker & Alarm Function |
|||
Convection |
Forced air convection |
|||
Testing hole on the inner door |
φ16mm |
|||
Perforated shelf (Std/Max) |
2/10 |
3/13 |
3/16 |
3/18 |
Power Rating(W) |
600 |
900 |
1400 |
2600 |
Chamber Size (W×D×H) cm |
41*44*51 |
50*51*65 |
60*60*77 |
100*100*96 |
Exterior Size((W×D×H)cm |
56*64*90 |
65*73*105 |
72*75*112 |
115.3*117.5*143.3 |
D. Options:
1. Pressure reducing regulator valve
2. HEPA filter system
3. Optional shelves
4. High-temperature sterilisation (HTS)
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
