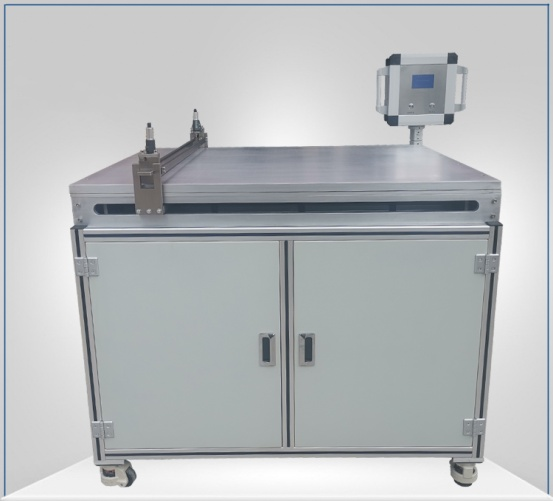

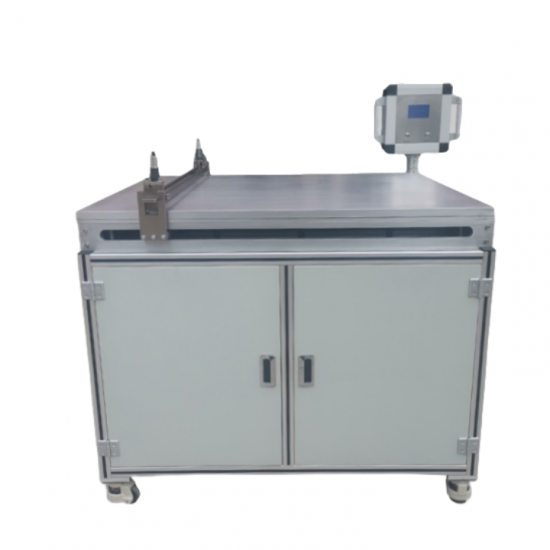

Lab Small Vacuum Heating Doctor Blade Type Coating Coater Machine

Product introduction

Since the main factors affecting the coating are the coating speed and the pressure exerted on the coating device, the coating applied by the manual is often inconsistent, especially the difference between different people, which makes it difficult to compare the test results between the samples. The company's automatic film applicator is designed to make it easy for operators to apply precise wet films on different substrates, greatly improving the reproducibility of the film.

The laboratory small coating machine all uses imported parts, and the price is cheap, and has been favored by many multinational enterprises R & D institutions, many well-known universities at home and abroad.

By controlling the speed and stable pressure to ensure the coating effect, to ensure the uniformity and stability of the coating

The biggest feature of the laboratory small coating machine can be used in paper, plastic, metal, PVC, PET, cloth, aluminum alloy plate and other flat materials for coating experiments.

Technical parameters

1. Coating accuracy: ±0.01MM

2. Coating thickness: 0-10MM scraper can be lifted and lowered

3. Speed: 5-180mm/s (non-polar variable speed)

4. Coating format: 1000*1000MM (coating length 0-1000mm arbitrary setting)

5. Control mode: touch screen control, speed, displacement precision control,

6. Doctor blade: Length: 1100MM material/stainless steel

7. Vacuum adsorption hole :φ1.0mm

8. Hole distance :20*20mm

9. Adsorption area :980*1020mm

10. Heating temperature: room temperature -150℃

11. Temperature accuracy :±5℃

12. Surface vacuum material: aluminum alloy

13. Power supply: 220V 50HZ

14. Machine volume: 1130*1120*1520 (length * width * height)

15. Machine weight: 300KG net weight

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
