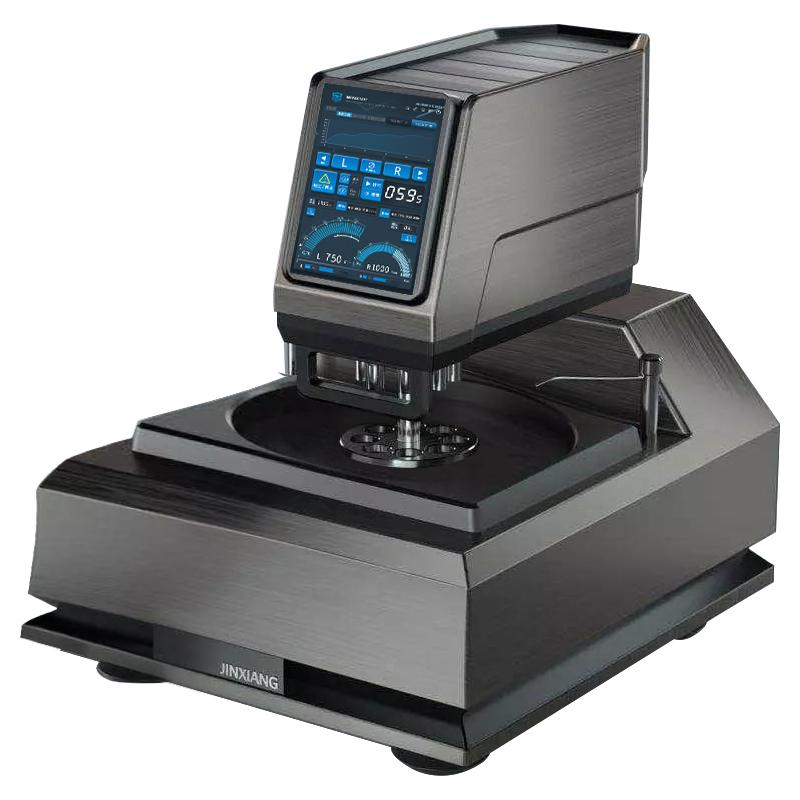

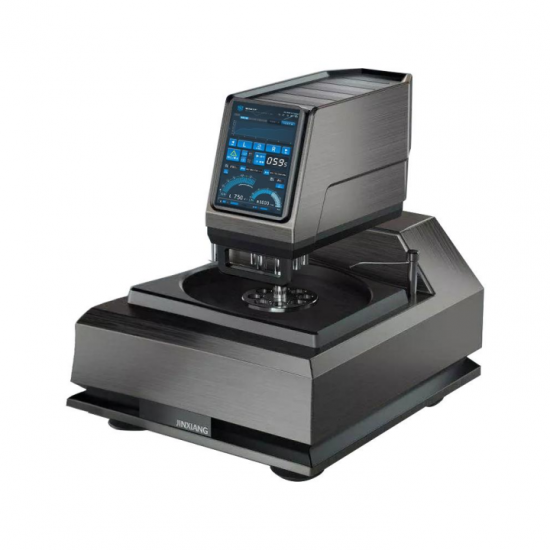

Two years limited warranty with lifetime technical supportLab Single Disc Intelligent Automatic Grinding And Polishing Machine Grinding 8 Samples at The Same Time
Application and characteristics
The machine is a single plate desktop intelligent automatic grinding machine, the machine can achieve intelligent/manual two modes, the spindle uses servo motor, industrial PLC intelligent control system, the machine adopts 304 stainless steel shell, the appearance is practical and elegant, suitable for metallographic samples for pre-grinding, grinding and polishing operations. The machine adopts electric hoist, grinding 8 samples at the same time, single plate Φ 250 mm (10 ") selling, 50-1500 r/min stepless speed regulation 750/1000 and 250/500/1250/1500 / r/min 6 file constant speed, adjustable positive &negative, pneumatic single point pressure, pressure adjustable 10 "hd touch screen, Grinding and polishing head speed 20-100r/min stepless speed regulation, adjustable and custom programming, all actions are automatically controlled by the program, the program can be freely input by the staff according to the conditions of use. In addition to the manual operation of sample clamping, all other actions of the grinding and polishing machine are automatically operated by the machine, which greatly improves the work efficiency and stability. The machine has a built-in drip device, you can freely set the drip time and pause time, greatly improve the sample preparation effect. The machine is easy to use, safe and reliable, and is an ideal sample making equipment for factories, scientific research units and laboratories of colleges and universities.
Main technical index
Body form |
Table type |
Clamping quantity |
Φ30mm*8 (special specifications sample can be customized) |
Pressure mode |
Pneumatic/single point |
Single point pressure |
0-50N |
Mode of operation |
Intelligent mode/Manual mode |
Control system |
PLC control system /10 'touch screen |
Grinding speed |
50-1500 RPM/Min (intelligent speed regulation) |
Grinding speed |
20-100 RPM/Min (intelligent speed regulation) |
Grinding parameters |
Store 100 grinding and polishing schemes |
Abrasive addition |
Dual channel intelligent automatic spray |
Charging interval |
Intelligent setting, minimum feeding interval 1S |
Spray time |
Intelligent setting, minimum spray time 1S |
Grinding time |
0-9999 seconds X2 |
Spindle motor |
400W 220V servo motor |
Grinding machine |
100W brushless DC motor |
Disk motor |
1000W servo motor |
Grinding diameter |
Φ8-40mm (special size can be selected) |
Disk diameter |
250mm (optional 200, 230, 300mm) |
Power source |
220V/50HZ/1500W |
Standard configuration |
|
Host machine |
1 Set |
Aluminum grinding disc |
1 Unit |
Magnetic grinding disc |
1 Pcs |
Anti-sticking disc |
3 Pcs |
Automatic spray system |
1 Set |
Sample holder tray |
1 Unit |
Polished flannelette |
2 Pcs |
Metallographic sandpaper |
12 Pcs |
Alumina polishing powder |
100g |
Power cord |
1 meter/strip |
Water inlet tube |
1 meter/strip |
Water outlet pipe |
1 meter/strip |
Gas inlet pipe |
1 meter/strip |
Optional: |
Silent air pump, diamond disk, special fixture. |
Common consumables (optional) |
|
Metallographic sandpaper |
180#240#320#400#600#800#1000#1200#2000#3000#4000#5000#,etc |
Diamond disk |
180#240#320#400#600#800#1000#1200#2000#3000#4000#5000#,etc |
Diamond sandpaper |
45-0.3um,etc |
Polished fabric |
Red velveteen/grey velveteen/black velveteen/pink velveteen/navy cloth/nylon/canvas,etc |
Diamond polish |
W0.5/W1/W2/W2.5/W3/W3.5/W5/W7/W10/W14,etc |
Diamond suspension |
W0.5/W1/W2/W2.5/W3/W3.5/W5/W7/W10/W14,etc |
Alumina polishing powder |
W0.5/W1/W2/W2.5/W3/W3.5/W5/W7/W10/W14,etc |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
Previous :

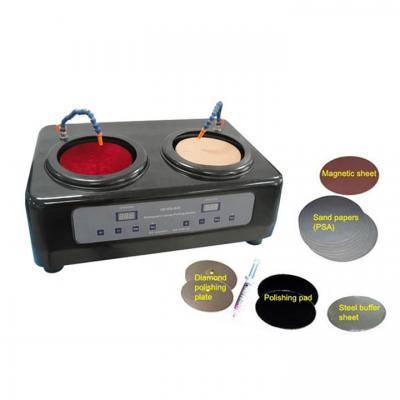

Dual 8" Platens Grinder and Polisher with Magnetic Plates & Complete Accessories - EQ-Unipol-820Next :

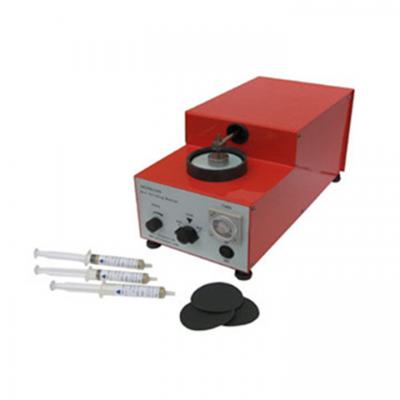

Lab Metallographic Grinding and Polishing Machine with SandpaperCategories
