Power

AC 110V and 208-240V (50/60Hz) switchable for worldwide operation.

Motor

300 W high torque DC motor with one year warranty

Features

· Digital control panel with "touch button" operation

· Water resistance

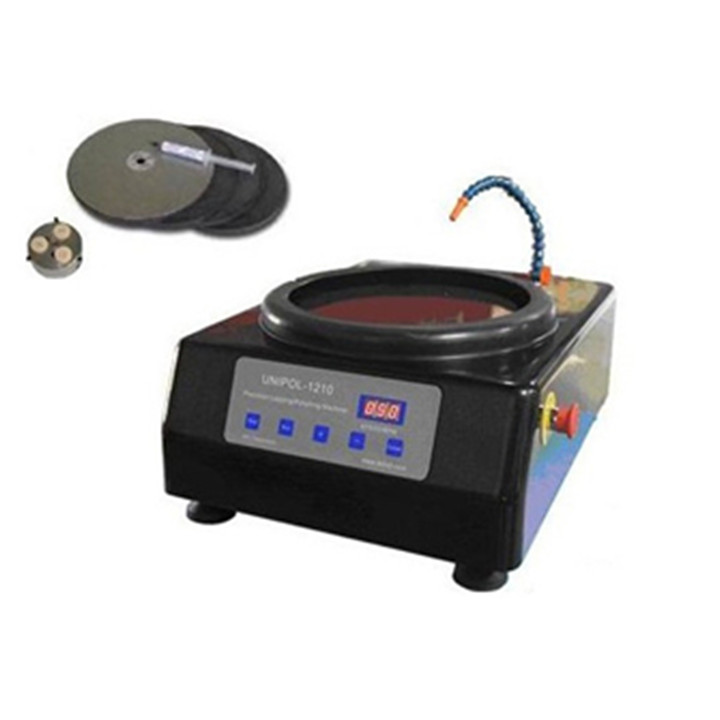

· 12" Aluminum master plate with a magnetic pad and steel buffer sheet for an easy diamond plate and sandpaper replacement

Variable speed

50 - 600 RPM with digital display

Emergency stop

Emergency stop possible

Dimensions

600 L x 460 W x 280 H (mm)

Hose Diameter

Water hoses (for water inlet and outlet) were included

· Hose I.D for the water outlet: 25mm

· Hose I.D for the water inlet: 15mm

Net weight

32 kg

Dimensions of shipment

48" x 40" x 25"

Weight of shipment

140 Lbs

Accessories

· One 12" diameter aluminum metal plate was pre-installed with a magnetic pad. (EQ-MagnetP12)

· Five steel buffer sheets (Zinc coated) for carrying sandpaper and polishing pad, which can be attached to the magnetic plate stable and easy detachment

·

Two 12" PSA Diamond Lapping plates with 600 mesh and 800 mesh separately

·

· One 12" PSA black polishing pads for final polishing

· One 10g diamond paste for testing polishing.

· Optional: Please click the link below to order diamond polishing paste or sandpaper

·

Compliance

· CE Certified

· NRTL certification is available at the extra cost

Warranty

· One year limited with lifetime support

· Rusting and damage due to improper storage condition or maintenance are not covered by warranty
