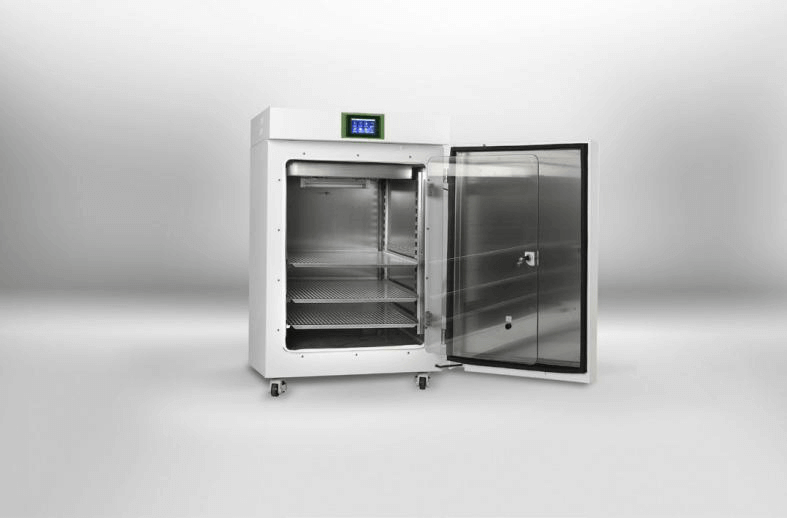

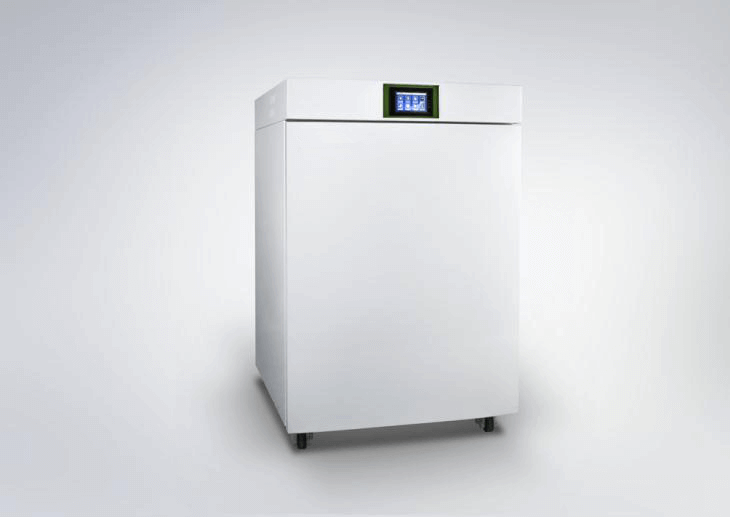

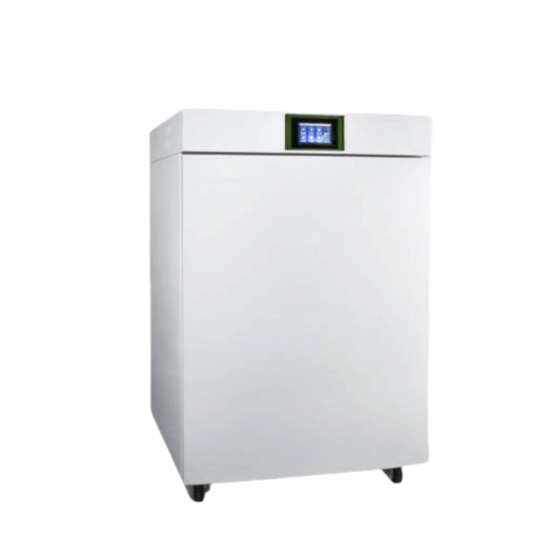

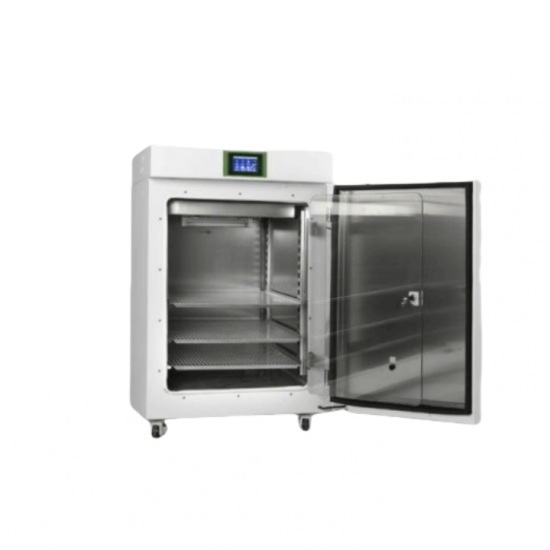

5 daysLab RT+3 to 60C CO2 Incubator used for Biological Cell, Tissue And Bacterial Culture
The CO incubator is used for biological cell, tissue and bacterial culture in modern medicine, medicine, biochemistry, agricultural science and other scientific research institutions and industrial production departments.
Features
1.Water jacket and air jacket structure are available, polished stainless-steel chamber with air duct. Equipped with fan for forced convection, ensuring good temperature uniformity and the balance of CO2 concentration inside.
2.When door opened, the fan is automatically turned off and stop heating to reduce the pollution caused by the entry of air.
3.LCT-T series products are the new generation of large screen real color touch screen and micro-computer controlled CO2 incubator newly developed by our company, which can accurately and intuitively control the incubator temperature and gas concentration, so as to solve the technical problems that the existing technology can not realize human-computer interaction, and can not provide clear data image display and parameter configuration interface. It is safe and reliable. It has the characteristics of simple and intuitive, convenient operation, and uses three probes to control the box temperature, water temperature and door temperature respectively to ensure the high accuracy and small fluctuation. (the air jacket type is two probes, respectively controlling the main body temperature and the door temperature).
5.It has many protection functions, such as over temperature, water shortage (only water jacket type), gas cut-off, etc., to ensure the safe operation of the equipment.
6.Equipped with sterile air filtration devices and UV light system to reduce pollution.
7.Natural evaporation for humidification, so that the chamber can maintain good humidity and the humidity can be displayed on screen.
8.Adopt gilded infrared probe in the detection of CO2 for precise measurement. The sensor life expectancy is up to 15 years. With alarm function for over concentration, slow concentration rising and unaspirated. The CO2 concentration in the working room can be set arbitrarily within the range of 0-20%, and its control adopts microcomputer data analysis and intelligent P.I.D control. It has over concentration, too slow concentration rise and gas cut-off alarm.
9.Equipped with leakage protection.
10.It is equipped with auxiliary temperature controller to ensure that the machine can work normally when the main temperature control is out of control.
11.90 ℃ high temperature disinfection.
SPECIFICATIONS
Model |
TMAX-LCI-85T |
TMAX-LCI-165T |
TMAX-LCI-270T |
Chamber Volume |
85L |
165L |
270L |
Temperature Range |
RT+3~60℃ |
||
Display Resolution |
0.1℃ |
||
Temperature Stability |
≤±0.2℃ |
||
Temperature Uniformity |
≤±0.3℃ |
||
CO2 Concentration Control Range |
0~20%
Imported infrared sensor, CO2 control accuracy±0.1% |
||
CO2 Control Resolution |
±0.1%(imported sensor) |
||
Humidity Method |
Natural Vaporization |
||
Power Supply |
AC220V,50HZ |
||
Power Rating |
600W |
900W |
1400W |
Chamber Size (W×D×H)cm |
40×42.5×50 |
50×51×65 |
60×60×77 |
Exterior Size (W×D×H)cm |
55×57×82 |
65×73×105 |
72×75×112 |
Shelves(standard/maximum) |
2/10 |
2/13 |
3/16 |
Optional parts |
1. Automatic humidification system 2. 140 ℃ high temperature sterilization |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
