Lab High-end Single Jar Type Vertical Fine Grinding Ball Mill Machine

A. Brief introduction:

Planetary ball mill is a necessary device for mixing, fine grinding, small sample preparation, nanomaterial dispersion, new product development and small batch production of high-tech materials. The product is small in size, full-featured, high in efficiency and low in noise, it is the ideal equipment for scientific research units, colleges and universities, enterprise laboratories to obtain micro-particle research specimens (four samples can be obtained at the same time for each experiment), equipped with vacuum ball milling jars, it can be used to grind specimens under vacuum. It is widely used in geology, minerals, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, cosmetology, environmental protection and other departments. The rotating speed, forward and reverse alternating time, and total grinding time can be set according to the process requirements.

B. Working Principle:

In a turntable equipped with a ball mill jar, when the turntable rotates, the ball mill jar in the main disk around the axis of the rotary at the same time and around its own axis for planetary rotation movement, the grinding balls in the jar and the material in the high-speed movement of mutual collision, shear and friction, to achieve crushing, grinding, mixing and dispersion of the material purpose. The imbalance generated by a single jar can be adjustable compensation through the counterweight device, the equipment can be used dry, wet two methods of grinding different particle sizes, materials of various types of solid particles, suspensions and pastes, the minimum particle size of the ground product can be up to 0.1 microns.

C. Technical parameters:

D. Product features:

a. Equipment through professional appearance design, shell using high precision laser cutting, CNC bending molding, generous and exquisite, high-end stable;

b. The planetary disk and structural components are processed by CNC processing technology, and the nitriding metal heat treatment process ensures that the rotating shaft is wear-resistant to prevent shaft breakage. The transmission gear is made of non-metal and metal combination precision gear with high temperature and wear-resistant resistance, and the gear box is soaked with liquid oil for lubrication, which is safe and reliable, low noise, no pollution and low loss.

c. Equipped with induction light device: the working light is controlled by infrared human body sensor, people come to light, people go light off, which is convenient and energy saving.

d. The ball grinding jar adopts the planetary movement, the ball grinding efficiency is high, the particle size is fine;

e. The inverter has undervoltage and overcurrent protection, which can protect electrical parts such as motors.

f. The cover of the machine adopts the hydraulic support rod to cover, and the electromagnetic safety lock and the latch type limit switch ensure the normal operation of the equipment and the personal safety of the operator;

g. The glass of the window is made of double-layer vacuum tempered glass, which not only soundproofes and reduces noise, but also ensures personal safety. The ball grinding cavity is inlaid with sound-absorbing cotton;

h. Electrical control part through the design of independent control box equipment, 5 sets of exhaust fans forced air heat dissipation, composed of one in one out of the internal circulation heat dissipation system;

i. Low center of gravity, stable performance, compact structure, easy operation, safe and reliable, low noise, no pollution, small loss;

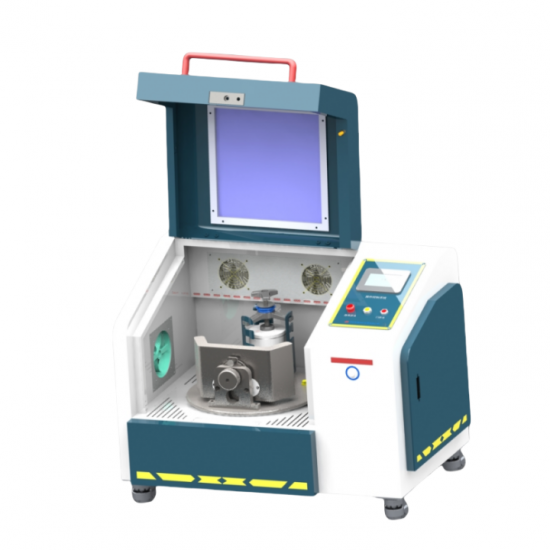

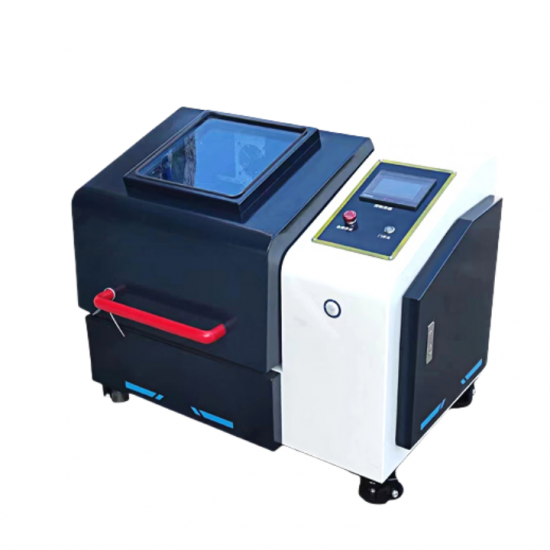

E. High-end single jar vertical planetary ball mill picture

Three-claw self-locking device (the same model of German flying)

F. High-end single jar vertical planetary ball mill equipment features highlights

Program control interface
