Lab Digital Display Speed Controlled Doctor Blade Type Coater Equipped with Wire Bar

Lab Digital Display Speed Controlled Doctor Blade Type Coater Equipped with Wire Bar

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

  • Item No.:

    TMAX-ZY-TB-B
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

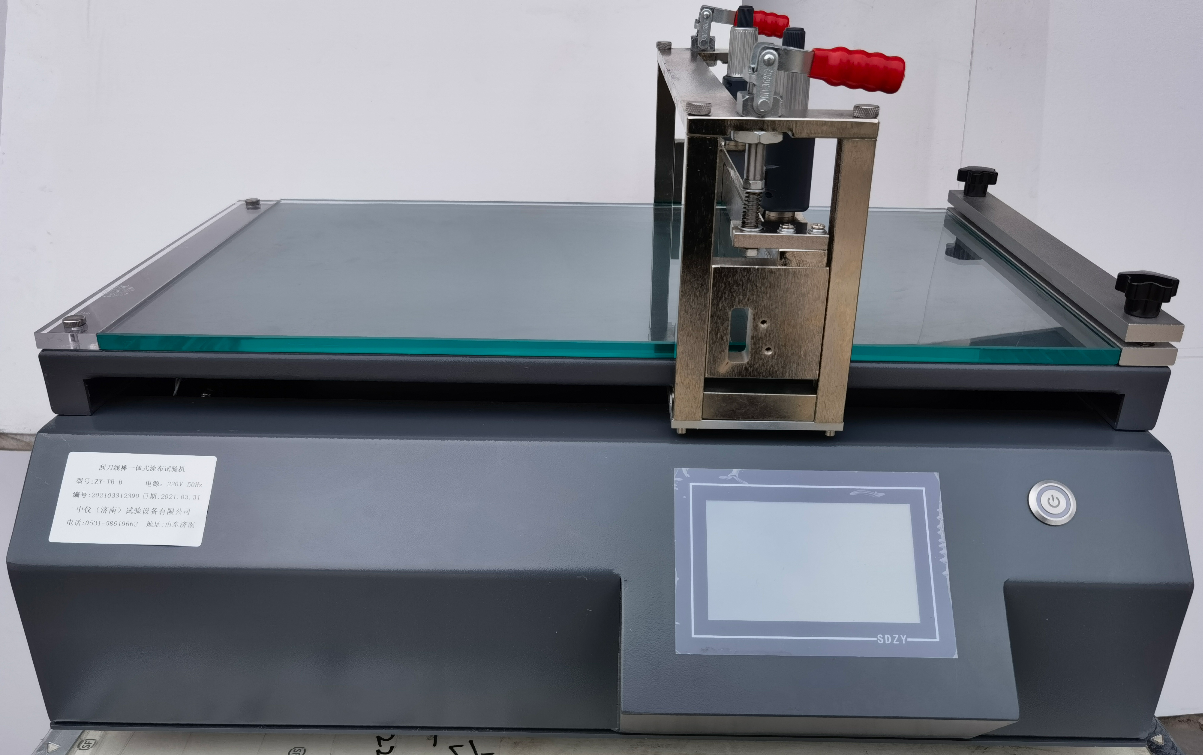

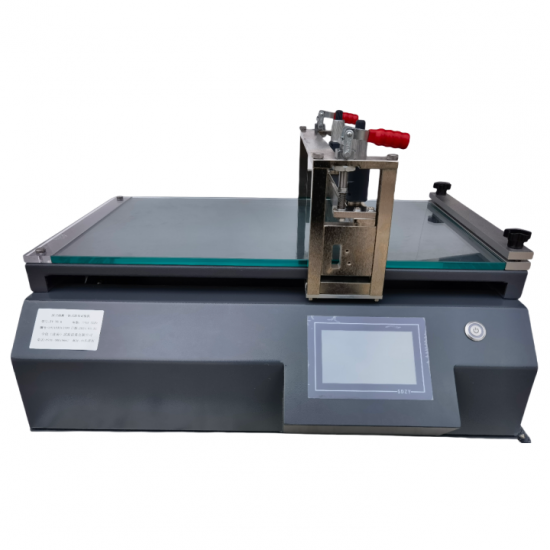

Lab Digital Display Speed Controlled Doctor Blade Type Coater Equipped with Wire Bar






Introduction

The ZY-TB-B1 wire bar and doctor blade integrated coating tester uses all imported parts at a low price, and has been favoured by many multinational research and development institutions, many famous universities and research institutes at home and abroad. By controlling the speed and stable pressure to ensure the effect of coating and gluing, to ensure the uniformity and smoothness of the coating and gluing



Product description

As the main factors affecting the coating are the speed of application and the pressure applied to the applicator, there are often inconsistencies in the coating applied by hand, especially between different people, which makes it difficult to compare test results between samples. Our automatic film applicator has been carefully designed to make it easy for the operator to apply accurate wet films on different substrates, greatly improving the reproducibility of the coating.



Controlled speed and constant pressure ensure uniformity and smoothness of application.

The most important feature of the small laboratory coater is that it can be used for coating experiments on paper, plastic, metal, PVC, PET, fabric, aluminium plates and other flat materials.



Technical parameters

Doctor blade accuracy: 0.003mm

Coating thickness: 0-5mm doctor blade can be lifted

Speed: 2-180mm/sec

Coating surface: 300*400mm

Coating time: digital display, different lengths, different speeds, time precision control

Doctor blade material: stainless steel (can be set according to the digital display micrometer coating thickness)

Power supply: voltage 220V 50HZ

Power: 120W

Machine volume: 620*430*450 (L*W*H)

Machine weight: 52KG net weight


Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
