Lab Automatic Precision Grinding Polishing Machine

Lab Automatic Precision Grinding Polishing Machine

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna


  • Item No.:

    TMAX-UNIPOL-802
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

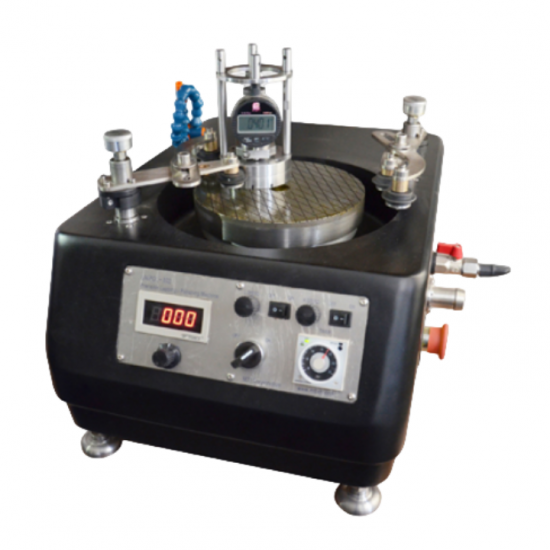

Lab Automatic Precision Grinding Polishing Machine


Polishing Machine

Product Description:

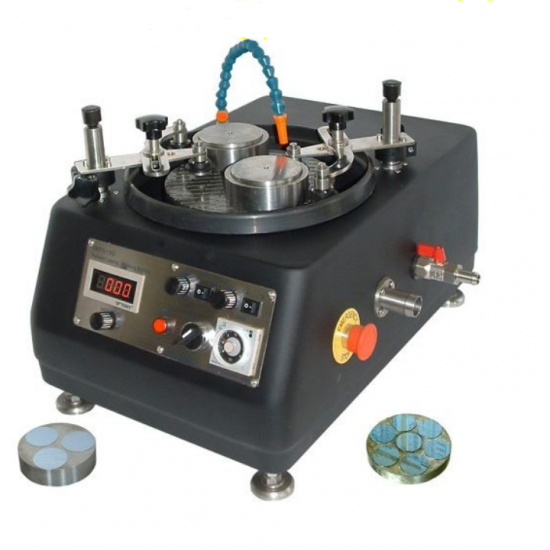

UNIPOL-802 automatic precision grinding and polishing machine is used for grinding and polishing sample making of crystals, ceramics, metals, glass, rock samples, mineral samples and other materials, and is the most ideal grinding and polishing equipment for scientific research and production experiments. The machine is equipped with Φ203mm grinding and polishing disc and two processing stations, which can be used to grind and polish the plane of ≤Φ80mm. If configured with appropriate accessories, it can mass produce high quality plane grinding and polishing products.



Installation conditions:

This equipment is required to be used under 1000m above sea level, 25℃±15℃ and 55%Rh±10%Rh humidity.

1.Water: The equipment is equipped with an upper water port and a lower water port, customers need to connect the tap water cooling and lower water drainage.

2.Electricity: AC220V; 50Hz, must have good base.

3.Gas: None.

4.Bench: size 800mm (L) * 600mm (W) * 700mm (H), load-bearing capacity of 200kgs or more.

5.Ventilation device: not required.



Main features:

1.Super flat polishing disc (flatness is less than 0.0025mm per 25mm×25mm).

2.Ultra-precise rotation axis (pallet end jump is less than 0.01mm).

3.With two processing stations.

4.The spindle rotation is controlled by stepless speed regulation, and equipped with digital display meter to display the rotation number in real time.

5.With timer, it can accurately control the working time (between 0-300h).

6.It can be equipped with automatic drip feeder or circulation pump, which makes grinding and polishing more convenient and quick.



Technical parameters:

1. Power supply: 110/220V

2. Power: 275W

3. Grinding and polishing disc speed: 0-250rpm

4. Work station: 2

5. Support arm swing times: 0-9 times / min

6. Tray end jump: 0.008/180mm

7.Grinding and polishing trayΦ203mm

8. Load trayΦ80mm



Product specificationSize580mm×420mm×350mmWeight68kg



Standard Accessories













1

Cast iron discs

1 pc



2

Cast aluminum tray

1 pc



3

Load tray

2 pcs



4

Trim ring

2 pcs



5

Polishing pad

1 for each



6

(Abrasive leather / synthetic leather / polyurethane)

0.5kg



7

Corundum abrasive powder

4 pcs



Optional Accessories

1.SKZD-2 drip feeder

2.SKZD-3 dripper

3.SKZD-4 automatic dripper

4.YJXZ-12 stirring circulation pump

5. "00" level precision thickness gauge

6.GPC-50A precise grinding and polishing control instrument

7.Ceramic grinding disc

8.Glass grinding disc

9. Magnetic resin diamond grinding discs





 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
