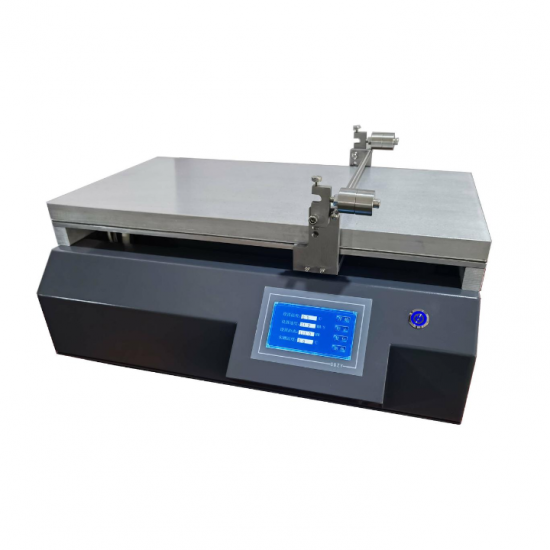

Lab 180C High Precision Benchtop Wire Bar Coater with Heating Function

Touch Lab ZY-TB wire bar coating tester is the latest upgrade for coating precise wet film on different substrates and is carefully designed to repeatedly and continuously prepare smooth, flat and flawless test samples.

Newly upgraded, touch screen control, user-friendly human-machine interface;

Precise control of travel speed and running distance;

Newly upgraded hardware, more stable operation.

Uses:

As the main factors affecting the coating are the speed of the coating and the pressure applied to the applicator, the coating applied by hand is often inconsistent, especially when the difference is greater between different people, which makes it difficult to compare test results between samples. Our automatic film applicator allows the operator to easily apply precise wet films on different substrates, greatly improving the reproducibility of the coated film.

Main parameters:

Coating rate: 2 to 180mm/s Arbitrary setting stepless speed adjustment

Coating method: coating bar coating

Bar accuracy: 0.001mm

Coating thickness: according to the coating bar type

Effective coating area: 300mm wide, 400mm long

Specimen clamping: Start end clamp

Heating temperature range: room temperature - 180°C

Temperature accuracy: ±2°C

Total power: 1200W

Power supply: 220V 50Hz

Machine weight: 48KG

Product features:

Precise control of test speed and distance, higher coating precision

Touch control operation, humanized human-machine interaction interface

New hardware upgrade, more stable operation.

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
