Lab 1700C 12L Electric Heating Muffle Furnace with B Type Thermocouple

Lab 1700C 12L Electric Heating Muffle Furnace with B Type Thermocouple

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna


  • Item No.:

    TMAX-S​X2-9-17TP
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Min order:

    2
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

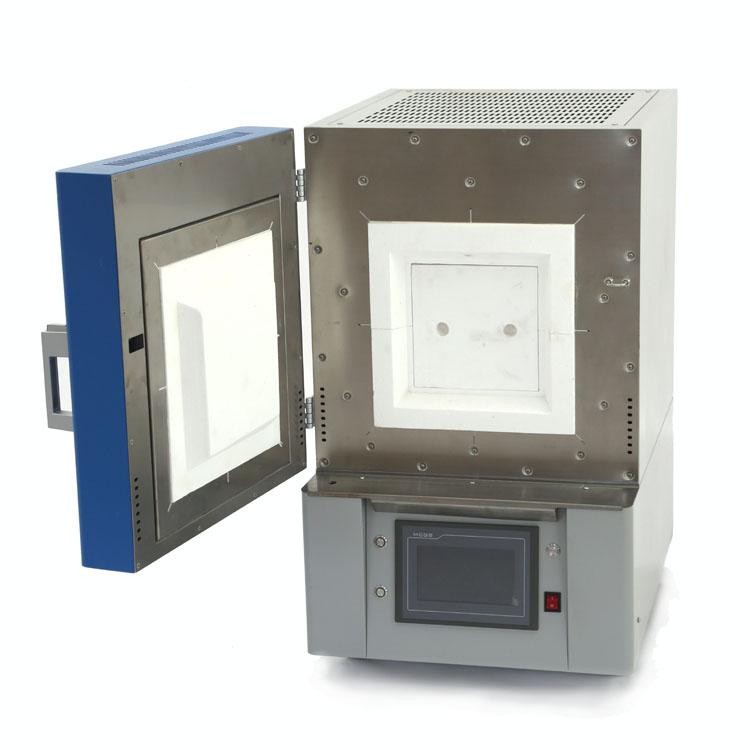

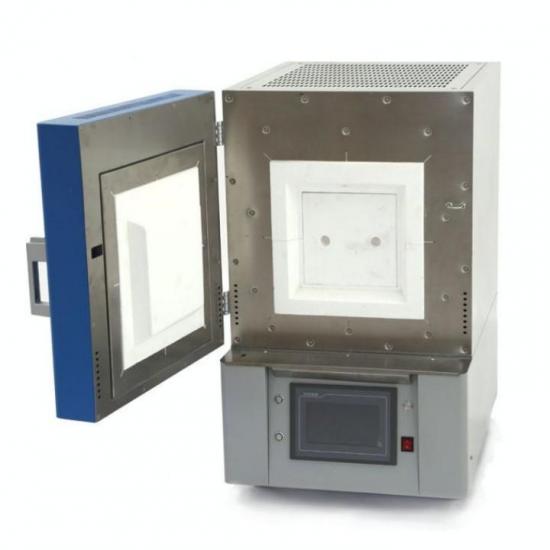

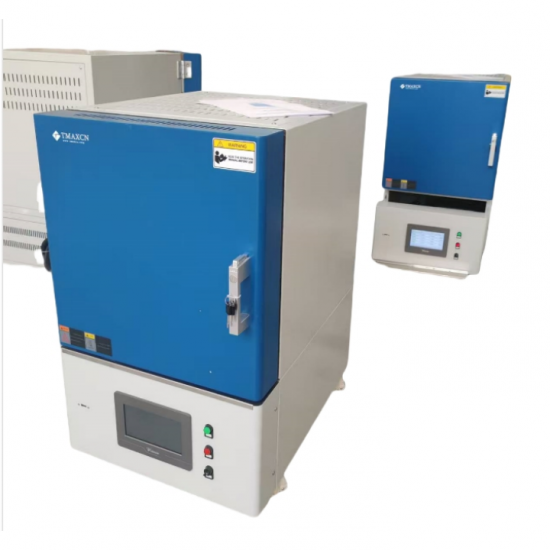

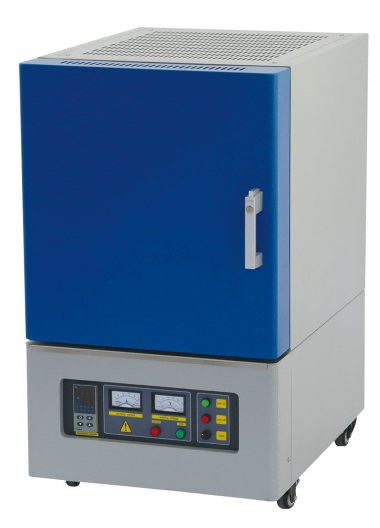

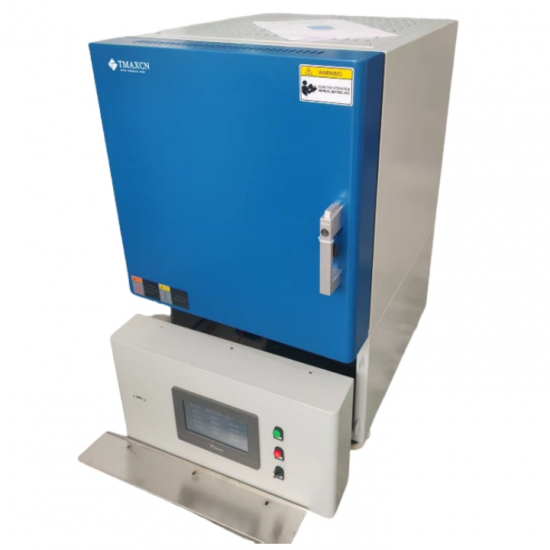

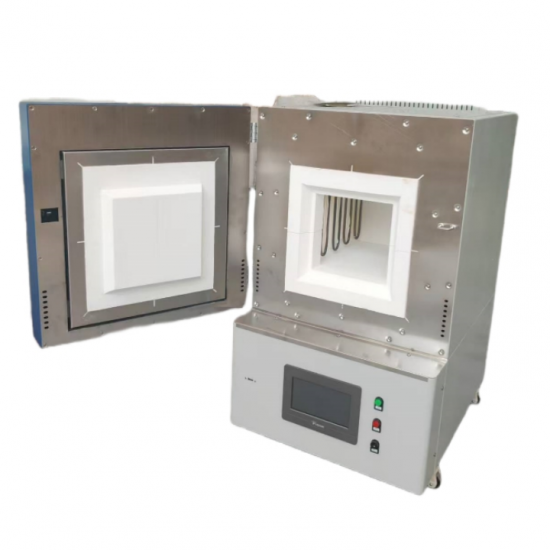

Lab 1700C 12L Electric Heating Muffle Furnace with B Type Thermocouple

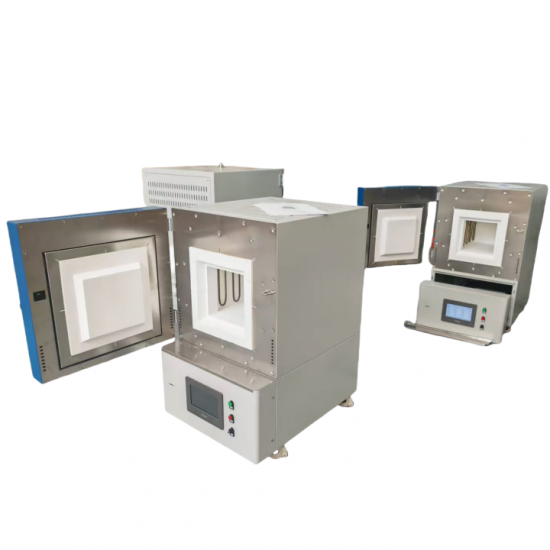

Muffle Furnace


Main parameter

PN: SX2-9-17TP

Max.Temp: 1700C

Working temperature:0-1550C

Chamber size:D300*W200*H200mm 9kw

Voltage: 380V 2 phase

Heating rate:0~10  Degree/Minsuggest 5C/min

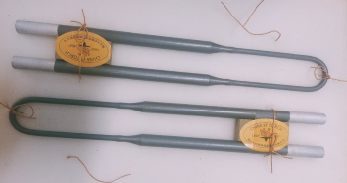

Heating element: Mosi2 heating element

ThermocoupleB type

Temperature accuracy: ±1℃

Packing size&weight: 860*605*1120mm195KG

Furnace Chamber material

Adopt the most advanced light alumina ceramic fiber in the world, with excellent thermal insulation effect, light weight, high temperature resistance, cold and heat resistance, no crack, no crystallization, no slag, do not worry about pollution of the fired products. The energy saving effect is 60-80% of the old electric furnace.

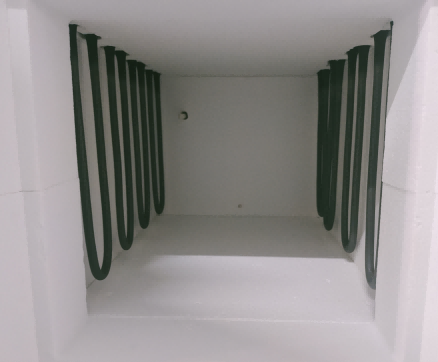

 Furnace chamber design

Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace.

Furnace shell  structure

Electric furnace shell matrial is stainless steel materials,adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury.

Sealing way

Furnace door adopts integral plane milling, silica gel strip embedded seal, with strong sealing, easy to open and close furnace door

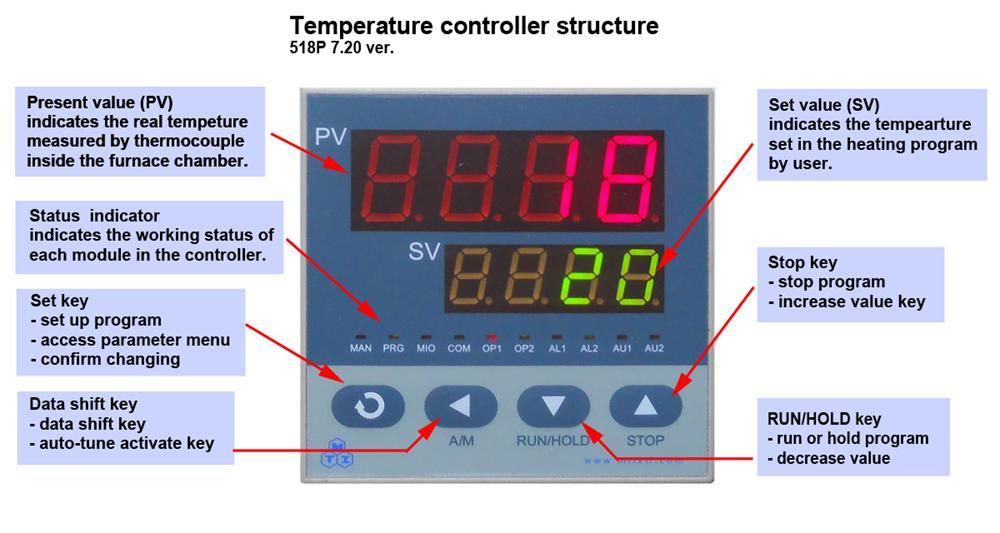

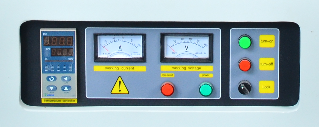

Temperature controlling

Adopt international advanced temperature controller, with 30 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty.

Temperature control security

The electric furnace adopts integrated circuit, module control, double circuit protection (partial temperature protection, ultra-high temperature protection, coupling protection, overcurrent protection, overpressure protection and other protection functions) to make the electric furnace work stable and reliable, safe.

Warranty

One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple damaged by user.

Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.

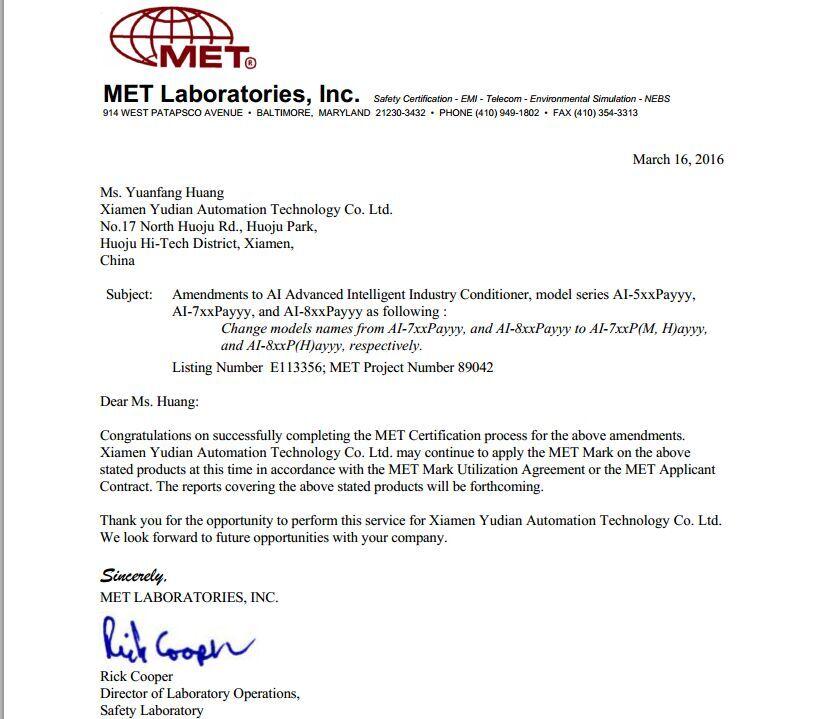

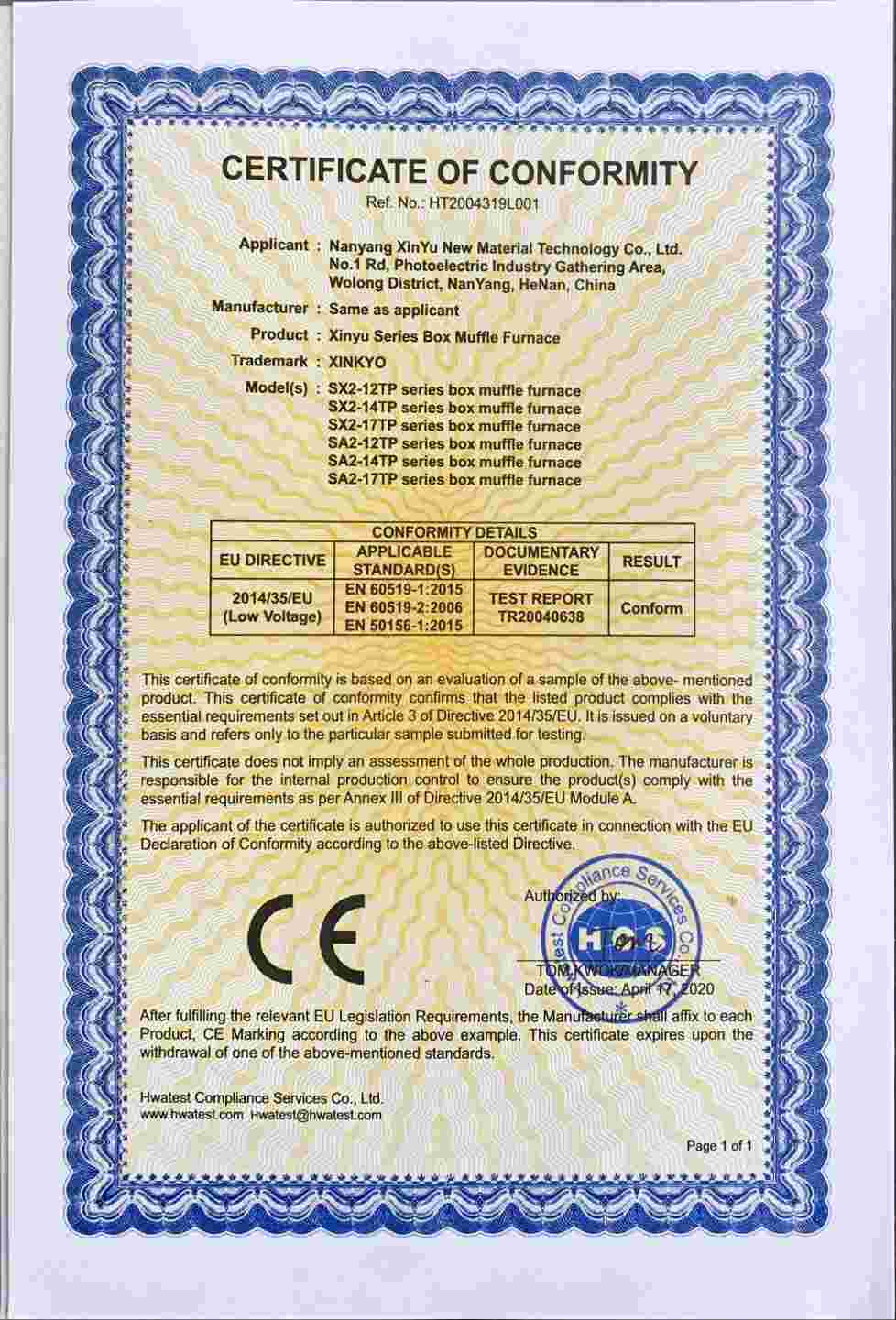

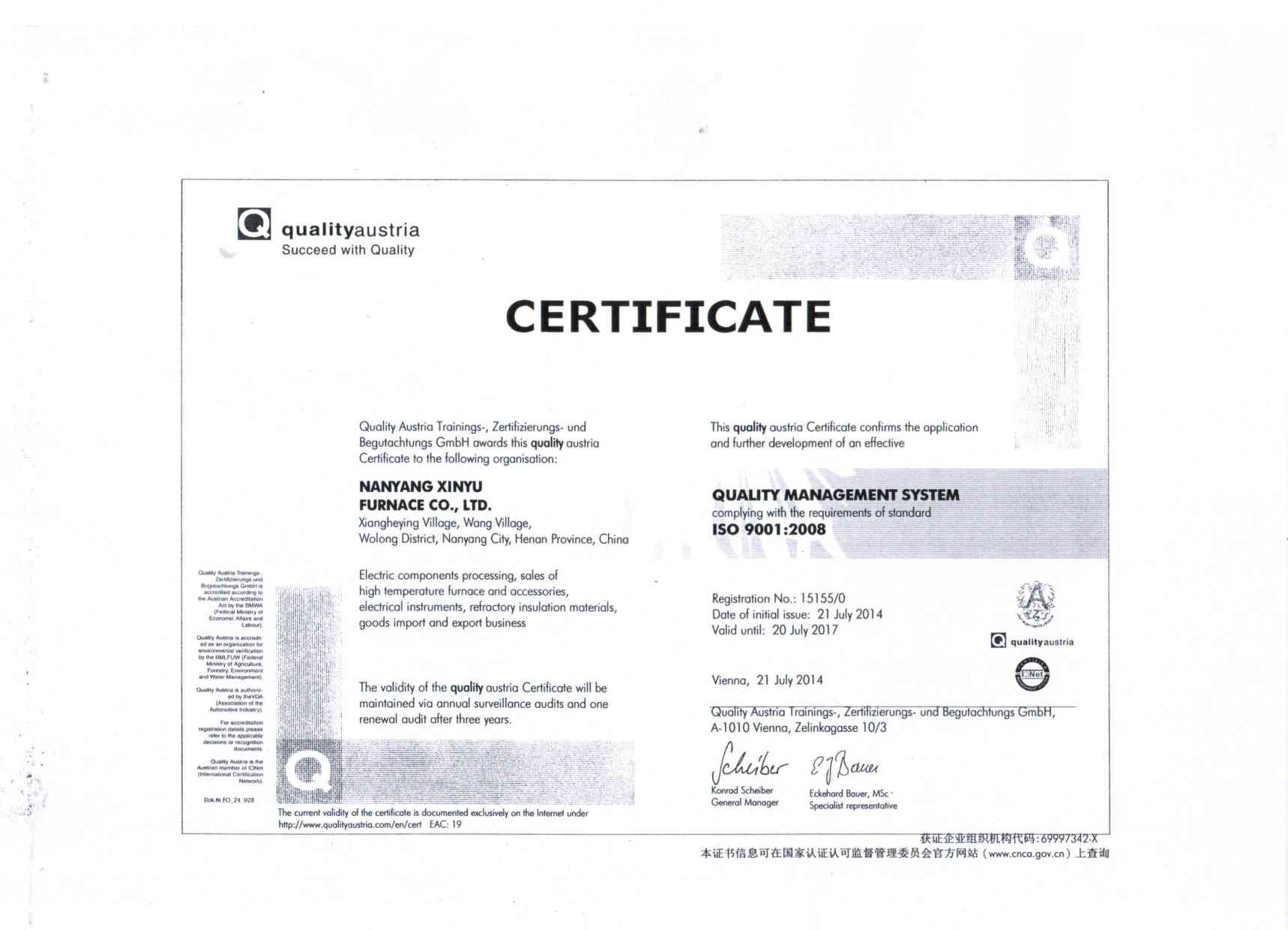

Certificates: CE,ISO&UL

Standard Package Accessories:

Electric Furnace

1 set



High temperature gloves

1 pair



Heating element

2pcs

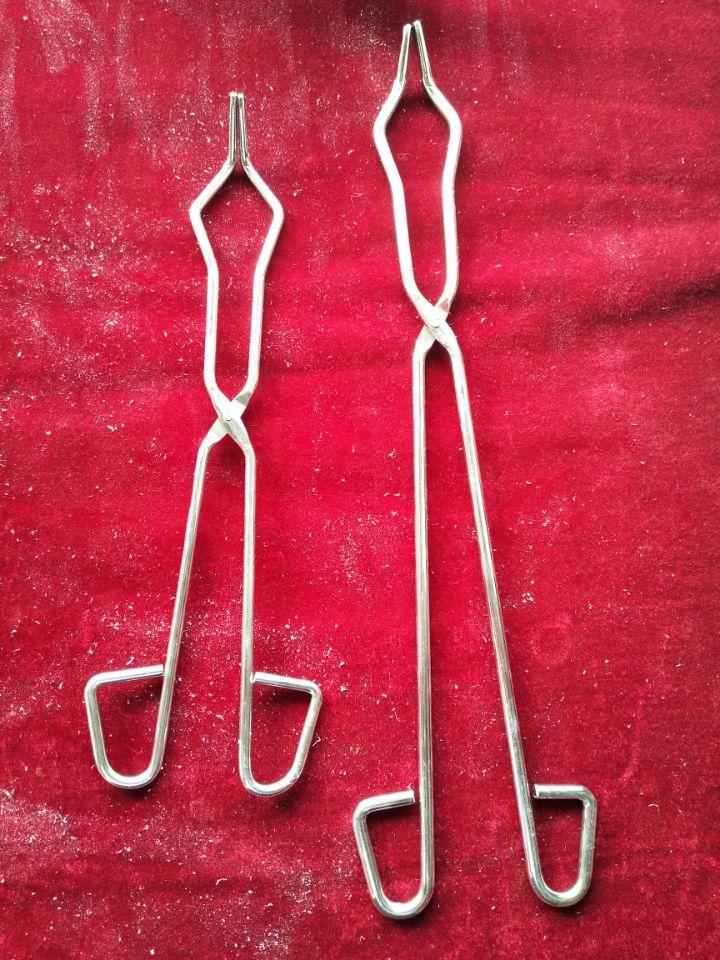

Crucible clip

1 pc



User manual

1 book



Door block

1 pc


 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
