Lab 1400C Anti-corrosion Atmosphere Box-type Furnace for Sintering Lithium Battery Ternary Materials

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-1400Anti-corros
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

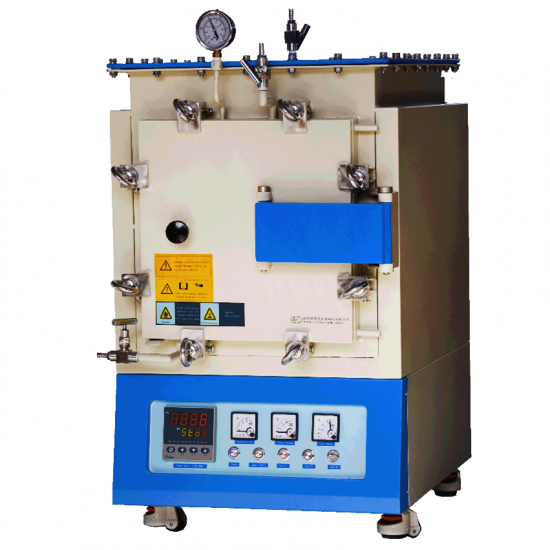

Lab 1400C Anti-corrosion Atmosphere Box-type Furnace for Sintering Lithium Battery Ternary Materials

This atmosphere box furnace has a corundum tube on the heating element jacket to effectively protect the heating element. It is suitable for the experiment with corrosive gas, especially for the sintering of lithium battery ternary materials.

Detailed technical parameters

Model	GF14Q
Power	13KW
Chamber size（mm）	400X300X300
Dimensions （mm）	1260960970mm
Supply voltage	380V
phase	single phase
heating element	silicon carbide rod
control mode	Adopt the temperature control meter of yu - electric program 1, 30-stage program temperature control intelligent PID adjustment. 2, with over-temperature protection When the electric protection furnace is over-temperature or broken, the electric furnace heating circuit is automatically cut off, (when the electric furnace temperature exceeds 1720 degrees or the thermocouple is blown, The AC relay on the main circuit will be automatically disconnected, the main circuit will be disconnected, the ON light on the panel will be off, the OFF light will be on, and the electric furnace will be limited. 3, with 485 communication interface (standard when purchasing software) 4, with power-off protection function, that is, when the power is turned off after the power is turned off, the program does not start from the starting temperature, but rises from the power-off time. 5. The instrument has the function of self-setting temperature (replacement of imported instruments, additional charge is required, optional) FP93 temperature controller European instrument Touch screen instrument
Chamber material	1600 alumina polycrystalline fiber can be imported from Japan (additional payment is required when selecting imported furnace materials)
Heating element	The silicon carbon rod is coated with corundum tube to protect the heating element
Control accuracy	+/- 1℃
Trigger	· Phase-shifted trigger
Electric appliance	Zhejiang chint
Silicon controlled	106/16ESEMIKRON
Max. temp	1400℃
Rated temp	1350℃
Heating rate	≤20℃/ Min(can be modified upon request)
Recommended heating rate	≤10℃/ Min
Thermocouple Type	S type
Certification	CE
Ambient surface temperature	≤45℃
