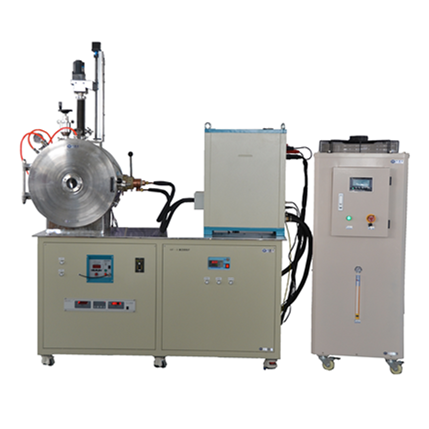

Lab 1-5 KG Vacuum Melting Furnace With Molecular Pump

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-VIF
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

Lab 1-5 KG Vacuum Melting Furnace With Molecular Pump

Vacuum induction levitation melting furnace is to split water cooled copper crucible put in a strong alternating magnetic field, using induction eddy current heating the water cooled copper crucible metal melting, rely on electromagnetic force makes the molten metal does not have close contact with water cooled copper crucible.

This prevents the crucible from being contaminated with the smelting materials, which can melt the highly purified metal.

The liquid alloy in the water-cooled copper crucible can also be injected into the ingot mold by rotating the molten metal.

The vacuum suspension melting furnace is suitable for the smelting of active metals such as titanium zirconium and rare earth materials, and the smelting and precision casting of titanium alloys.

It is mainly used in the production of high purity metal materials, semiconductor monocrystalline materials, high melting point alloys and 3D printing.

Detailed technical parameters

ZLF Vacuum Induction Melting-VIM	Model		VIF-1
	Maximum melting weight (calculated by iron liquid)		500G
	Maximum heating temperature		2200 ℃
	Floating power supply	oscillation frequency	15-30KHZ
		Max Input/ Output Power	60KW/ 54KW
		PSU	Suspended special power supply
		Cooling water requirement	PSU≥0.2MPa crucible≥≥0.35MPa
		melting rate	10-15min
		induction coil	Special coil for suspension furnace
		input voltage	3 PHASES 380V 50 HZ
		crucible	Suspended special water-cooled copper crucible
	Cavity vacuum degree (molecular pump unit)		< 5X10 -3Pa
	Broken even protection and display		Yes
	over-temperature protection		Yes
	Over-current protection		Yes
	Under pressure protection (Water pressure)		Yes
	Temperature Stabilizing		PID
	Temperature detection mode		infrared thermometer
	Crucible can dump rotation Angle		0-360°
	Whether the vacuum chamber can be connected with water cold crucible		yes
	Observation window size		Dia 90mm
	Vacuum Unit	Unit input voltage		380V /220V
		Bellow		KF40X1000
		Vacuum baffle valve		KF40
vacuum pump TRP24		Power		0.75KW
		Voltage		380V
		rotate speed		1450rpm
		Inlet Diameter		KF25/KF40
		pumping rate of the front pump(L/S)		6
		ultimate pressure		4X10 -2Pa
compound vacuum gauge		Model		ZDF
		PSU		220V 55W
		control precision		± 1%
		pressure range of vacuum gauge		10-5 -10 5 Pa

diffusion pump TK200	Voltage	220V
	Power	1500W
	Extreme vacuum (when it's not leaking)	10E-5
	Inlet interface	DN200
	Outlet interface	DN40
	Injection of oil	0.5L
	pumping rate(N2)	1500L/S
