Hydraulic Manual Coin Cell Crimper for CR2032 2025 2016 Button Cell Assembly

Sales Manager:David

Wechat:18659217588

Item No.:
TMAX-JK-KF20-TC
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Market price:
$1880
Price:
$980
Price range:
980 - 1050/$1
Product origin:
China
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

Hydraulic Manual Coin Cell Crimper for CR2032 2025 2016 Button Cell Assembly

1TMAX-JK-KF20-TC coin cell crimper is a newly designed manual coin cell crimping machine with lighter weight. It is both a coin cell assembly machine and a coin cell disassembling tool.

The coin cell crimping machine is suitable for sealing various types of coin cells such as CR2032, CR2025, and CR2016 with adjust the sealing line and without changing the die.It can also crimp CR2325, CR2450, AG3, AG5 and other special size cases with optional die sets.

2 In addition,customers can easily replace the original die for disassembling purpose.

3 It can also be worked in glove box with smaller volume.

Machine model	Hydraulic Coin Cell Crimping Machine
Standard Crimping Die	1 One set of crimping die for CR2032,CR2025,and CR2016 2 Optional die available from product option for crimping CR2325,CR2450,AG3,AG5 3 PTFE Anti-Corrosion Core prevents coin cells from being short circuited
Advantages	1 The lower die with high precision positioning ring spacing, control batteryseal height 2 The upper die is provided with a sealing cup inner screw spring mechanism,ensure in case the battery sealing clamp can not be removed,only the top screw clockwise and the button battery out. 3 By using aluminum alloy and high strength steel, surface after the environmental protection electroplating processing will never rust
Rocker Pressure	<6kg
Max Pressure	200kg/cm2 (The hydraulic drive pressure up to 8T, the battery sealing no vibration, no leakage)
Working Pressure	80-100kg/cm2
Dimension(LWH)	232170330mm
Weight	28kg
Shipping Weight	35kg
Warranty	One Year limited warranty with lifetime support

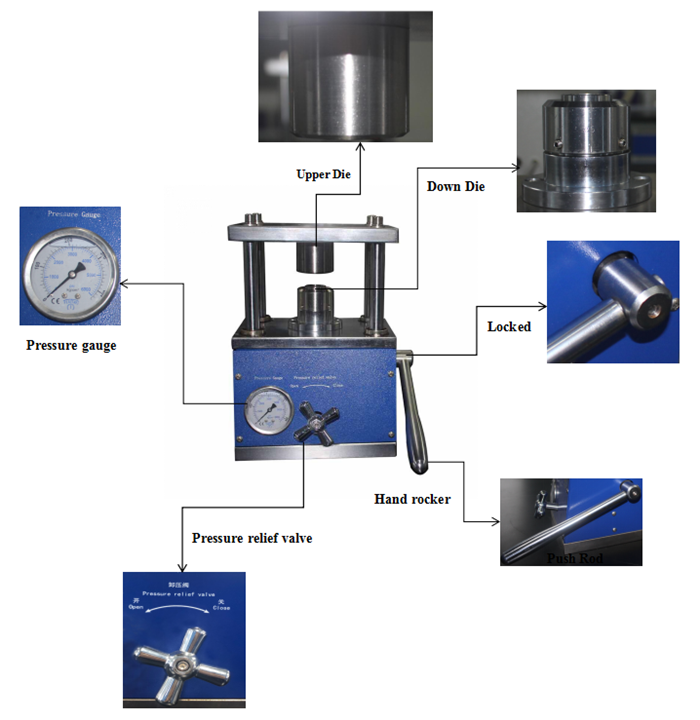

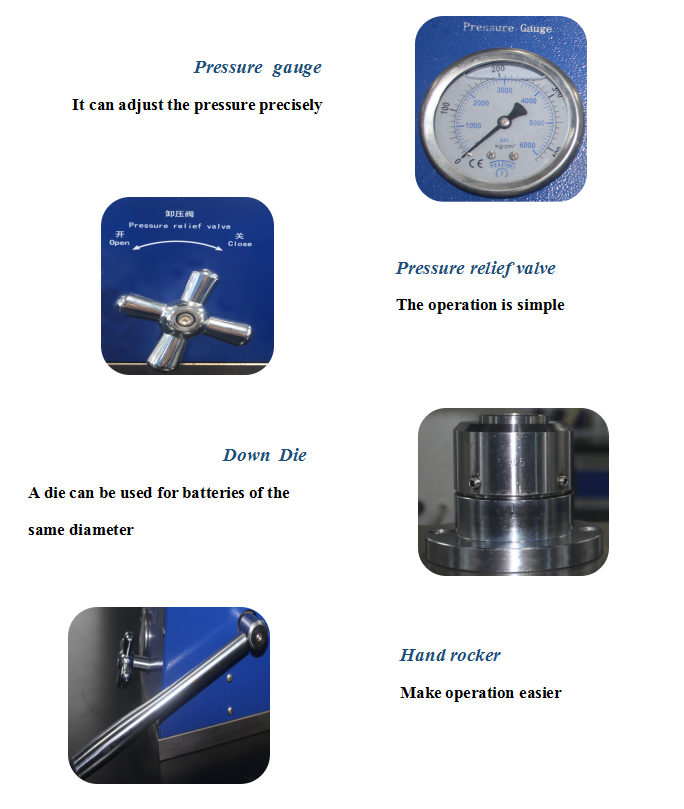

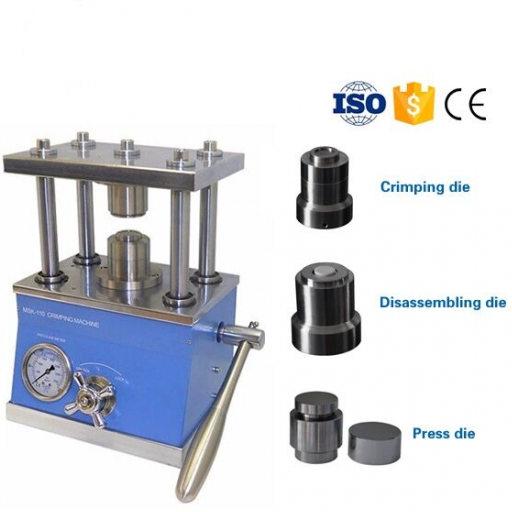

Reference Pictures	1. Adjusted sealing die for CR2016，2015,2032 coin cell 2. Optional die for other model battery and PTFE Anti-Corrosion Core
