Stainless Steel Split Test Cell For Lithium Air Battery Research

Stainless Steel Split Test Cell For Lithium Air Battery Research

Sales Manager:David

Email:David@tmaxcn.com

Wechat:18659217588


  • Item No.:

    TMAX-EQ-STC-LI-AIR
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Market price:

    $400
  • Price:

    $350
  • Price range:

    350 - 400/$1
  • Product origin:

    China
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

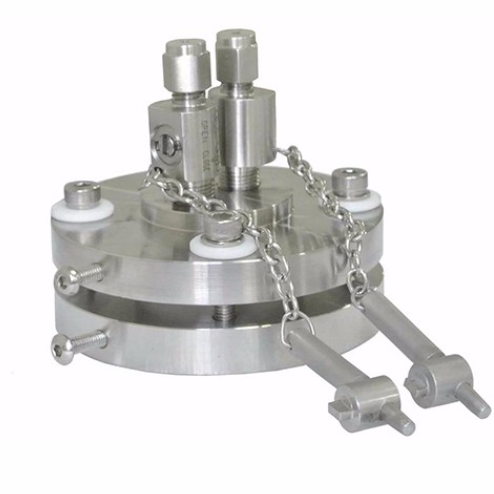

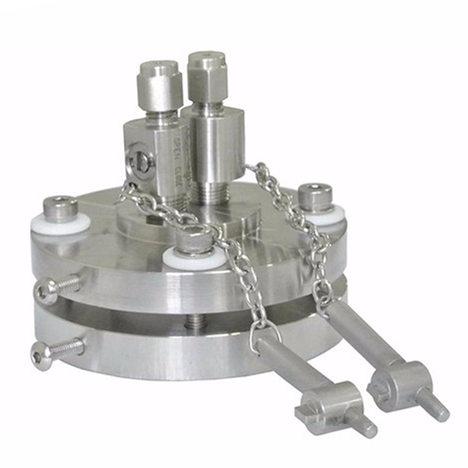

Stainless Steel Split Test Cell For Lithium Air Battery Research


The EQ-STC-LI-AIR is Split Test Cell for Lithium Air Battery Research. You can control air flow pressure and test various anode and cathode material at easy

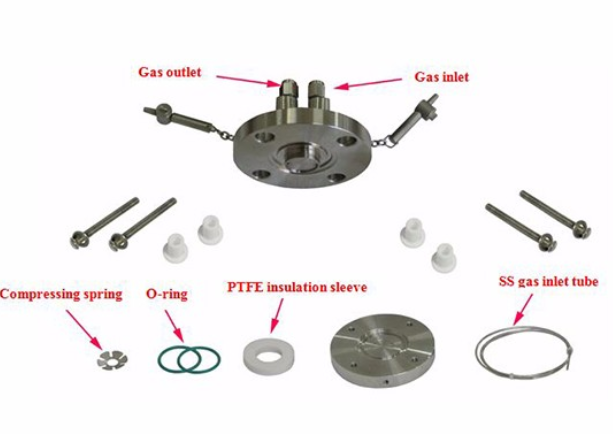

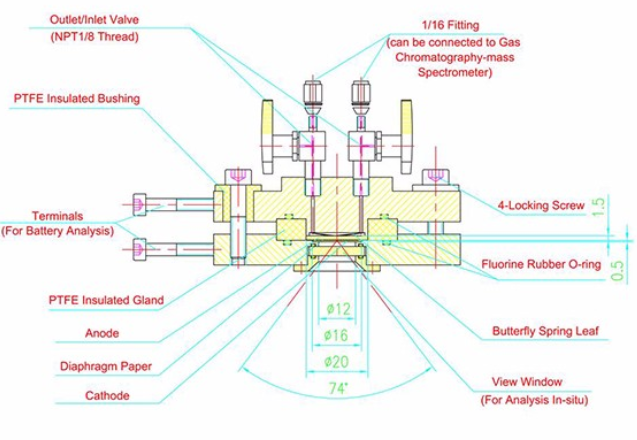

Structure

1 Stainless Steel Structure with internal Silver-  Clad surface treatment ensures high electrical conductivity and good

corrosion protection

2 Two electrodes design

3 Electrolyte corrosive-proof PTFE Guide Sleeve and Sealing O-rings

4 Compact design fits in any benchtop glove boxes

Cell Thickness

1~3mm (cathode+separator+anode)

Bottom Recess Area

16mm Dia.

(The recess area can accommodate the electrodes with

size upto 16mm dia.)

Max. Working Temperature

250℃

Valves & Fittings

Two Stainless Steel needle valves and 1/16" tube connector is

installed on both gas inlet and outlet

Warranty

One Year limited warranty with lifetime support

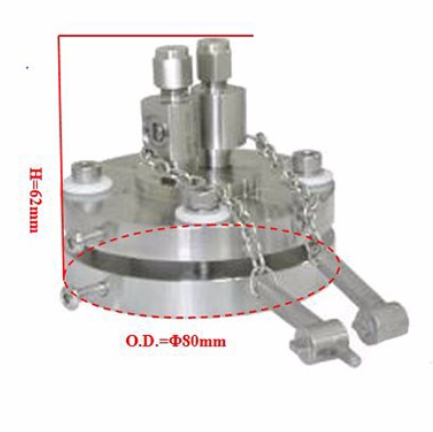

Dimensions

φ80*62mm



Air Battery Test Cell

 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
