Heat Press Machine For Battery Anode Material Preparation

Heat Press Machine For Battery Anode Material Preparation

Sales Manager:David

Email:David@tmaxcn.com

Wechat:18659217588


  • Item No.:

    TMAX-HC-HRP
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Product origin:

    China
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

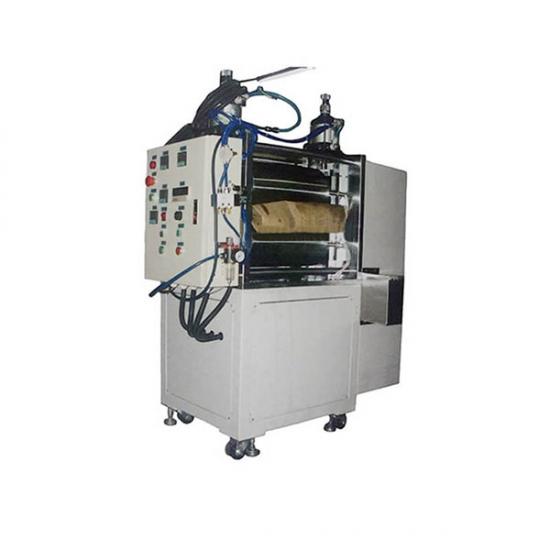

Heat Press Machine For Battery Anode Material Preparation



Function:
The machine is used for battery anode material and Cu or AL mesh substrate temperature composite.

Basic configuration:
1. Imported Gear Motor
2.AirTAC cylinder and solenoid valve.
3.Composite roll: φ200x400
4.Imports of non-contact temperature sensing
5.Iimport temperature Controller.

Features:
1.Compound main roller surface roughness :0.2
2.Compound main roller concentricity: ± 0.007mm.
3.Compound main roller cylindricality: ± 0.007mm.

Power

Three-phase AC380V, 50HZ;

Button light and electromagnetic valves AC 220V;

Motors 380V;

Switchboard power of about 10KW;

Size

900 (L) * 1110 (W) * 1350 (H)




 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
