Item No.:
TMAX-QXQMPayment:
L/C, T/T, Western Union, Credit Cards, PaypalShipping port:
Xiamen PortLead Time:
20 DaysCertificate:
CE, IOS, ROHS, SGS, UL CertificateWarranty:
Two years limited warranty with lifetime technical support
Overview
The omni-directional planetary ball mill is based on the vertical ball mill, adding planetary rotation and overturning function. When the material in the planetary plate and ball mill jar is planetary, the ball can also do 360 ° overturning in a fixed space, so as to realize the multi-dimensional movement of the ball and material in the ball mill jar, and improve the disorder movement of the ball and material. There is no dead angle grinding for the whole material in the grinding tank, which makes the grinding material more uniform, and can effectively solve the problems of some materials sinking to the bottom and sticking to the tank.

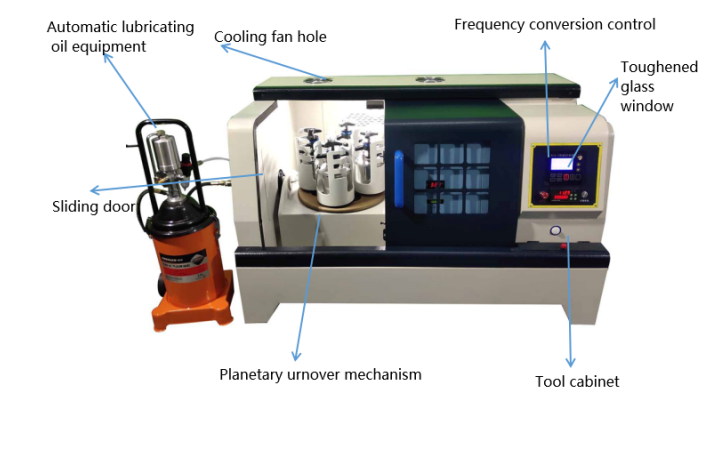

Features:
1. The equipment is light, with a push-pull door, which is convenient for operation.
2. The shell adopts high precision laser cutting, CNC bending forming, elegant and exquisite, high-end and stable planetary disk, the structural components are processed by numerical control processing technology, and the metal heat treatment process of air infiltration is used to ensure the rotational speed of shaft parts, wear resistance and prevent shaft breakage.
3. High temperature and wear-resistant non-metal and metal precision gear is adopted for rotating gear, and lubricating grease is used for lubrication.
4.Automatic lubricating oil device:
Through the electronic control of the main engine of the wheel lubricating oil, the time cycle is flexibly designed, and the lubricating oil is automatically added quantitatively. The problem of machine wear caused by the failure to lubricate the transmission components in time is solved, and the service life of the equipment is shortened.

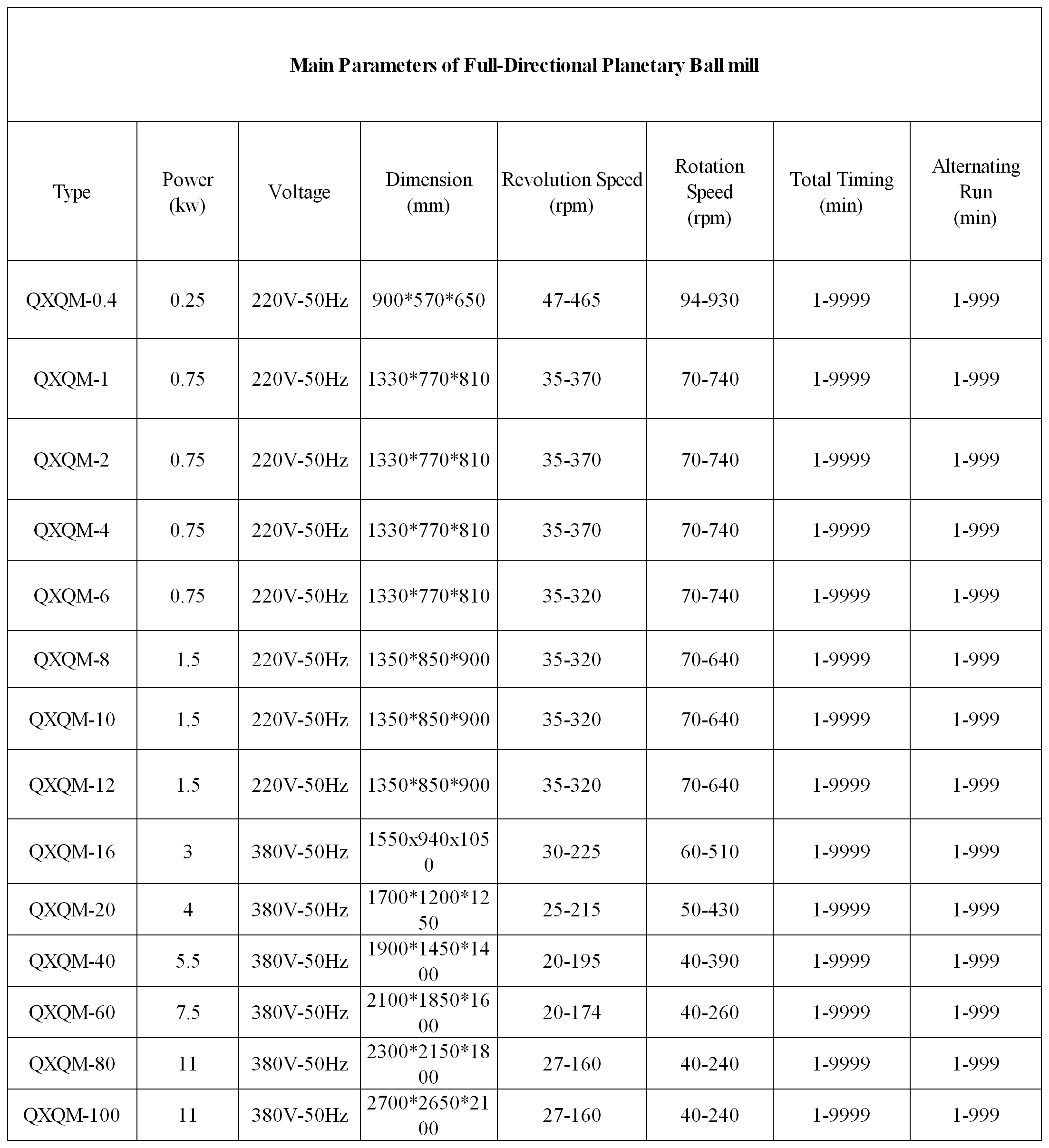

Specifications
Drive Mode |
Gear drive |
Operate Mode |
Two or four grinding jars working together |
Maximum Loading Capacity |
2/3 of the total volume of milling jars |
Each Jar’s Volume |
0.1L-25L; Total:0.4L-100L |
Feeding Size |
Soil material≤10mm,other materials≤3mm |
Output Granularity |
Smallest granule reaches 0.1μm |
Rotational Speed Ratio |
1:2 |
Max.Continuous Operating Time |
48 Hours |
Materials of Jar |
Stainless steel.agate,nylon,corundum,zirconia,etc |

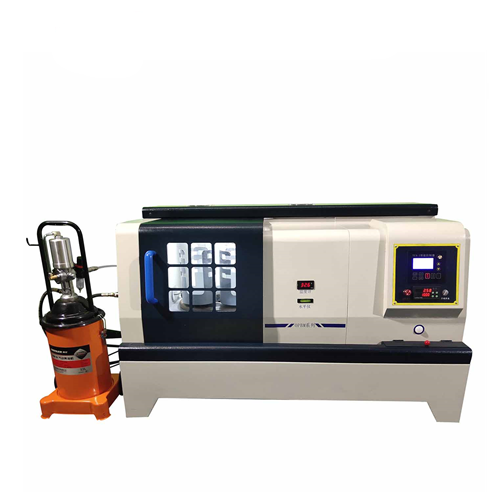

Product Images
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
