Product Name

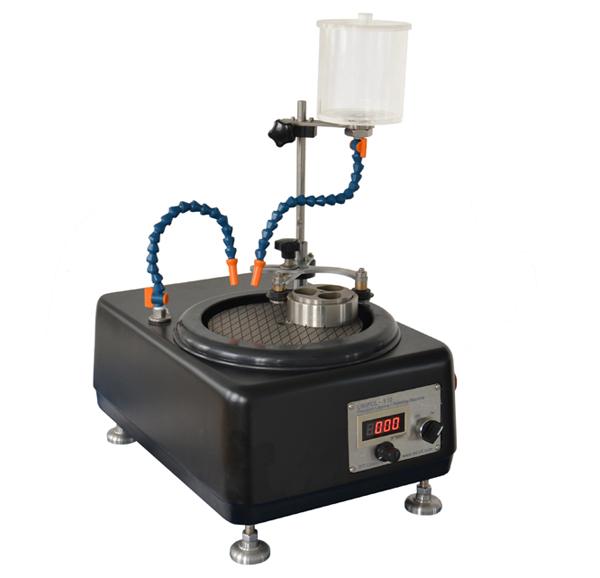

UNIPOL-810 Precision grinding and polishing machine

Product Model

UNIPOL-810

Installation conditions

This equipment is required to be used at an altitude of 1000m or less, at a temperature of 25℃±15℃ and a humidity of 55%Rh±10%Rh.

1. Water: the equipment is equipped with upper and lower water ports, you need to connect their own tap water and drainage

2. Electricity: AC220V 50Hz, must have a good grounding

3. Gas：No

4. Working table: size 800mm×600mm×700mm, load-bearing 200kg or above

5. Ventilation device: not required

Main Parameters

1. Power：220V

2. Power：175W

3. Rotating speed of grinding and polishing disk: 20rpm-600rpm

4. Polishing disk：Ø203mm

5. Load plate: Ø80mm

6. Station: 1

7. Dropping material barrel volume: 0.85L

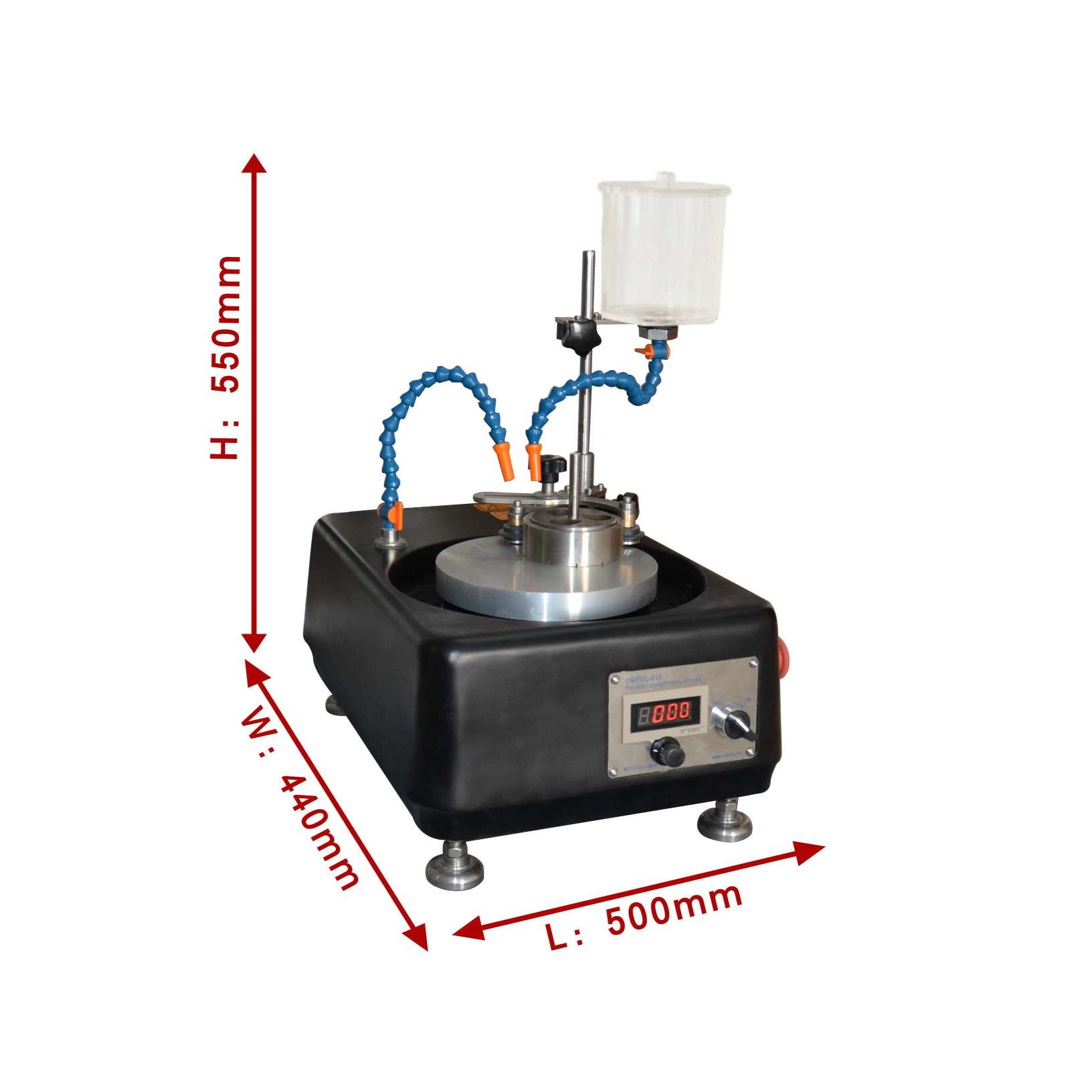

Product specification

Size: 500mm x 440mm x 550mm;

Weight: 45kg

No.

Name

Amount

Pictures

1

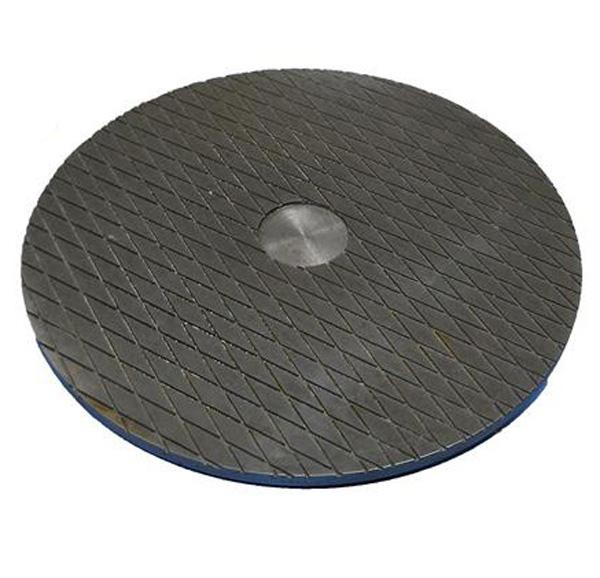

Cast Iron Grinding Disk

1

2

Aluminum alloy magnetic disk

1

3

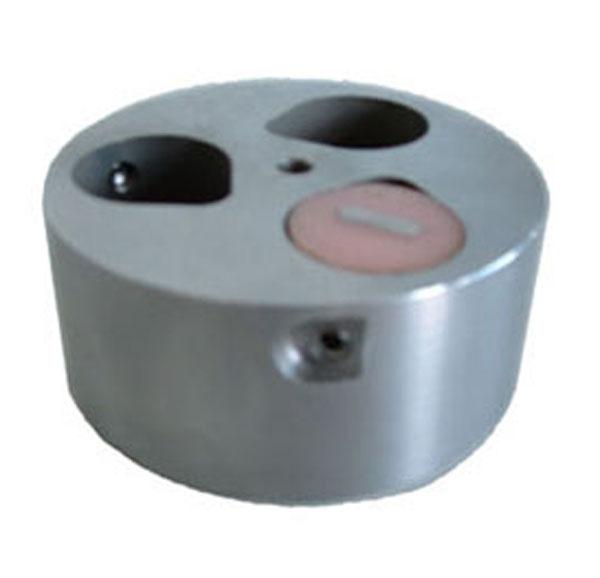

Carrier disk

1

4

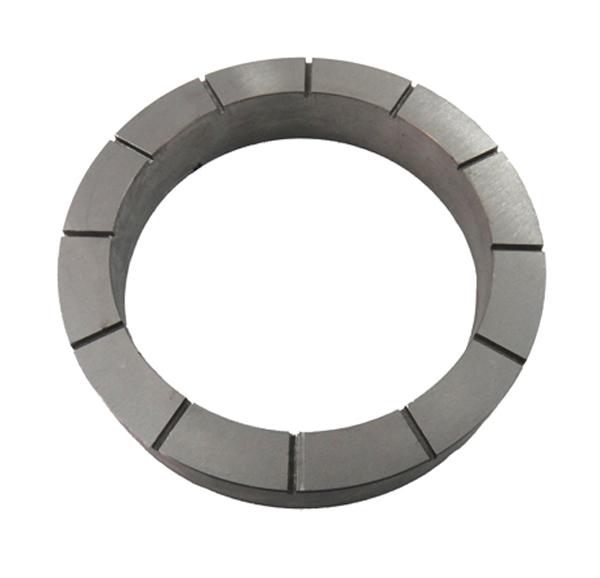

Trimming ring

1

5

Peach Hole Carrier Disk

1

6

Magnetic discs

2

7

Abrasive Discs

5

8

Sanding paper

8

9

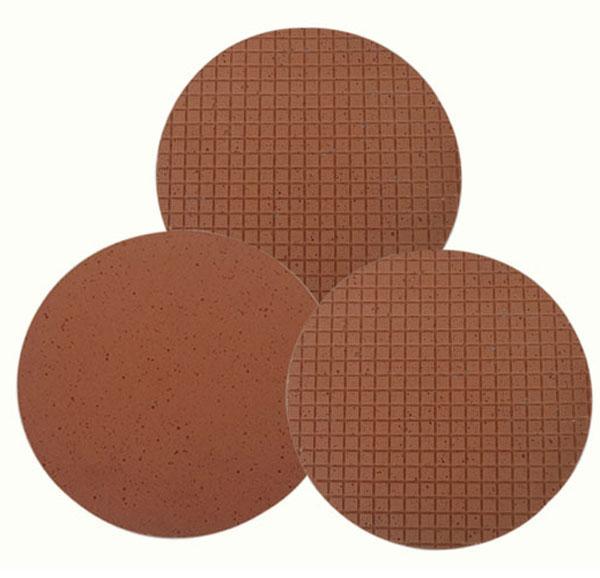

Polishing pads

(Abrasive leather, synthetic leather, polyurethane)

1 for each

10

Diamond Polishing Paste

1

11

Corundum Grinding Powder

0.5kg

12

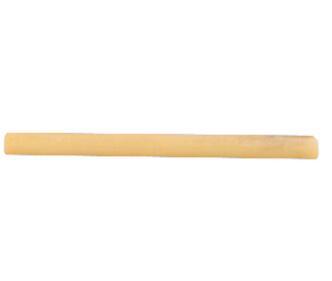

Paraffin Rod

4

No.

Name

Function Category

Pictures

1

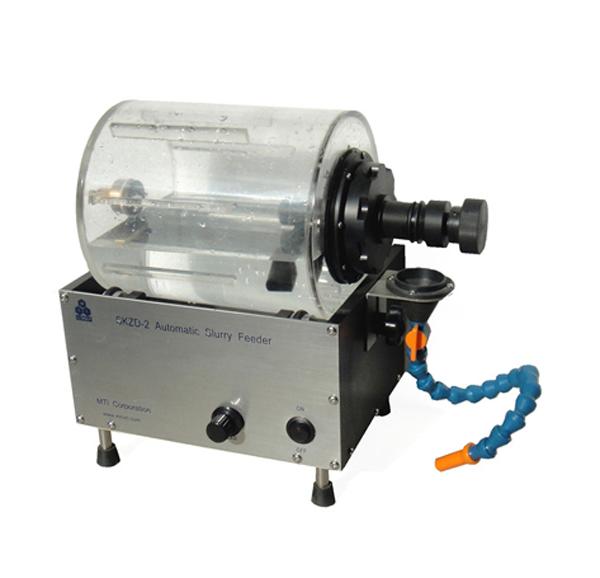

SKZD-2 Drip Feeder

(Optional)

2

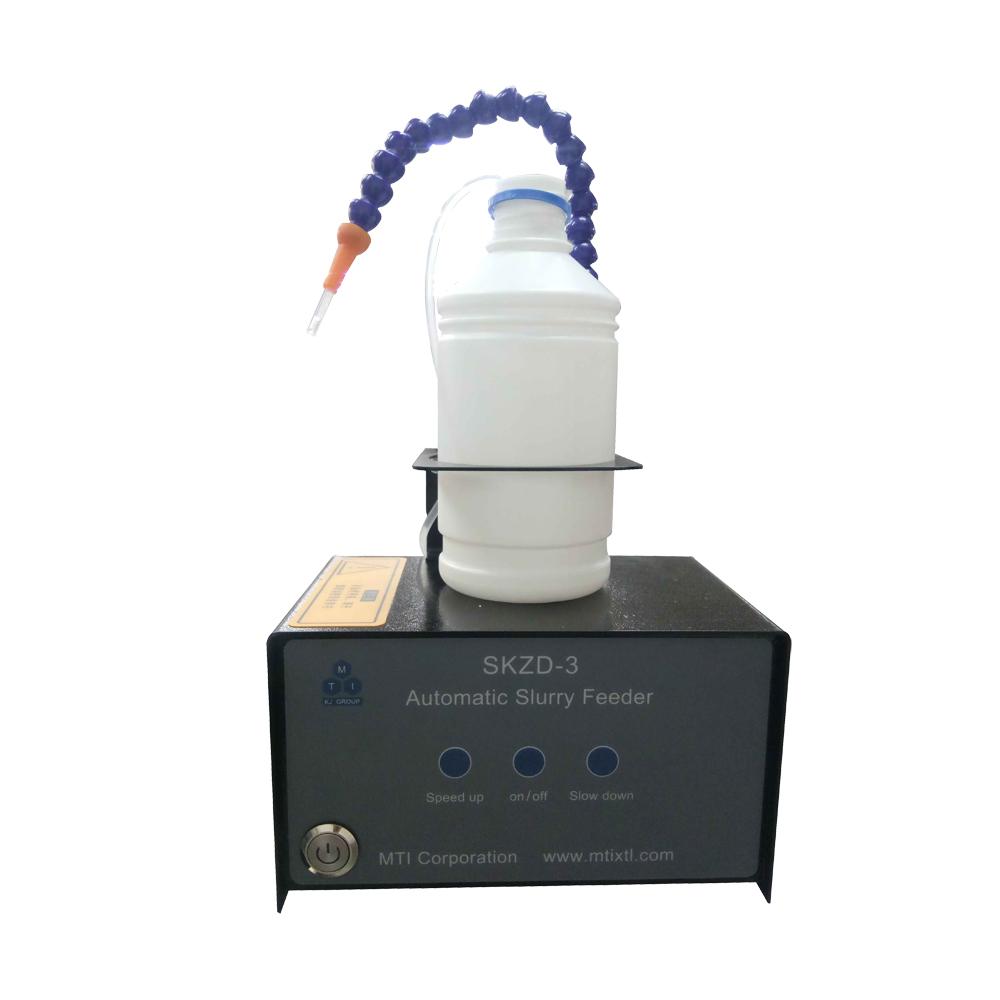

SKZD-3 Drip Feeder

(Optional)

3

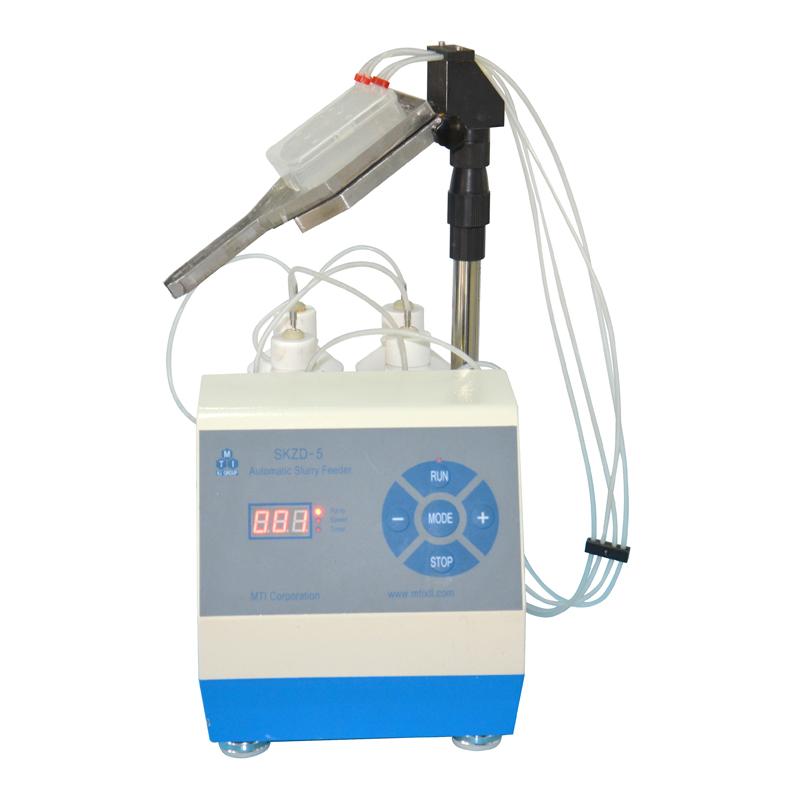

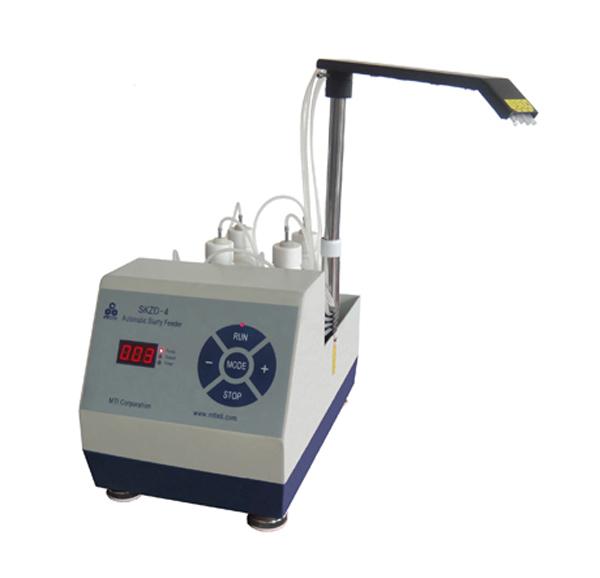

SKZD-4 Automatic Drip Feeder

(Optional)

4

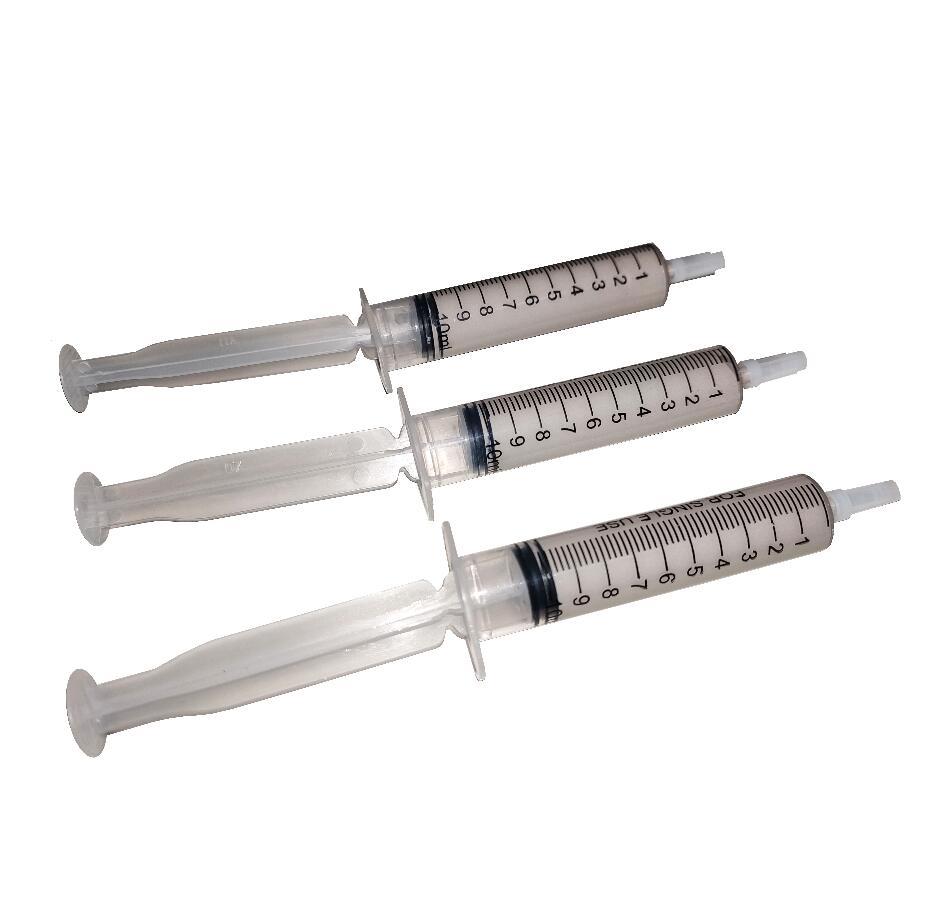

SKZD-5 Dropper

(Optional)

5

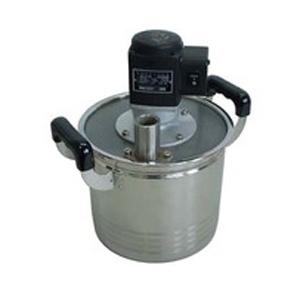

YJXZ-12 stirring circulating pump

(Optional)

6

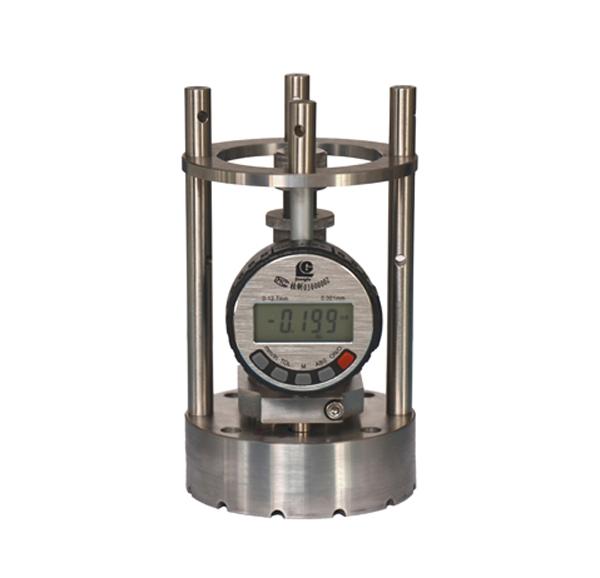

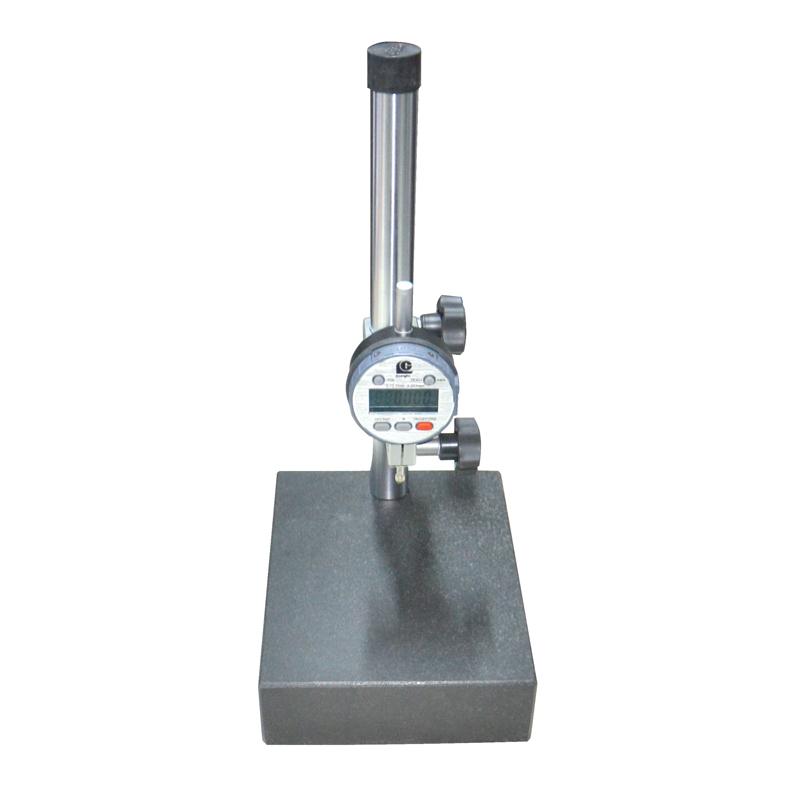

Precision Thickness Gauge

(Optional)

7

GPC-50A precision grinding and polishing control meter

(Optional)

9

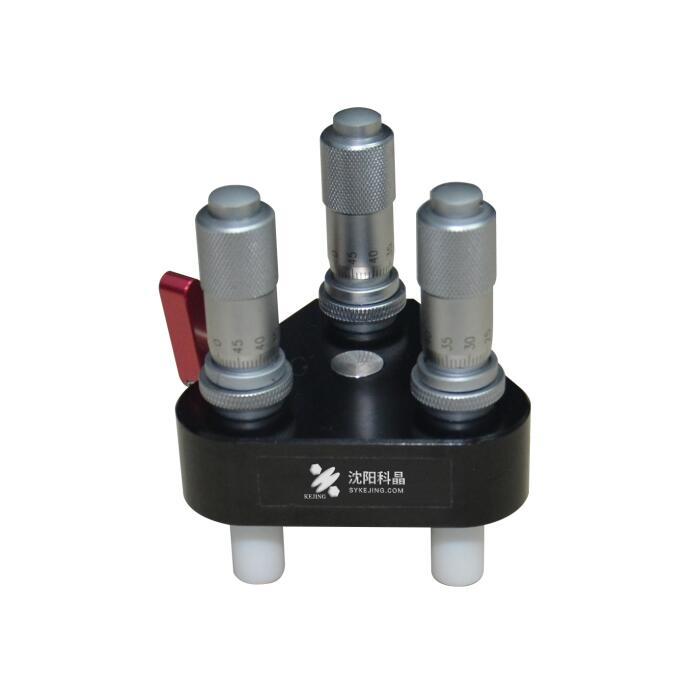

UNIPOL-01 TEM wedge grinding and polishing fixture

(Optional)
