Battery Heat Sealer Crimping Machine for Pouch Cell

Sales Manager:David

Wechat:18659217588

Item No.:
TMAX-SFZ200
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Product origin:
China
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

Battery Heat Sealer Crimping Machine for Pouch Cell

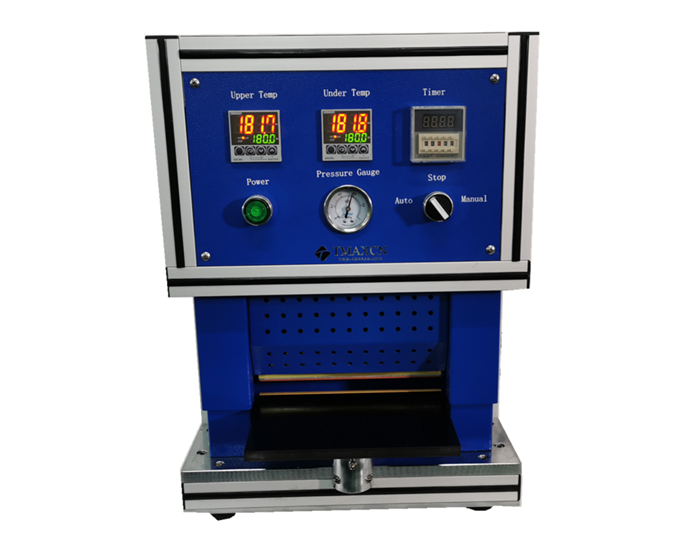

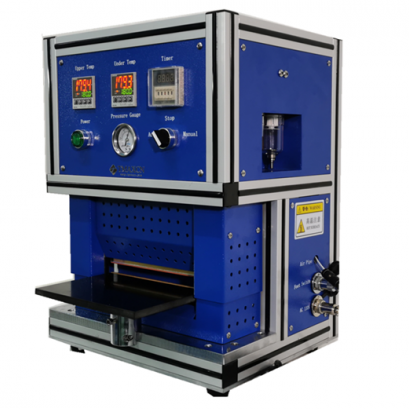

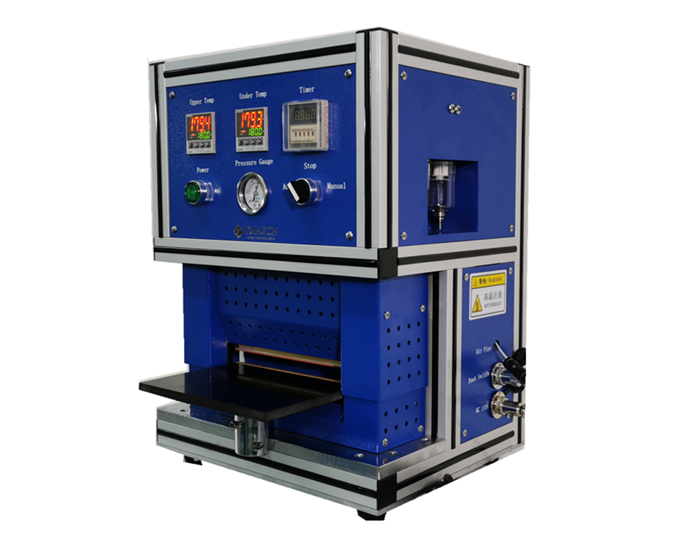

1 TMAX-SFZ200 Battery heat sealing machineis a compact heating sealer for sealing aluminum-laminated films during pouch cell (polymer Li-Ion cell) case preparation.

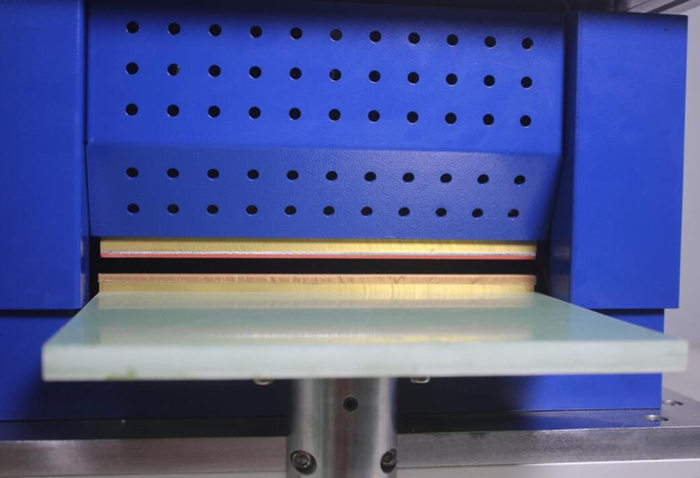

2 Thebattery heat sealing machineadopts soft sealing bar, The sealing is copper in bottom and aluminum and Silicone rubber piece on top. So it can be used for both top and side sealing for pouch cell.

3 It can prepare the pouch cell for the injection of electrolyte by sealing the side and top of the pouch cell with tab.

Model	Battery Heat Sealing Machine TMAX-SFZ200
Voltage supply	110/220V 50/60Hz Single Phase
Power	600W
Warranty	One Year limited warranty with lifetime support

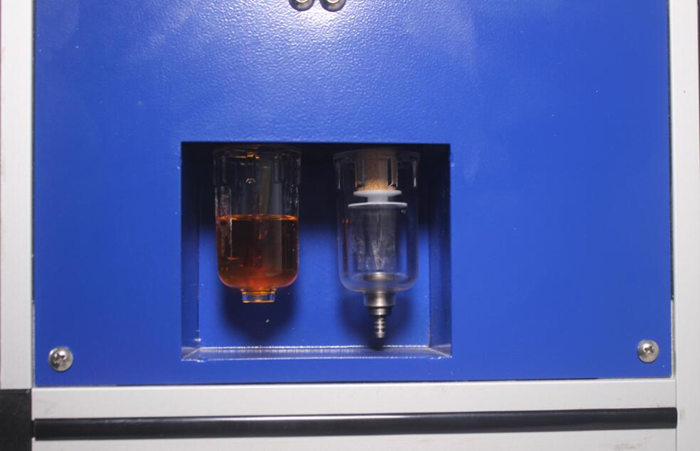

Compressed air	≥ 6kg/cm2
Suitable battery size	Top sealing ≤200mm, Side sealing ≤200mm
Sealing head length	200mm, Customized
Sealing thickness	0.15-0.3mm
Sealing stamp width	6mm (Can be customized upon request without extra charger)
Sealing pressure	0.5- 0.7 MPa (0 - 99 psi) adjustable
Sealing temperature	RT-250℃, adjustable with controlling accuracy +/-2 °C
Sealing time	0-99s adjustable
Sealing blade type	Soft sealing blade (Copper sealing blade with aluminum and Silicone rubber piece, good for Al film case sealing and case with tab in between, suitable for both top sealing and side sealing)
Dimension(LWH)	330330500mm
Weight	40kg
Package size (LWH)	420450580mm
Package weight	58kg
