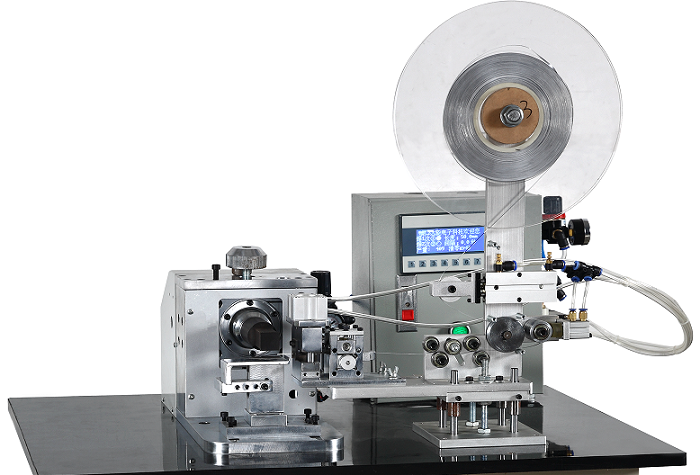

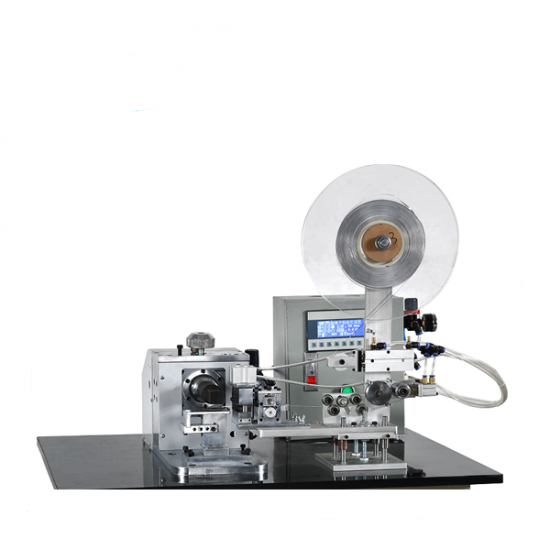

Automatic Tab Welding Machine for Cylindrical Cell Making

TMAX-GA-LS130 is automatically controlled by PLC to realize the functions of fixed length belt feeding, belt cutting, glue pasting, cover plate feeding, welding instruction and so on; It is the best choice for you to improve work efficiency and product quality with convenient use, simple maintenance and stable performance.

Thank you again for your use. It is our duty and mission to serve you wholeheartedly.

Technical Parameter

Project	Parameter
Specification of Aluminum / Nickel Strips
Thickness	0.1-0.2mm
Width	3-4mm (other specifications need to be customized)
Feeding
Length	1-60mm  (extension can be customized)
Length Error	±0.5mm
Efficiency	25-40 PCS / min (related to the speed of manual pole feeding)
Electrical Parameters
Power Supply Voltage	1P 220V
Input Power	70W
Input Air Pressure	0.4-0.7Mpa flow 20L / min, utilization rate 50%
Product Use Environment
Ambient Temperature	-5～35℃
Relative Humidity	5-75%HR
Power Supply	AC220V 1P  Voltage fluctuation is less than±10% Power supply power > 1KVA
Maintenance
Failure Rate	1-3%
Design Service Life	5 years



Constituent

The machine is composed of unwinding, buffering, shaping, glue wrapping, belt feeding, belt cutting, electrical control and other mechanisms. The list of accessories of each mechanism is as follows:

NO.	Mechanism Name	Part Name	Model	Manufacturer	Quantity	Warranty Period
1	Electric Control Panel	PLC	DVP16ES2	Delta	1 set	1 year
2		Text Display	MD306	Master	1	1 year
3		Switching Mode Power Supply	S-50-24	Delta	1	1 year
4		Relay	MY4NJ	OMRON	2	1 year
5		Stepping Driver	2H45B	Reyes	1 set	1 year
6	Feeding System	Rubber Coated Die	Non Standard	De Ruicheng	1 set	1 year
7		Glue Feeding System	Non Standard	De Ruicheng	1 set	1 year
8		Cutter	White Steel	De Ruicheng	1 pair	1 year
9		Guide	12	Shangyin	7 sets	1 year
10	Pneumatic System	Cylinder	SDA32-05	Stars	1	1 year
11		Cylinder	SDA25-10	Stars	1	1 year
12		Cylinder	TDA10-10	Stars	1	1 year
13		Cylinder	CDJ2B16-60	Stars	2	1 year
14		Cylinder	CDJ2B10-15	Stars	3	1 year
15		Cylinder	TDA10-20	Stars	1	1 year
16		Pressure Relief Valve	AR-2000	Stars	1	1 year
17		Solenoid Valve	4V110-06	Stars	6	1 year
18	Mechanical System	Frame	Non Standard	De Ruicheng	1 set	1 year

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
