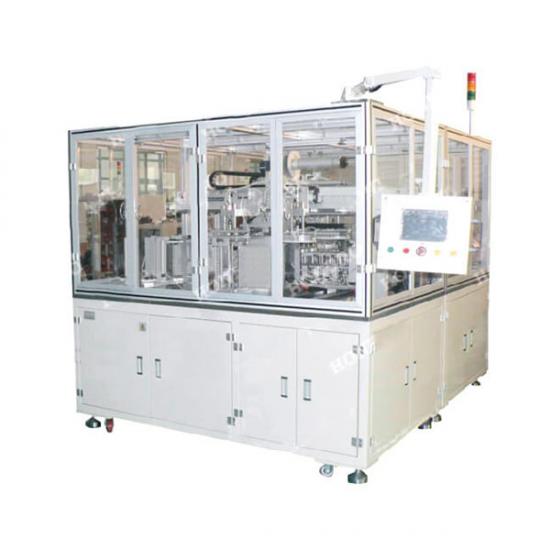

Automatic Stacking Machine For Pouch Cell Manufacturing

Automatic Stacking Machine For Pouch Cell Manufacturing

Sales Manager:David

Email:David@tmaxcn.com

Wechat:18659217588


  • Item No.:

    TMAX-A-007
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Product origin:

    China
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

Automatic Stacking Machine For Pouch Cell Manufacturing



Functions
 This equipment is suitable for the lithium-ion battery batteries of anode and cathode Z with isolation membrane laminated assembly, automatic outsourcing isolation membrane in the polar group, automatic cutting off the diaphragm, automatically terminate locking adhesive tape, automatic blanking, manual collect batteries.

Features
 Anode and cathode are single configuration manger, the troughs sheet with real-time lifting structure;
 Slight bend, brush, shaking and flexible sucker can effectively prevent the multi-plate absorption phenomenon;
 Secondary precise positioning, ensure the plate alignment degree;
 Equipment dust removal device, can focus the dust collector chipped, ensure mechanical mesa clean;
 Anode and cathode pressure claw cathode film, prevent cross contamination phenomenon;
 solation membrane ion wind blow dry, remove the isolation membrane electrostatic;
 Secondary positioning installation of ultrasonic sensor to detect repeat or lack of pills;
 Adopts servo drive lamination machine, can make the stress between the layers of sheet was evenly;
 Imported non-trace buffer sucker, effective to prevent the occurrence of suction plate printing, indentation phenomenon;

 With functions of diaphragm recycling and the first piece of diaphragm correction function.


We will offer high-accuracy stacking machine with many advance features to ensure a stable,

repeatable and precise electrode stacking.


Technical Parameters(for reference)

ITEM

HBZDP150

HBZDP250

HBZDP300

Measure

1800*1600*1950mm (L*W*H)

1920*1850*1950mm (L*W*H)

2100*1850*1950mm (L*W*H)

weight

About 1.0 T

About 1.2 T

About 1.3 T

power

AC220V/50HZ, 3.0kw

AC220V/50HZ, 3.0kw

AC220V/50HZ, 3.0kw

Air source

0.6Mpa,30L/min

0.6Mpa,30L/min

0.6Mpa,30L/min

Vacuum source

-0.09Mpa,15L/s

-0.09Mpa,15L/s

-0.09Mpa,15L/s

Applicable range

L:50-150mm,W: 35-90mm,T:5-30mm

L:100-250mm,W: 60-150mm,T:5-50mm

L:150-300mm,W:100-200mm,T:5-50mm

Capacity

1.1-1.4s/plate

1.2-1.6s/plate

1.3-1.7s/plate

Action

99%

99%

99%





 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
