Battery Insulation Paper Sticker with Sorter

Automatic Cylindrical Cell Battery Paper Sticking Machine With Optional 5-22 Channel Battery Sorting Machine

Sales Manager:David

Wechat:18659217588

Item No.:
TMAX-STN
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Product origin:
China
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

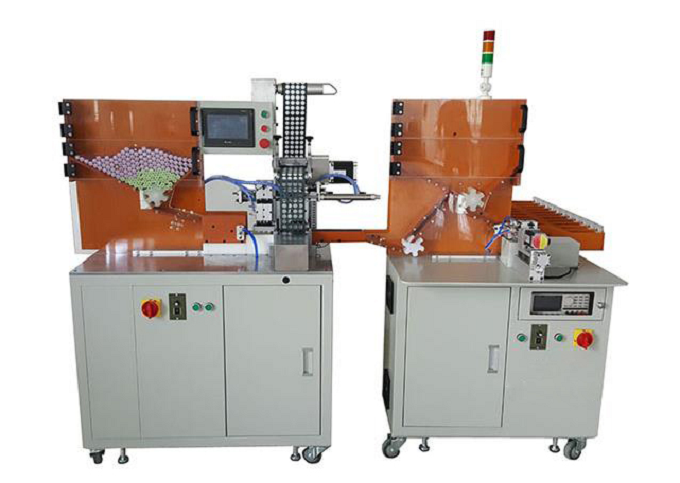

Automatic Cylindrical Cell Battery Paper Sticking Machine With Optional 5-22 Channel Battery Sorting Machine

Introduction

The sorting and battery insulation paper sticking machine is a kind of testing and sorting equipment which is suitable for cylindrical battery to be pasted first, then checked the internal resistance, voltage and other parameters. It is equipped with a high-precision internal resistance, voltage automatic testing system. According to the internal resistance set on the computer software, the equipment accurately sends the battery to the designated position according to the voltage value, and the system can equip with optional channel battery sorter which can realize (5 / 9 / 11 / 13 / 22) sorting. The overall design efficiency of this equipment is about 4500 electric cores per hour, the structure design is simple and generous, and the performance is stable.

Technological Process:

Filling the whole box of battery→Motor rotation→The cylinder pushes the battery out→Belt transport battery→Battery launch→Battery entering conveyor belt→Stop cylinder released→Lead screw drives cylinder battery team→The battery is full of four lead screws to shift the battery→Under cylinder pressure→Move the battery to the highland barley paper position→Secondary positioning of cylinder to battery→Barley paper pasted on stepper motor→Waste recovery→Finished battery to discharge chute→The cylinder pushes the battery onto the sorter belt→Battery launch→Test battery→After the battery is full, the manipulator grabs the battery→Battery sorting→Manual packing

Mechanical Structure

Compact structure design, beautiful appearance and small space occupation;

Manual packing and loading of equipment;

The equipment adopts high quality and thick cold-rolled sheet metal, aluminum profile frame;

The equipment is equipped with universal movable casters, which makes it easy to move and handle the equipment.

Specification

11 Channel Cylindrical Battery Sorter (Optional Channel)

Model	TMAX-FN-011
Power supply	AC220V ± 10% 50Hz
Voltage	900W
Sorting parameters	Open Circuit Voltage and AC Internal Resistance
Compressed Air Pressure	0.5 ~ 1.0Mpa
Sorting Speed	≥80PPM
Productivity	5000pcs/h
Dimension	1320x880x1450mm
Adaptation Battery	Cylindrical Battery (18650,32650,18500,26650,14500,21700 etc.)
Receiving Channel	11 channels
Internal Resistance Tester	HIOKI3561 or HK3561
	HIOKI3561: Open circuit voltage accuracy:± 0.01% rdg; Display Resolution: 0.1 millivolt; Internal impedance accuracy:± 0.1% rdg; Display Resolution: 0.01 mΩ HK3560: Open circuit voltage accuracy: ± 0.05% rdg; Display Resolution: 0.1 millivolt; Internal impedance accuracy:± 0.3% rdg; Display Resolution: 0.01 mΩ
Total weight	280kg

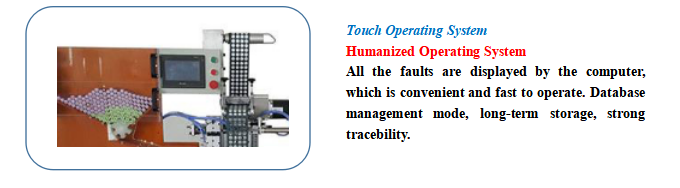

Control component	7.5 inch touch screen, 3-axis PLC programmer
Motion device	Closed-loop stepper motor is used for shifting, accurate positioning and synchronous belt conveying the core to prevent the surface of the core from being damaged.

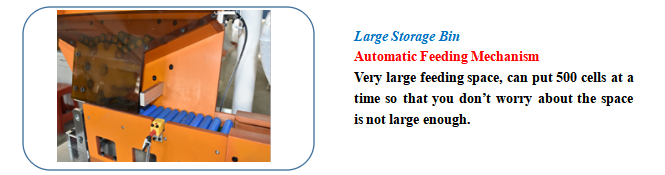

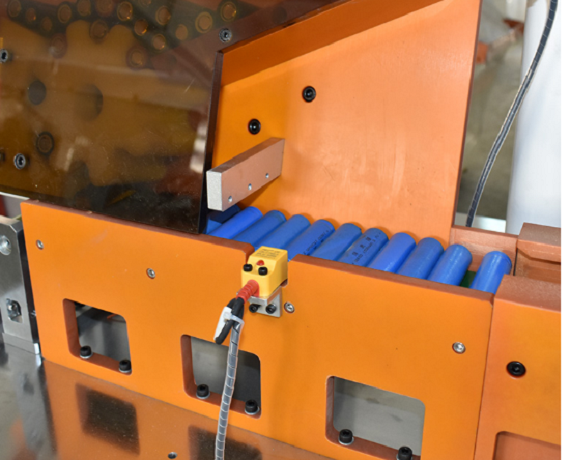

Feeding	Using hopper feeding mode, 500 PCS can be put in one time.
Data storage	Test data can be stored on a U disk
Scan code function	Can be customized
Automatic Online Interface	It can be customized to connect the outlet of the automatic surface cushion machine in the machine hopper to realize the automatic connection of the electric cores and save the labor cost.
Other	Customizable scanner and database data docking
	Optional Distribution Core Dynamic Tester, reflecting the quality and load-carrying performance of the core
	Customizable automatic connection automatic surface mattress machine (electric core poured into automatic surface mattress machine, pasted surface mattress automatically flowed into automatic sorter, sorting, saving manpower)
	Automatic collection of production quantity to show current production efficiency

Equipment Configuration List

Tester	HIOKI3561 or HK3561
Computer	Industrial Computer
PLC	FX3U-80MT/ES-A and SC-09
Servo	Panasonic A5 Series
Sensors	Panasonic and Omron, Japan
Guideway	ShangYin, Taiwan
Bearing	Japan NSK
Cylinder	Adec
Indoor temperature	- 30 ℃ ~ 70 ℃
Factory	No pollution and no strong electromagnetic interference

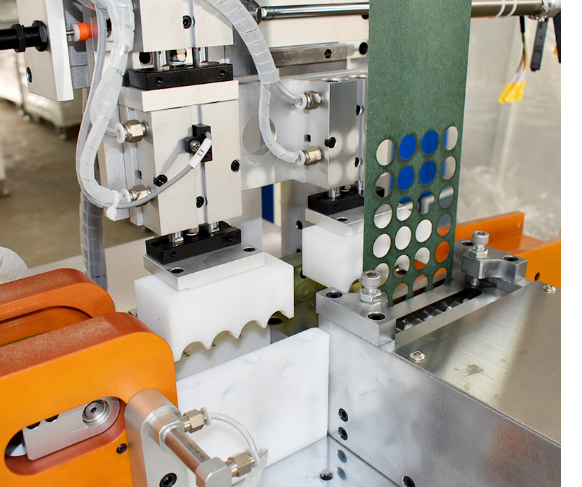

Battery Insulation Paper Sticker

Input gas source	0.4-0.8Mpa
Function Style:	stepper drive with pneumatic
Input voltage:	AC220V

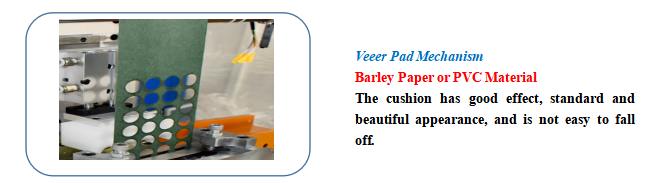

Sticker Matrials:	Barley paper or PVC
Sticker Matrials Size:	Barley paper Maxium 350mm;Scroll Internal Diameter 72-75MM
Adaptable Battery Cell	18650 battery Plus-n-Minus
Power:	Electric power or pneumatic
Control Instrument:	7.5feet contact screen,PLC programming machine and step motor
Electrodes to the body distance:	100 mm (Scalable adjustable)
Producivity:	4000pcs/h; singal 4pcs
External dimensions	1.3M1M1.3M

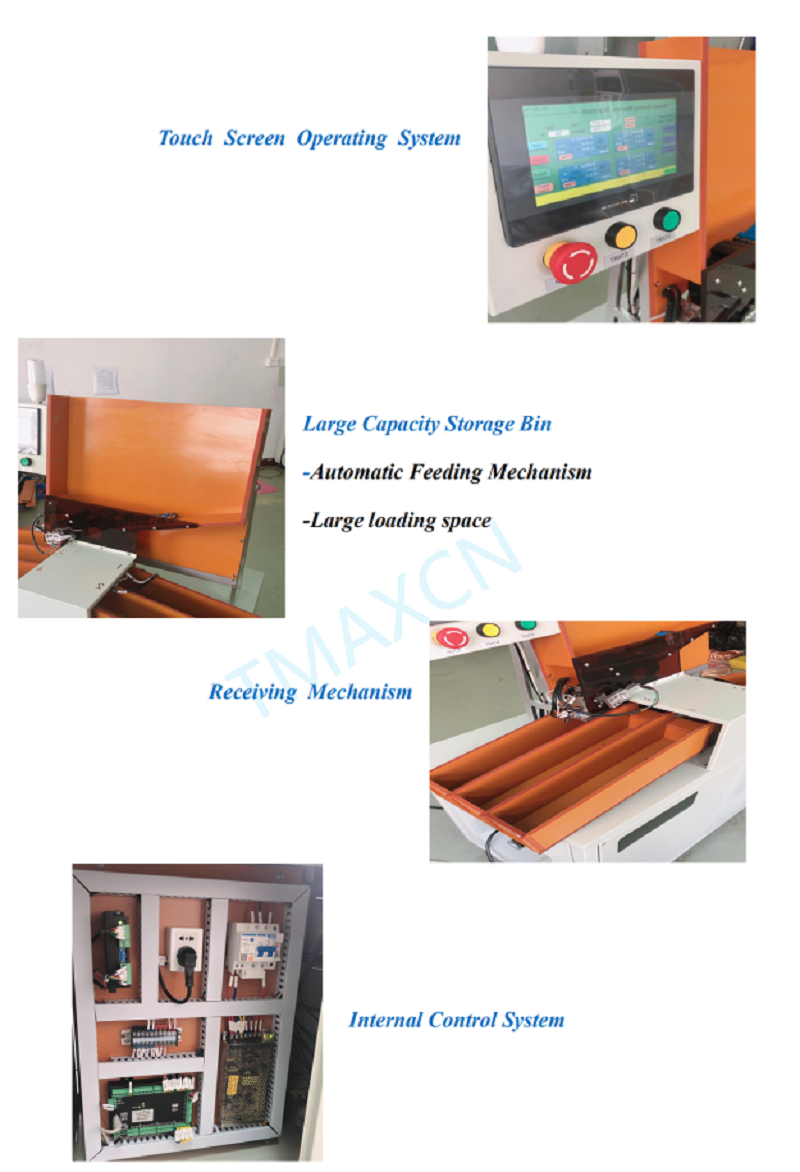

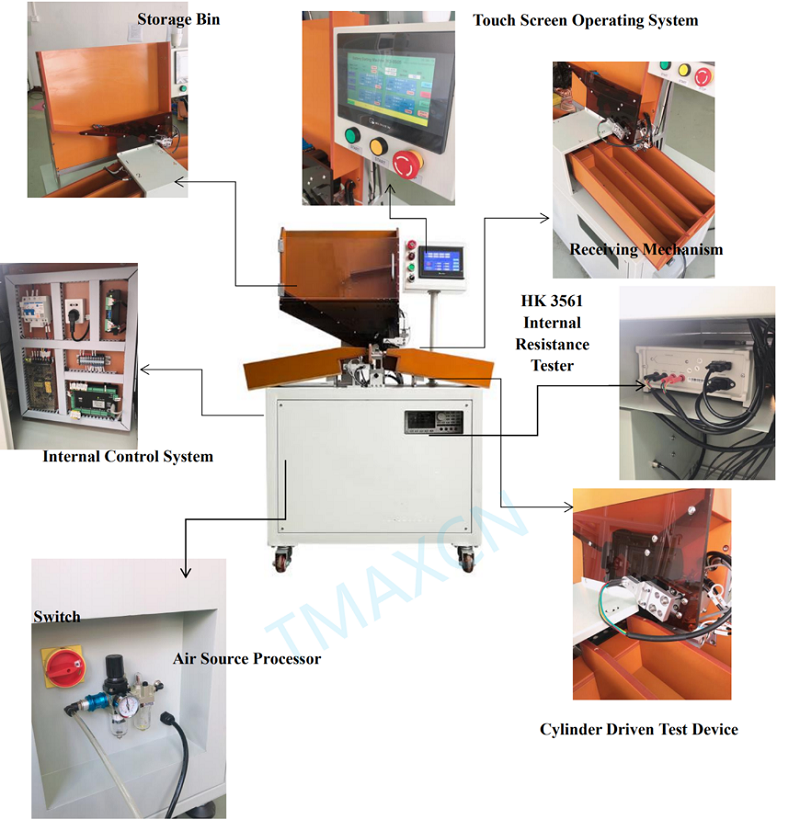

Battery Sorter

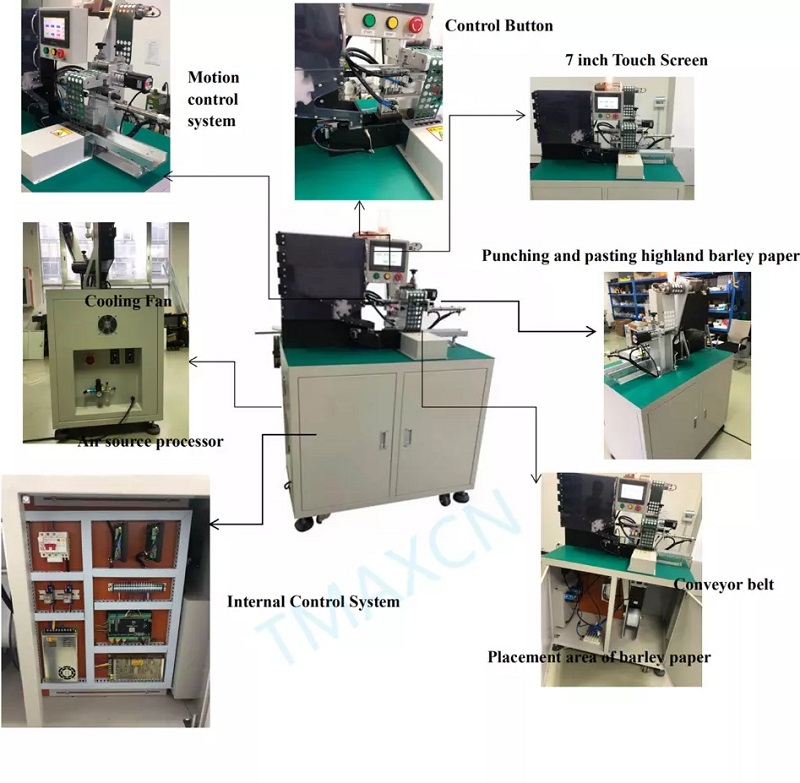

Battery Paper Sticker

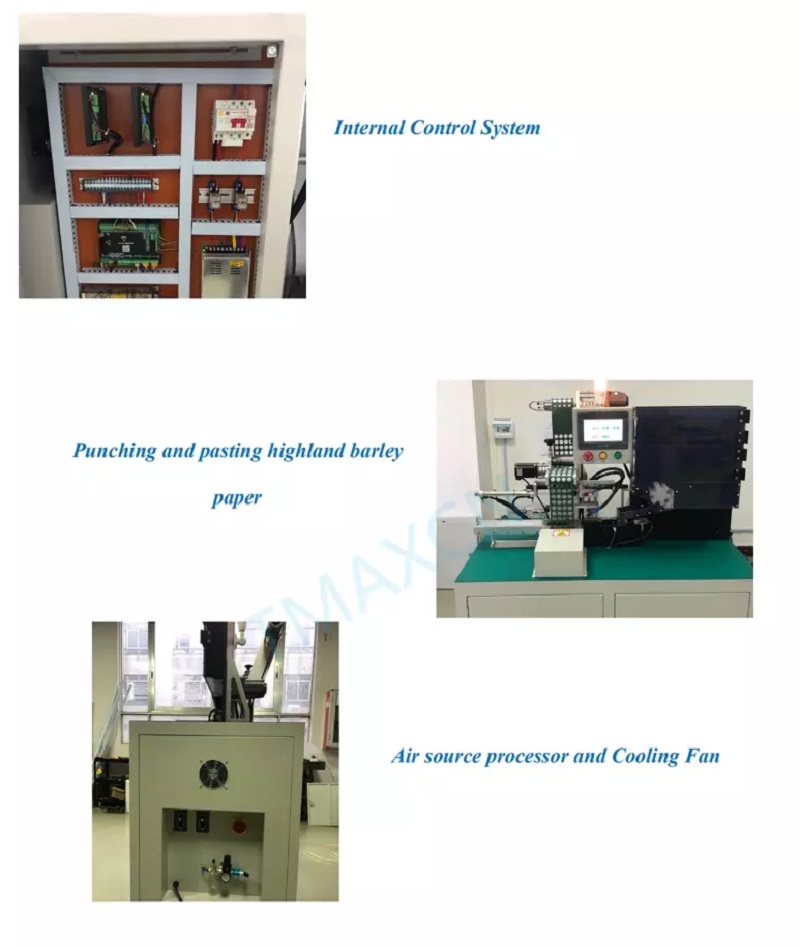

Detail Images

Product Images

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
