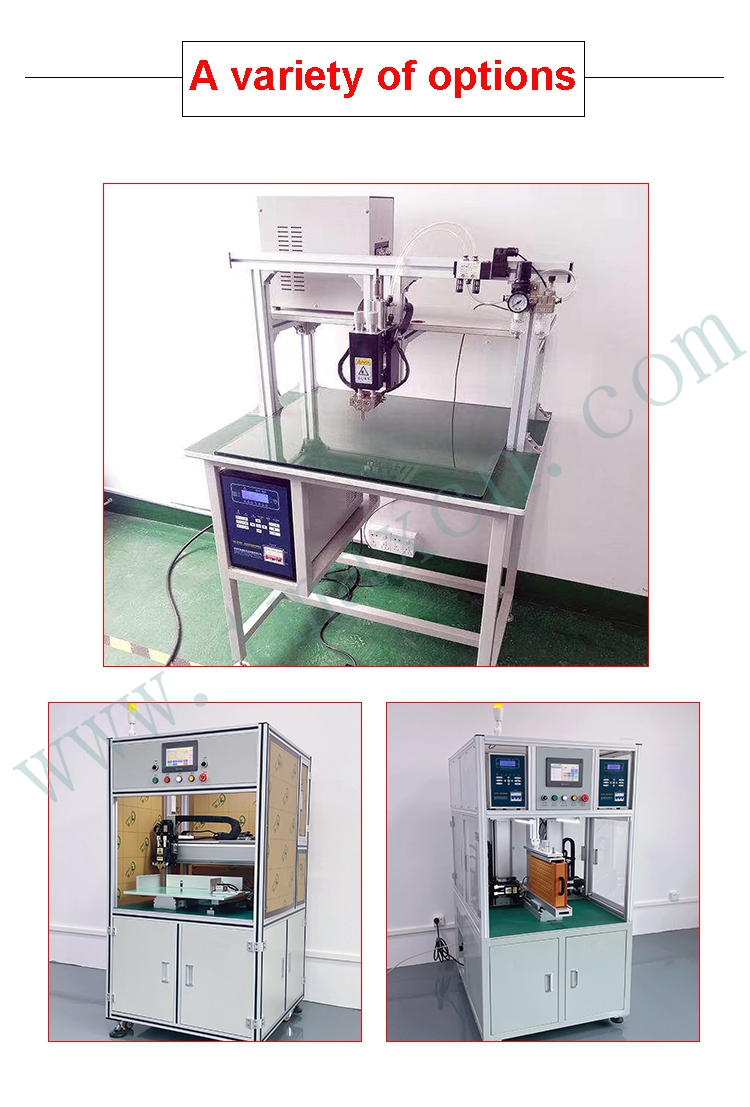

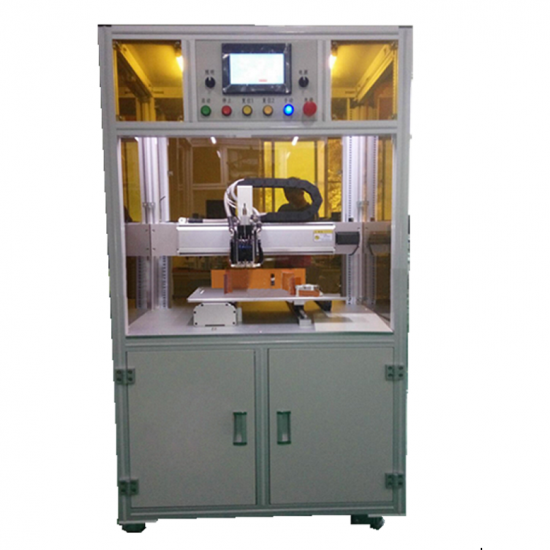

Power Supply and Voltage for Equipment

AC 220±10%，50HZ±2HZ, 500W

Welding Power Supply and Voltage

AC380V±10%，50HZ±2HZ，2000W

Welding Material

Pure nickel sheet: 0.03-0.2mm

Nickel-plated steel strip :0.03-0.3mm

Transmission Mode

TBI screw + Taiwan silver precision linear guide

Drying Mode

Stepping servo motor

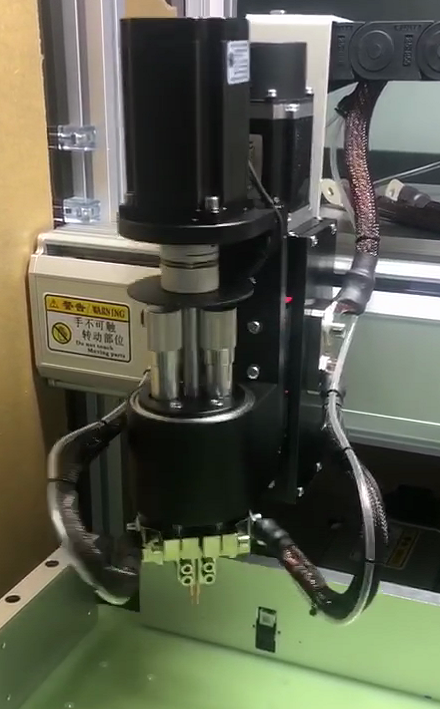

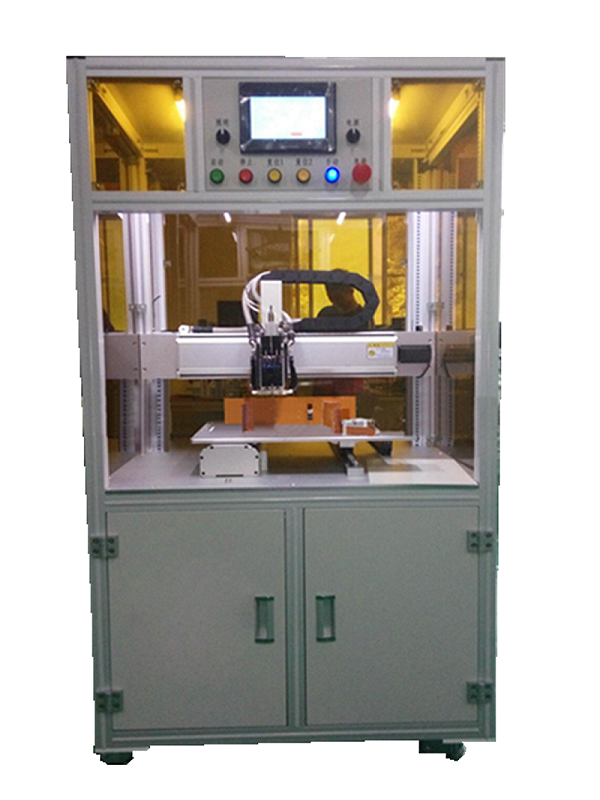

Rotation Function of Welding Head

The welding head supports positive and negative rotation, and is suitable for spot welding of special-shaped batteries and anti-sticking needle function.

Maximum Spot Welding Speed

0.35S/point；2800pcs/h

Maximum speed of motor transmission

1000mm/S

Maximum No. of Load Cell

X-26; Y-26 (adjustable)

Repeat positioning accuracy

±0.02MM

Number of storable file groups

99

Operating system

Embedded system + man machine interface

Maximum Load-bearing Weight

30KG

Maximum Stroke Size Range

X：500mm，Y：400 mm，Z：35mm，R：180º

The distance between tooling platform and welding needle can be adjusted by 300 mm.

Welding Pressure

The pressure of the two welding needles can be adjusted independently. The pressure is stable, reliable and easy to adjust. The welding tension between the battery shell and the connecting piece is ensured to be more than 30N.

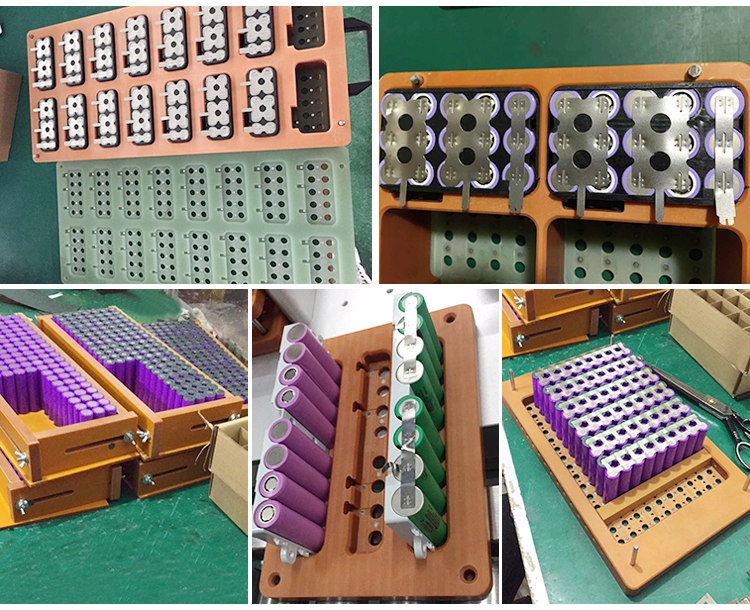

Welding Position

Cylindrical and top plane position of battery

Welding Process

Small spark spatter, no burr, no color change, beautiful welding, stable performance, no damage to the battery appearance;

Dimension

900L×900W×1650Hmm

Weight

200Kg

Power Cord

220V  10A

Pneumatic Connected Tube

Diameter 8 mm, easy to plug interface, air pressure 0.4 MPa
