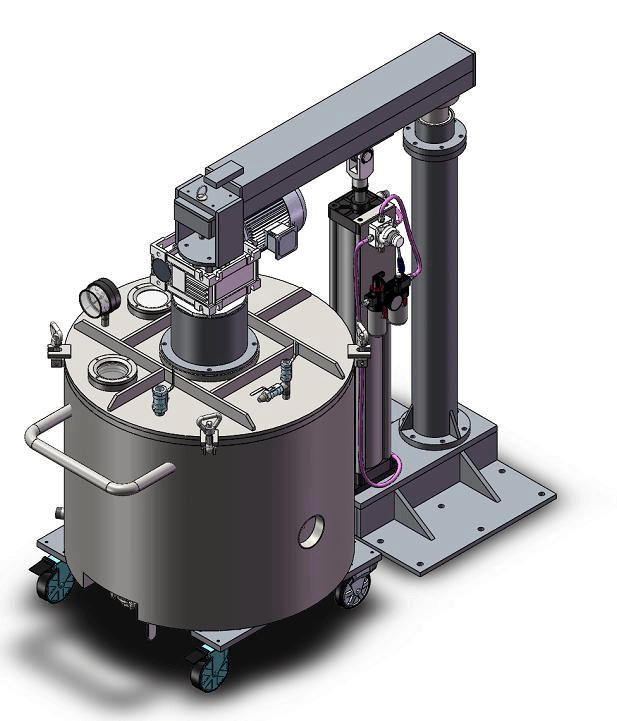

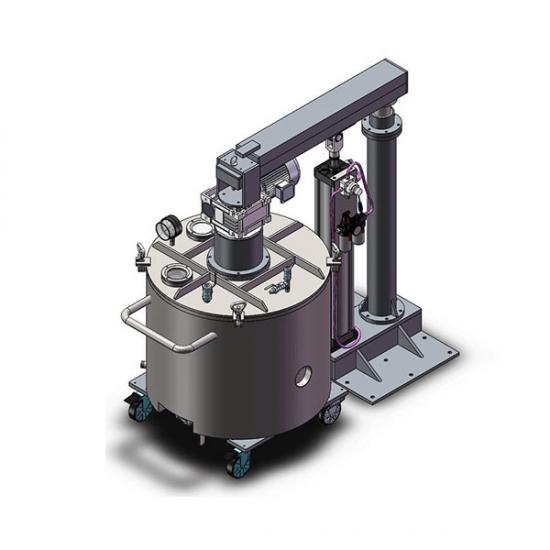

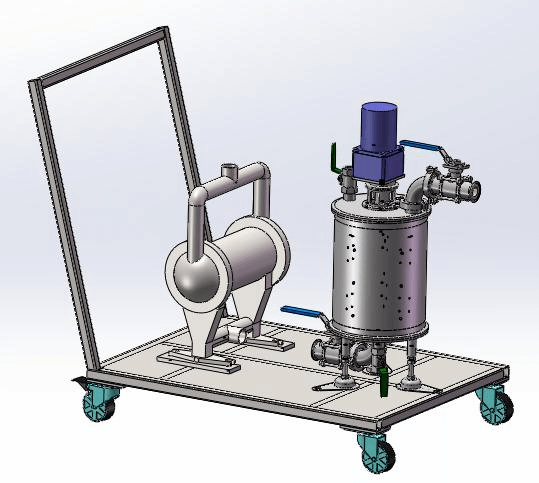

1.Feeding barrel

Design volume/use volume

150L/100L

The material of the inner tank of the mixing tank in contact with the material: 304 stainless steel.

Mixing barrel specification

About φ650*450

1) Discharge valve: G2” (DN50);

2) The barrel body has push and pull handles, and the barrel bottom has 4 casters (2 orientation + 2 universal);

3) Cooling/heat preservation: with bottom/side wall cooling jacket, cooling water inlet/outlet water distribution pipe union

2.Upper cover

Upper cover specification

Match with the corresponding mixing tank

The material of the part in contact with the material: 304 stainless steel.

1), with 2 small windows, a spotlight, feeding tube DN25 (with 304 ball valve), suction/discharge vacuum interface, vacuum pressure gauge and other spare connections;

2) The upper cover and the mixing barrel are fixed and locked with quick-locking buckles.

1. Mixing accessories and basic parameters

Mixing shaft/Mixing paddle speed

About 25rpm

Material: SUS304

Mixing motor power

1.1kw/4P

Reducer(matched with motor)

NMRV-090-60-FA-F2-Y90S-1.1KW

Mixing paddle form

Combined frame type mixing paddle.

4.Mixing principle

The combined frame-type mixing paddle performs downward pressure rotation to ensure that the material does not deposit.

5.Vacuum guarantee system: 5 skeleton oil seals are installed in parallel, and the vacuum source is provided by the user

1), the vacuum degree is ≤-0.098Mpa, keep for 24 hours not less than -0.08Mpa.

2) Sealing method: A, static seal uses "O"-shaped sealing ring; B, skeleton oil seal.

6. Power distribution box: the stirring switch, spotlight switch, emergency stop and other functional operations during equipment operation are all carried out on the power distribution cabinet.

7. Lifting device: 1 φ125x800 lifting cylinder, equipped with 1 safety pin
