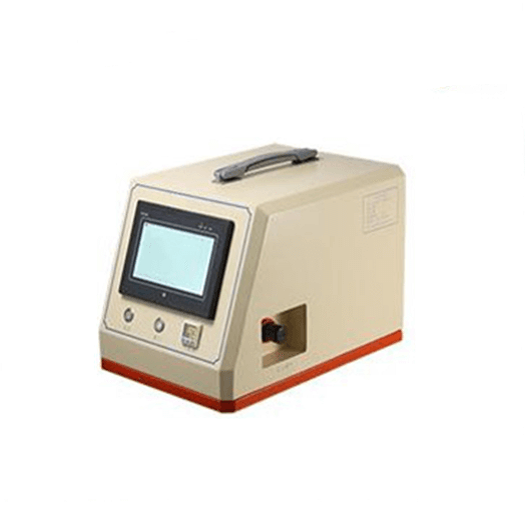

Air Leakage Testing Machine Air Tightness Tester

Introduction

1. This series supports leak test methods such as leak test, positive pressure test and negative pressure test. The range of leak test is - 85kpa ~ 800kpa.

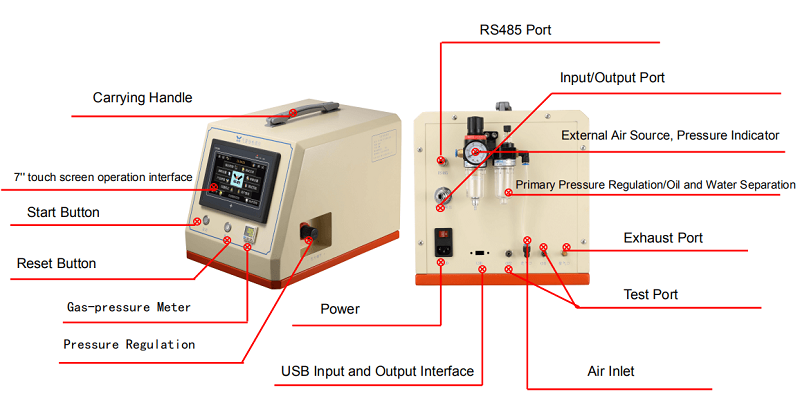

2. The 7-inch touch screen is used as the human-machine interface, which can easily monitor the test results and set various parameters during the leakage test.

3. It has the alarm function of qualified / unqualified products, which can eliminate the possibility of manual misjudgment and false inspection.

4. It can accept the control of external sensor and switch button, and can control the external relay, solenoid valve and other executive components to realize the full automation of test.

5. With test data recording function, it can store 8000 test data for 24 hours

6. Testing units: kPa, PA, MPa, bar.

7. With optional external barcode scanning module, it can automatically read the current product information and upload the test data to the computer through RS485 for saving.

Specifications

Color	Beige
Size	310*440*330(mm)
Weight	13kg
Power Supply	AC 100-240V, 50HZ,
Power	50W
Test Gas Source	0.4--0.8Mpa(Clean and Dry）
Test Medium	Compressed Air/Customer Specified Medium
Working Environment	0-50℃，≤95% （No Condensation）
Test Port No.	1/2/4
Pressure Methods	Positive, Negative Pressure, Positive and Negative Pressure
Pressure Regulation Mode	Manual
Regulation Precision of Pressure Adjust	±0.05%FS
Pressure Repetition Accuracy	0.1%FS
Pressure Adjustment Range	-85Kpa--+1600Kpa
Sensor Selection Range	-85Kpa--+1600Kpa
Sensor Accuracy	0.1%FS
Touch Screen	7/10 " Color LCD
Languages	Chinese, English, Japanese, German, Spanish, Russian (other languages customizable)
Programs' No.	16/99 groups program
Judgment/Alarm	Automatic Decision/Sound + Light Alarm Control
I/O Port	Input/output, 4 relay control functions (safety grating, solenoid valve and red and green warning light can be connected)
Parallel Communication(RS485)	Input/Output：Test Data, Set Value, Receive External PLC Control Signal
Historical Records	It can store 100,000 test results and upload them to the computer via usb flash drive.
