50mm or 100mm Width Extrusion Head Unit with Fixing Bracket and Digital Micrometer for Casting Coater

(with fixing bracket and digital micrometer for MSK-AFA-III coater)

Model

SDH-FSC

Product Overview

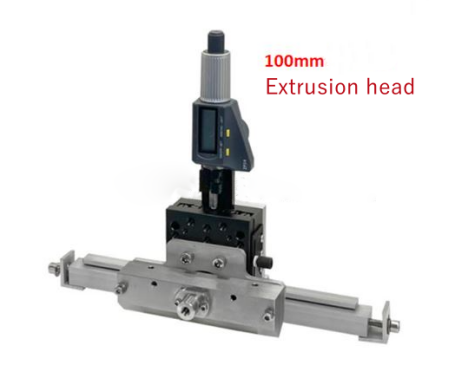

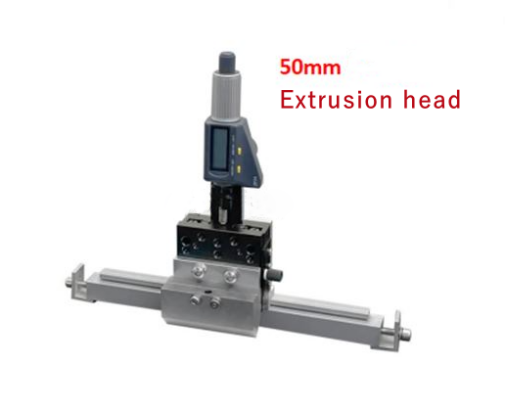

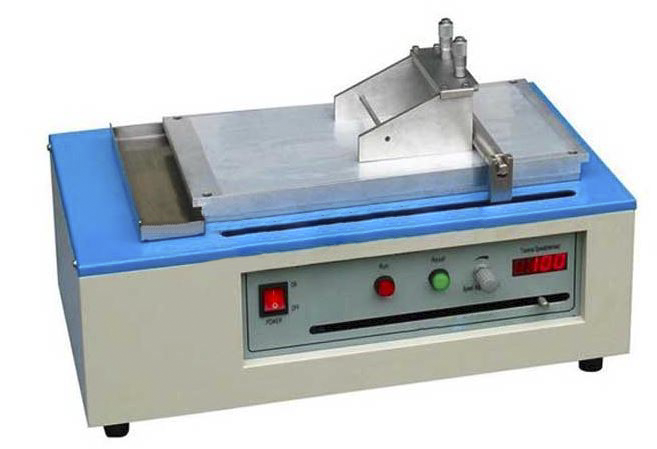

SDH-FSC is an extrusion head and mounting device to convert our MSK-AFA-I cast coater into an extrusion coater. The extrusion head is available in widths of 50mm or 100mm.

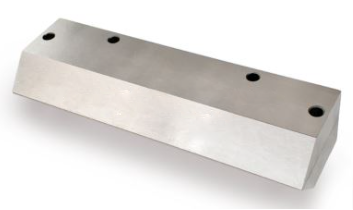

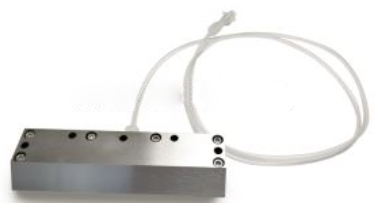

Extrusion Head Structure

Material: SUS630 stainless steel

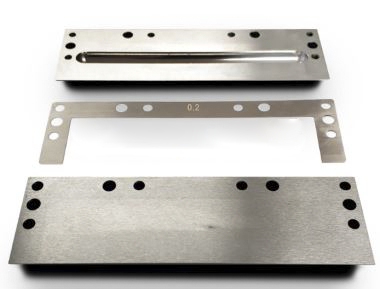

Contains 3 different thicknesses of gaskets: 0.2mm, 0.3mm and 0.4mm.

Features

Easy assembly and disassembly of the extrusion head

Easy to clean and maintain

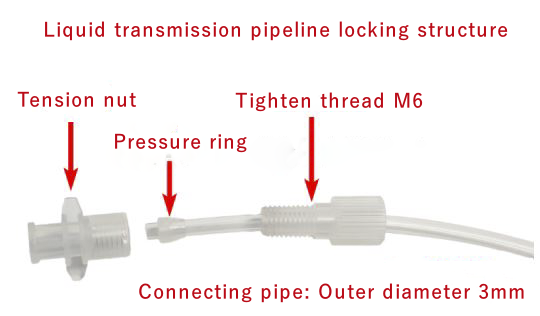

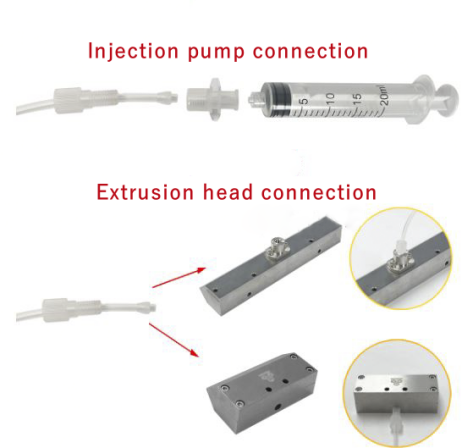

Includes connecting tubing for connecting the extrusion head to the syringe pump

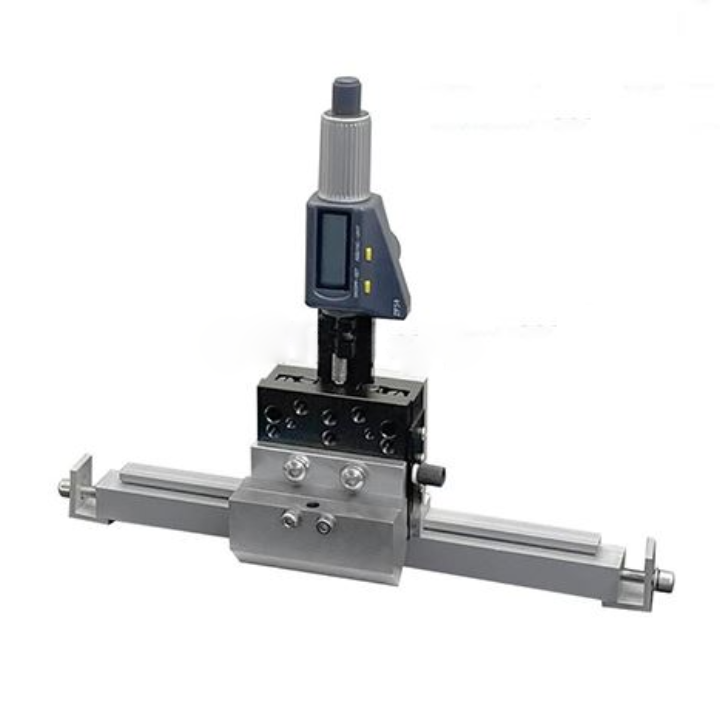

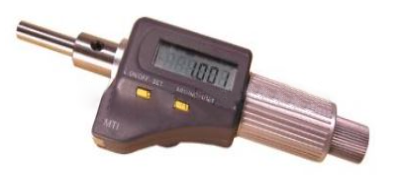

Fixed Bracket (mounted with digital micrometer)

Fixed bracket for mounting on the coating machine with digital micrometer for adjusting the distance between the extrusion head and the substrate.

This mounting bracket is designed for the coater MSK-AFA-III only.

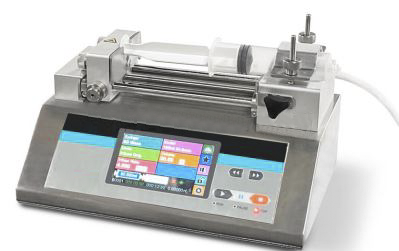

Optional Syringe Pump

Color touch screen, easy to operate

Push button with indicator light, clear working status Applicable syringe specifications: 10ul-140m1

Syringe protection and clogging alarm

Maximum pump speed:173mL/min(140mL)

Maximum stroke 140mm

Stroke control accuracy: error 035% (stroke > 30% of the maximum stroke)

Maximum rated linear thrust:>20kgf
