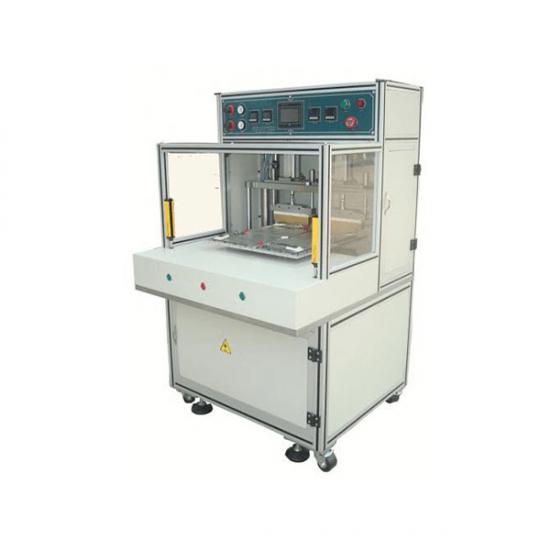

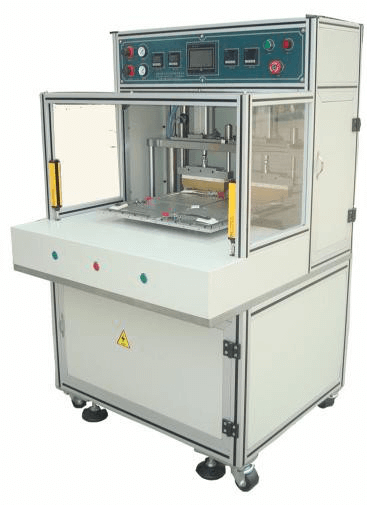

4-Position Rotary Table Heat Sealing Machine For Polymer Battery Top&Side Sealing

Introduction

It is suitable for the heating sealing on both sides of the top and side of the pouch cell.
Operation process: four clamps are arranged symmetrically on the turntable, and the batteries are manually loaded into the clamps at the loading position, which will be transmitted intermittently with the turntable. Stay in the loading position - top sealing position - side sealing position - blanking position in turn, complete the top side sealing and side side sealing at the corresponding position, take them out manually at the blanking position, and complete the top sealing and side sealing processes.

Machine structure

Rotary table feeding mechanism: with 4-position rotary table (aluminum), brake motor drive, 4-equal cam divider;

Top sealing structure: 1 set of upper and lower pre sealing device, air cylinder. Guide post, copper heating pipe, head, independent temperature control;

Side seal structure: 1 set of upper and lower pre sealing device, air cylinder. Guide post, copper heating pipe, head, independent temperature control;

Upper head base plate structure: chrome plated steel plate platform;

Specifications

Power supply	220V/50Hz
Power	1kw
Compressed air	≥0.6MPa
Turntable form	4 work station
Feeding accuracy of rotary table	±0.05mm
Applicable specifications	Top sealing≤200mm(include the size of airbag) Side sealing≤200mm Sealing length: 210mm
Sealing head width	5mm(customizable)
Sealing temperature	Rt~260℃ adjustable Control accuracy: ±2℃
Sealing time	0-10 seconds adjustable
Equipment capacity	200-400EA/H(depending on the operator's proficiency)
Alarm system	Low temperature, high alarm function; There is no leakage or repeated encapsulation of the battery;
Safeguard	Equipped with light curtain safety protection and rear door switch protection;
Control system	It adopts PLC to realize automatic control, touch screen to realize man-machine dialogue, convenient operation setting, rich and complete manual, automatic operation function, fault alarm function, output statistics function;
Machine weight	450KG
Machine dimensions	880mm L*870mm W*1500mm H
