Model number

HPBM-20

Grinding tank volume (L)

5L*4

Tank structure

Sealed, fast clip locking structure (company patent)

Grinding tank material

Optional stainless steel, zirconia, alumina, tetrafluoron, nylon, polyurethane, etc

Maximum loading per tank

The product and mill shall not exceed two thirds of the volume

Rotational speed

The maximum revolution is 25-215rpm and the maximum rotation is 50-430rpm

Speed ratio (revolution: rotation)

1:2

Speed regulation mode

Variable frequency speed regulation

Planetary turntable drive mode

Gear drive

Operating voltage

Three-phase 380V, 50HZ

Motor power and frequency conversion power

4KW

Working mode

Two or four tanks working at the same time

Maximum continuous working time

72 hours (timer 0-9999h)

Program control

Intelligent touch screen PLC control, better human-machine interface integration, can freely set the total fixed, forward, reverse, interval standby time, repeated alternating operation, real-time operation equipment can overcurrent, overvoltage, overload protection alarm.

Lubrication method of planetary mechanism (optional)

Automatic lubricating grease device (company patent) : flexible design time cycle, automatic quantitative filling of lubricating grease, solve the problem of wear caused by not timely lubrication of transmission components, extend the service life of equipment.

How to place and remove tanks

Automatic positioning device: It is convenient for the equipment to place and take tanks in the designated position, which improves the production efficiency.

Braking mode

The dry electromagnetic brake device is used to ensure accurate positioning in the process of placing and taking tanks, which not only improves efficiency but also ensures the personal safety of operators. It solves a series of uncontrollable after-sales problems caused by the use of brake motors to brake, and the after-sales cost is low.

Device host design 2 points of attention

The cover above the motor of the equipment is designed as a movable plate, which is convenient for the installation and replacement of the motor. The middle position of the bottom of the frame is reinforced with reinforced channel steel, which is convenient for forklift trucks to move from both ends of the equipment.

Reference size (MM)

1600（L）*8200（W）*1000（H）

Reference weight (KG)

710

Name

Equipment type

Qty

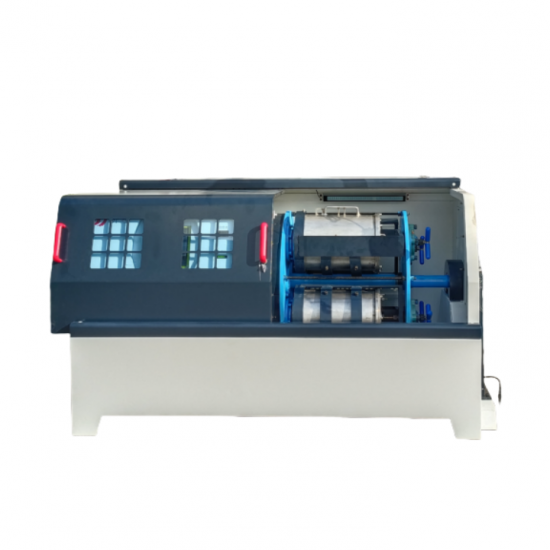

Horizontal planetary ball mill

HPBM-20

1 Unit

Grinding tank

5L ball mill tank

4 Pcs

Grinding ball

Provided by customer

4 Set

Self-lubricating system

HPBM-20 for matching (optional)

1 Set

Jacking device

HPBM-20 for matching

4 Set

Hexagonal plate hand

1 Pc

Specification

HPBM-20

1 Portion

Certificate of conformity

HPBM-20

1 Portion

Delivery list

HPBM-20

1 Portion

Serial number

Name

Brand

1

Electric machine

Dedon

2

Frequency changer

Delixi

3

Bearing

Harbin

4

Position proximity switch

Omron

5

Self-lubricating system

TMAXCN
