100V 10A Charge 20A Discharge Lithium Battery Pack Tester Aging Testing Machine Battery Pack Capacity Tester

Feature

The aging cabinet is mainly used for testing the charging and discharging cycle of finished lithium batteries. The testing items include: battery charging protection voltage, discharging protection voltage, capacity, etc. The equipment has charging, discharging, shelving, and cycling four testing steps. The battery can be tested according to the set process by editing the corresponding steps.

Contact us for more details about Battery Charge Tester!

We also supply all kinds of Aging Machine,Aging Tester for you!

30V 10A 20A / 70V 5A 10A

70V 10A 20A / 85V 10A 20A

100V 10A 20A / 100V 20A 40A

The basic performance of the tester

1. Charging and discharging functions

It has the functions of constant current and voltage charging and constant current discharging, charging and discharging batteries and recording the capacity of batteries.



2. Charge-discharge interface

It fully meets the requirements of charging and discharging ports and charging and discharging ports of battery packages, namely, two wires (P + P-) and three wires (P + P - C-). At the same time, the electric tool battery (CH+P+P-) which can aging positive plate charging protection and negative plate discharging protection can be used.



3. Check Voltage Protection

By charging and discharging the batteries, it can be detected whether the charging protection and discharging protection of the batteries play a role.



4. Safety Protection

Anti-reversal protection function; upper and lower limits of voltage setting protection; safe discharge current protection.



5. Online Mode

If the instrument is single or less than 5, PC can be connected through serial port.

More than 5 computers are connected by network mode. PC computer can control less than 60 instruments by only providing a network port.



6. Control System

The software system adopts classical mature C/S mode. There are two modes of communication: serial port and network. Serial port can realize accurate communication of several instruments in short distance, and network can realize accurate communication of many instruments in long distance.



7. Management software

Based on Windows operating interface, using SQL database to store test data, it is very convenient for staff to inquire and export data online. According to the battery bar code, time and equipment number, the aging curve of charge and discharge can be viewed, and the curve can be derived at the same time.

Specification

Technical Parameter
Input Power Supply	Measuring Range	10-100V
	Accuracy	±(0.2% of reading +0.2% of range)
Current	Charging Range	50-10000mA
	Charging Accuracy	±(0.2% of reading +0.2% of range)
	Discharge Range	50-20000mA
	Discharge Accuracy	±(0.2% of reading +0.2% of range)
Charge	Constant Voltage Cut-off Current	Minimum 50mA
Capacity	Accuracy	±1%
Power	Discharge Power	≤1400W
Time	Inspection Time	Real-time Collection<2S
	Timing Range	0-999h/step
Data Recording Interval	≥5S
Middle Machine Version	1:1 series
Number of Passages Per Cabinet	Seven channels, seven rows and one column
Charge	Charging Mode	Constant Current and Constant Voltage Charging
	Cut-off condition	Voltage, Current, Relative Time, Overcharge Protection
Discharge	Discharge mode	Constant current discharge
	Cut-off condition	Voltage, Relative Time and Over-discharge Protection
Loop	Cyclic measurement range	1-999 times
	Single cycle step number	100
Voltage and Current Detection Sampling	Four-wire sampling
Data Base	Using SQL database to manage test data
Upper computer communication mode	Based on TCP/IP Protocol/Serial Port
Data Output Mode	EXCEL/TXT/Chart
Communication Interface	Mesh port
Chassis dimensions	450x450x170mm
Cabinet size	980x600x1820mm
Spatial Dimension of Discharge Battery	370x550x190mm

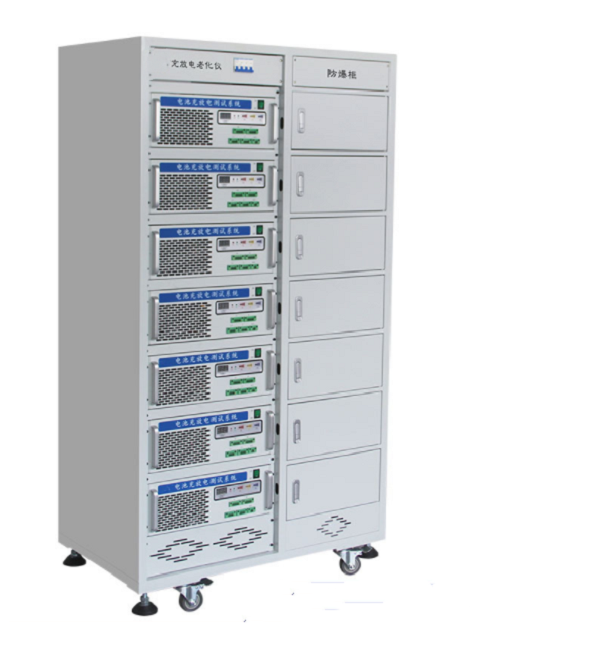

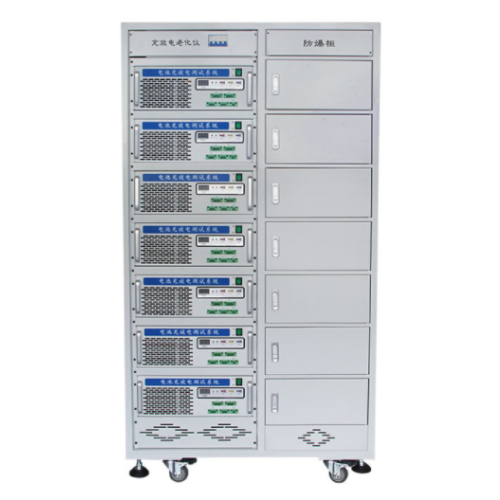

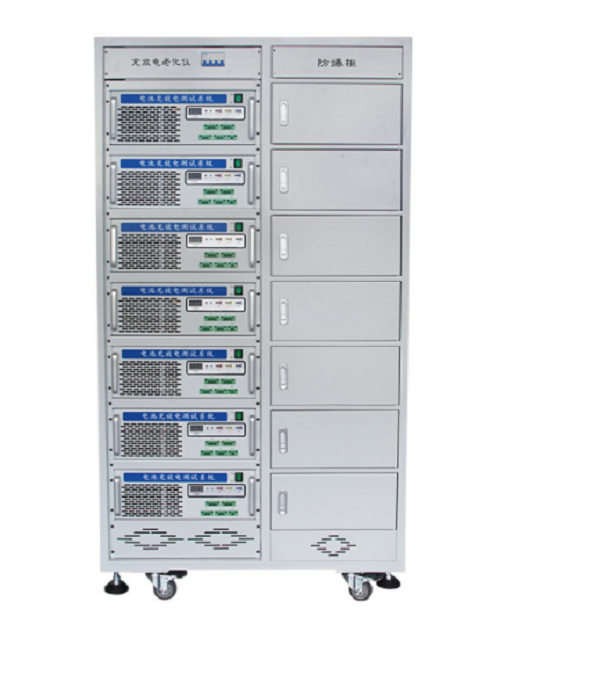

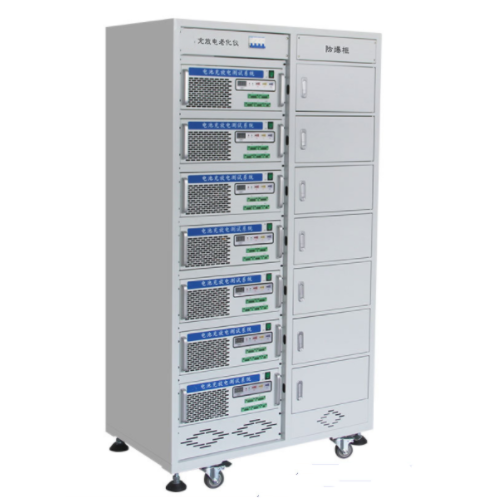

Product Images

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
