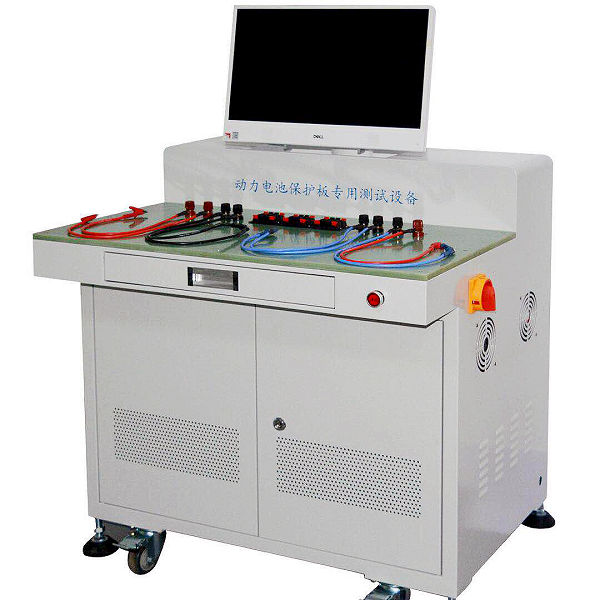

1-24/32 Series Battery Pack Protective Plate PCB BMS Tester With Computer Cell Management System for Lithium Battery

FEATURE

This machine is designed for test protecting voltage of over charge, recovery voltage of over charge, protecting voltage of over discharge, recovery voltage of over discharge, protecting current of over current, delayed performance of over current protecting total current self consumption 1~24 series power battery protection board tester.

SPECIFICATION

Parameter	Test Range	Accuracy
Number of Testing Series	1-24 series optional
Voltage Reference	Ternary Battery:3.8V Lithium Battery: 3V
Overcharge/Overdischarge Protection Voltage	0.5-5V	±5mV
Overcharge/Overdischarge Voltage	0.5-5V	±5mV
Overcharge Protection Current	0-50A	±0.1A
Over-discharge Protection Current	0-120A	±0.1A
Equilibrium Open Voltage	0.5-5V	±5mV
Equilibrium Real-time Current	0-200mA	±1mA
Overcurrent Protection Delay	0-15S	±1mS
Overcharge/Overdischarge Protection Delay	0-20S	±1mS
Single-section Self-consuming Power	0-500uA	±1uA
Internal Loop Resistance	0-500mΩ	±1mΩ
Short Circuit Protection (more than 6 series)	0-9999us	±1us
Supply Voltage	220VAC
Maximum Power	600W
Current Level	60-120A
Machine Size	420*430*220mm

PRODUCT IMAGES

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
