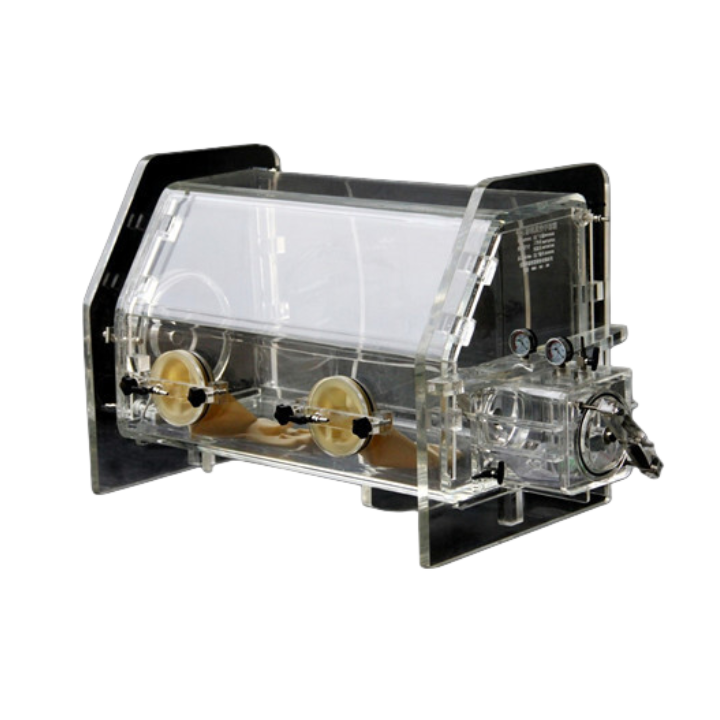

Vacuum Acrylic Plexiglass Glove Box with Vacuum Gauge

I. Introduction of glove box

In the process of scientific experiments, some substances are very easy to oxidize and deliquesce in the atmospheric state, which makes the chemical reaction of the test substances and the pre-treatment of the samples very difficult, affecting the test process and test results. Vacuum glove box (also known as vacuum inert gas operation box) effectively solves these problems, the device can make the test samples can be safely put in and take out, and in the state of no oxygen and no water comfortable operation, reaction and test, to ensure the normal conduct of scientific experiments.

II. Product use

This product is widely used in biochemistry, metallurgy, electronics, chemical industry, geology, minerals and other departments. There are electronic materials, magnetic materials, equipment batteries, biological cultivation, food vacuum packaging, battery materials and so on.

III. Product features

1. Its structure is simple, convenient to use, can transmit ultraviolet light, light weight;

2. Under normal conditions, it is stable, highly transparent and resistant to chemical corrosion and climate change.

3. The box is equipped with porous electric socket, which is convenient for scientific test.

4. Good sealing performance, and can shield and absorb radioactive substances emitted by the α-rays and low-energy β-rays, in order to protect human tissue phi ionizing radiation damage.

Therefore, it can cooperate with scientific research units to carry out experimental work of low-energy radioactive substances, aseptic operation of microbial inoculation and qualitative and quantitative analysis of chemicals and other related confined isolation operations can be carried out in the operation box.

IV. The operation box is divided into three models

A: as protection against radiation, isolation operation or dustproof operation exclusively, can not be used for vacuum;

B: Used as anaerobic anaerobic glove box, the transition room can be used for vacuuming, and the operation room can be used for inert gas replacement method to maintain the anaerobic anaerobic operation environment.

C: The operation box and transition box can be used for vacuum operation, and the vacuum degree can reach the ultimate vacuum -0.1MPA.

V. Technical indexes

1. Vacuum degree of transition chamber: 0 - 0.1Mpa (2.5 grade vacuum gauge), holding pressure for more than 12 hours.

2. Vacuum degree of operation room: 0 - 0.1Mpa (2.5 grade vacuum gauge), holding pressure for more than 12 hours.

3. Gas used: argon, helium, nitrogen (purity 99.95%) or more.

4. Operation box size: 700*450*500

5. Transition box size: 240*240*240

6.Vacuum degree: -0.1mpa

7. Pressure maintaining time: more than 12 hours

8.Leakage rate: ≤0.05%

9.Diameter of round door: 300mm

10.Weight: 88kg

11. Accessories: one pair of gloves, 2 inlet valves, 2 outlet valves, 1 vacuum gauge, 1 power plug board.

12. Specifications can be customized

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
