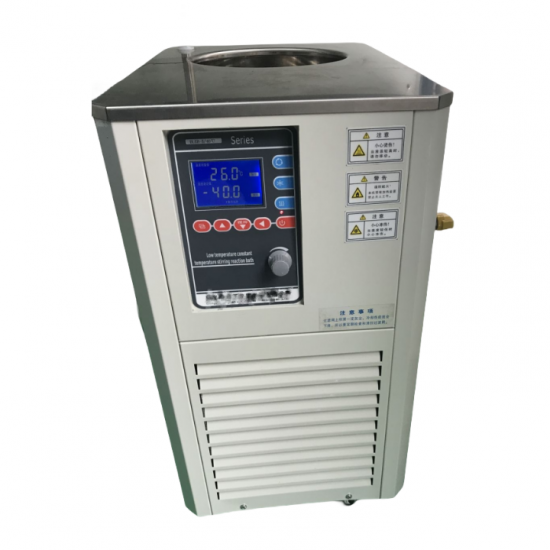

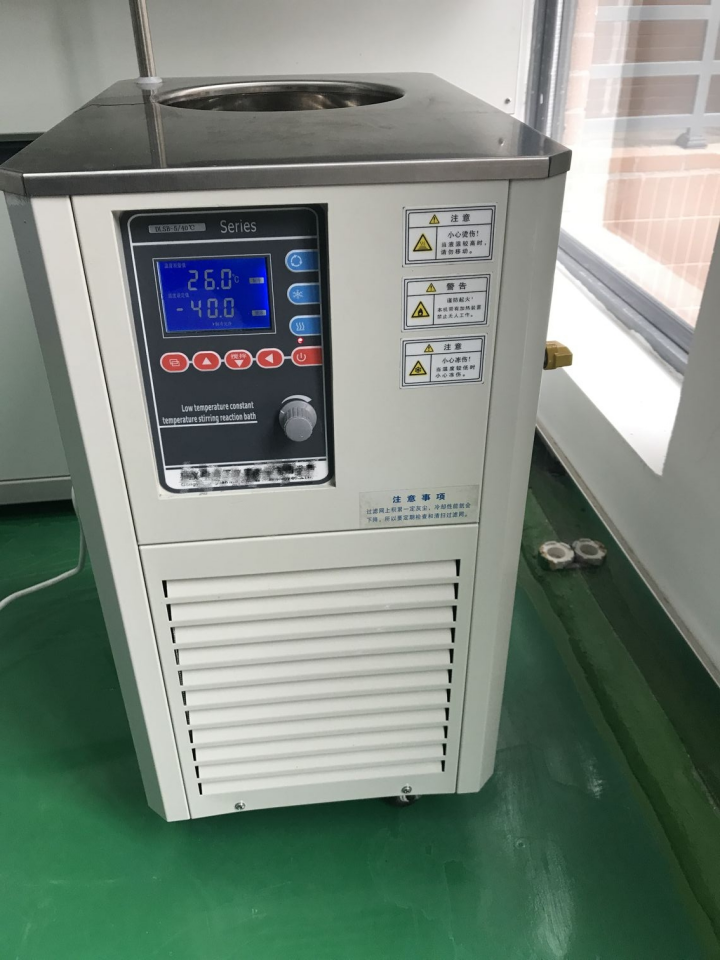

Low Temperature Cold Trap Cryogenic Cold Trap for Glovebox

5℃-80℃ low-temperature cold bath

Basic parameters

Cavity volume: 4.7 liters, size: φ200 * 150mm

Temperature control range: +0 ℃ ~ -80 ℃

Display: plc integrated display temperature

Internal material: 304 stainless steel, brushed surface

External material: 1.5mm stainless steel plate, plastic spraying

Cooling method: cold bath pot periphery evenly arranged copper tubes, copper tubes into the coolant

Refrigeration mode: imported compressor

Refrigerant: R404 R23

Temperature control range: +5 ℃ ~ -80 ℃

Temperature fluctuation：±0.1℃

Cooling capacity: 275-3150W

Heating power: 800W

Cooling power: 2840W

Circulation power: 100W

Circulation pump flow: 25L/min

Installation: embedded in the bottom of the glove box

Product features

Original hermetic compressor of international famous manufacturer, with advanced performance and reliable quality;

Refrigeration unit professional relays, protectors, capacitors, etc. are imported original high-quality equipment to ensure reliability and service life;

Digital display temperature control, simple and eye-catching operation;

Circulation system is made of stainless steel, with anti-corrosion, anti-rust, anti-temperature liquid pollution;

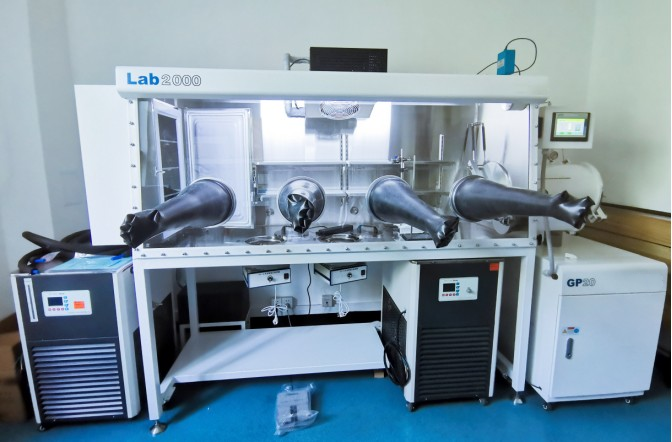

Cold trap for single-sided, double-station glove boxes (just to give you a reference to where the cold trap is placed)

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
