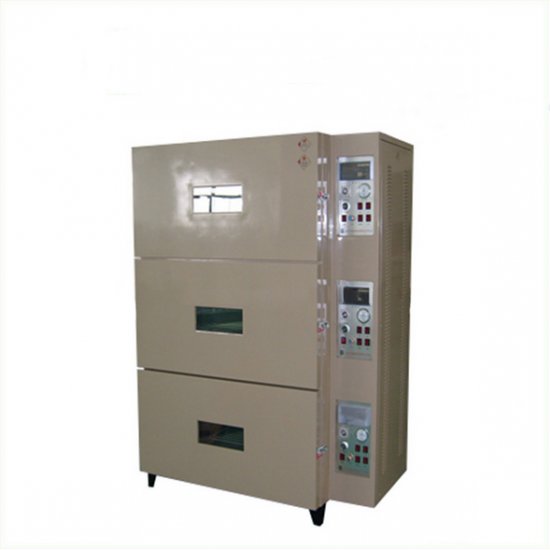

Lithium Battery Three Layer Vacuum Drying Oven

The TMAX-SBVO-03 vacuum oven is specially designed for lithium battery industry production process of vacuum drying equipment, the temperature, vacuum degree, the size of the studio and the barrier height is maximally meet the needs of the lithium battery industry.

This vacuum oven is manual vacuum and air control, it is mainly used for Lithium battery materials and electrode sheet vacuum baking.

Model	Manual Vacuum Oven For Lithium Battery TMAX-SBVO-03
Source voltage	AC380V, Three phase 4 wires, 50HZ
Power	4.5kw*3, three layers
Warranty	One year limited warranty with lifetime support
Max current	20A
Working chamber dimension (H*W*D)	300*800*600mm*3layers
Insulation layer thickness	90mm Aluminum silicate fibers
Working temperature	Nichrome wire heated mode, RT+15℃~200℃, With accuracy ±1℃
Temperature control mode	PID adjustment, Intelligent digital display temperature controller
Vacuum degree	≤100pa
Inner box materials	3mm SUS304 Stainless steel
Outside shell materials	1.5mm thickness cold-roll steel sheets
Structure	1 Three working chamber with one vacuum hole, controlled by hand separately 2 Open door mode : Three single door, with square observe window 3 With Air switch, over current protection, Over temperature protection.

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
