Lab Small 0.5-Gallon/2L Rotary Evaporator

A rotary evaporator is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. The process of rotary evaporation is most often used to separate solvents with low boiling points, such a n-hexane or ethyl acetate, from compounds which are solid at room temperature and pressure. However, careful application also allows for the removal of a solvent from a sample containing a liquid compound, if there is minimal co-evaporation (azeotropic behavior) and a sufficient difference in boiling points at the chosen temperature and reduced pressure.

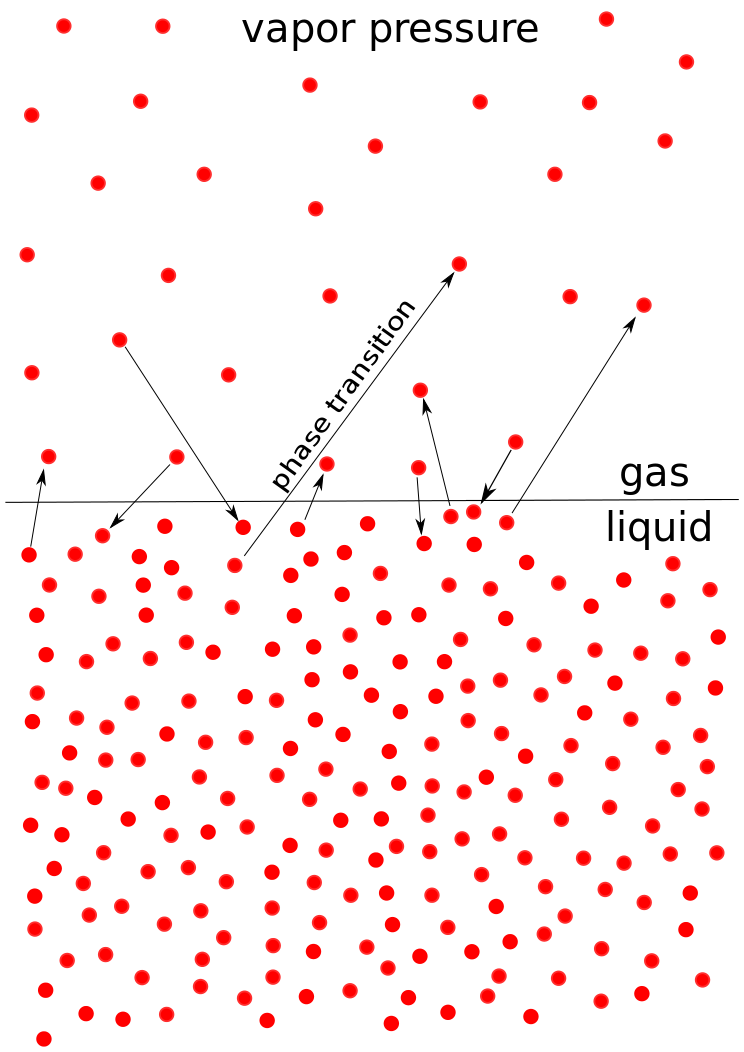

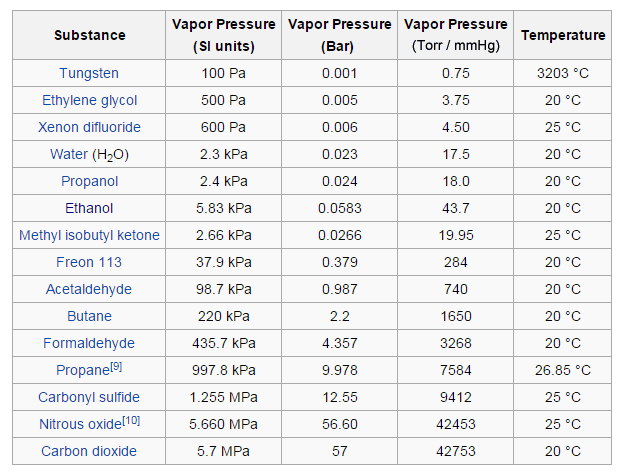

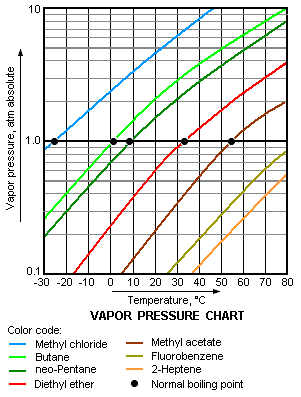

Example: The following table is a list of a variety of substances ordered by increasing vapor pressure (in absolute units).

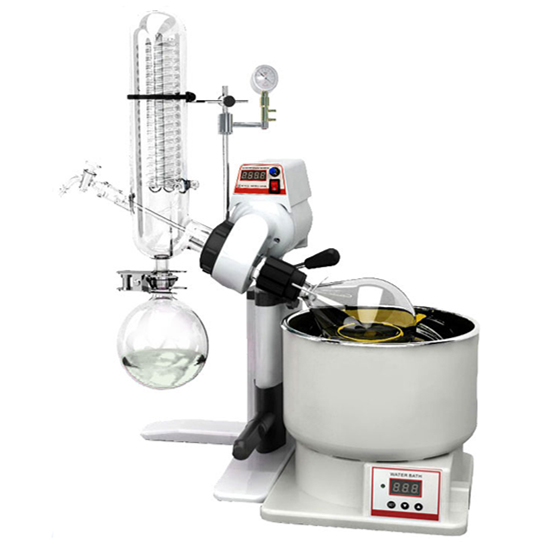

Ai SolventVap 0.5-gallon/2L (evaporating flask capacity) series rotary evaporators come with a modular heating bath, vertical glassware, and digital temperature/rotation control. Its optimized bath volume allows for rapid heat-up times. The condenser unit has specially designed glass tubes that utilize surface area extremely efficiently. That’s why our SolventVap evaporators consistently deliver reliable and reproducible process results that are usually reserved for more costly systems. Another important aspect of the SolventVap is the safety features, which includes dry-run protection, water bath over-temperature shut-off protection, and fuse protection.

Rotary evaporator features a specially designed motor and worm gear, which provides constant rotation at speeds from 10 to 180 rpm. As the flask containing the solvent is rotated, it continually transfers a thin layer of liquid over the entire inner surface. This gives a very large surface area for evaporation, which is caused by the gentle heating from the water bath. The rotating system is fitted with a special seal that allows the apparatus to be placed under vacuum, effectively reducing the boiling point of the solvents and removing the vapor phase, making the process much more efficient. Each unit is also equipped with an easy-to-use vacuum release and a continuous feed system, which allows solvent to be constantly drawn into the rotating flask without needing to stop the operation.

Digital water bath operates from ambient temperature to 99°C (210°F) with PID temperature control stepping at 0.1°C increments. Heating coils are located directly inside the pan for the most efficient heating possible. A built-in overheat protector will shut down power, should the controller fail.

Standard Glassware Set 0.13 gallon (0.5L), 0.26 gallon (1L) or 0.53 gallon (2 liters) pear shaped evaporating flask, 0.26 gallon (1 liter) round-bottomed receiving flask, and vertical condenser. Rotary evaporators with vertical glass condenser are great for distillation of solvents with higher boiling points.

Features

·        UL 61010-1 and CSA C22.2 certified, standard

·        Solvent-resistant PTFE and Viton gaskets ensuring long time operation.

·        Specialized motor with extremely compact, intermeshed worm and worm gear provides precise driving for very quiet, vibration-free operation.

·        Downward-condensing vacuum connection design ensures safe vacuum operation.

·        Modular design (individual rotary and water bath modules) for easy future upgrades.

·        Easy multi-level manual lift with secure lock for the evaporating flask.

·        Easy, straight-forward visual operation with digital speed and temperature display.

·        PID temperature controller ensures accurate temperature control is maintained.

Your safety is important to us! Please use caution when operating. Users of glass reaction equipment must take all necessary precautions to avoid contact with rotating parts, particularly entanglement of loose clothing, hair, necklaces, or other jewelry. Under these circumstances, the winding action of the rotating parts can draw the user(s) into the apparatus, resulting in breakage of glassware, burns, and/or chemical exposure. Extra caution must also be taken when operating with air-reactive materials, especially under vacuum. A leak can draw air into the apparatus and cause a violent reaction to occur.



Specifications

Electrical requirements	110V 60Hz single phase, 9.8A, 1075 watts  (heater: 1050 watts, rotation motor: 25 watts)
Glass material	High borosilicate glass 3.3
Evaporating flask	Capacity: 0.13 gallon (0.5L), 0.26 gallon (1L) or 0.53 gallon (2L)  Maximum load: Not to exceed 60% of the flask's capacity  Rotation speed: 10 to 180 rpm  Evaporating speed: 20 ml per minute  Lifting: weight balancing manual control with lock  Max lifting distance: 4 inches (extendable to 10 inches)
Receiving flask	0.26 gallon (1L)
Condenser	Glassware: Vertical with dual-spiral glass tubing  Chilling fluid connection: 3/8" hose barb x 2  Vacuum connection: 3/8" hose barb x 1  Condensing surface: 1,260 cm2 or 1.4 sq ft
Working environment	5 to 95°F
Water bath	Temperature range: ambient to 99°C (210°F)  Temperature controller: digital  Capacity: 2 gallons  Material: stainless steel  Dimensions: 10" diameter x 5" depth x 9.75" height  Media: distilled water only  Max. water level: not to exceed 1" from the top rim of the bath  Number of heaters: one
Vacuum	Connection: 3/8" hose barb x 1 (on condenser)  Sealing: PTFE + Viton gaskets  Ultimate vacuum: < 3 torrs
Safety	Dry-run, over-temp shut-off, fuse protections
Unit/shipping weight	21 / 55 Lb
Unit/shipping dimensions	22 x 12.5 x 26" / 24 x 24 x 25" (WxDxH)
Warranty	One year warranty on unit except glassware and all sealing gaskets.  Glassware may have minute blemishes that will not affect the function.  If you believe there are imperfections on your glassware, please contact us.  We check all our inventory and make sure no defective glassware is sent to our customers.
Compliance	UL, CSA



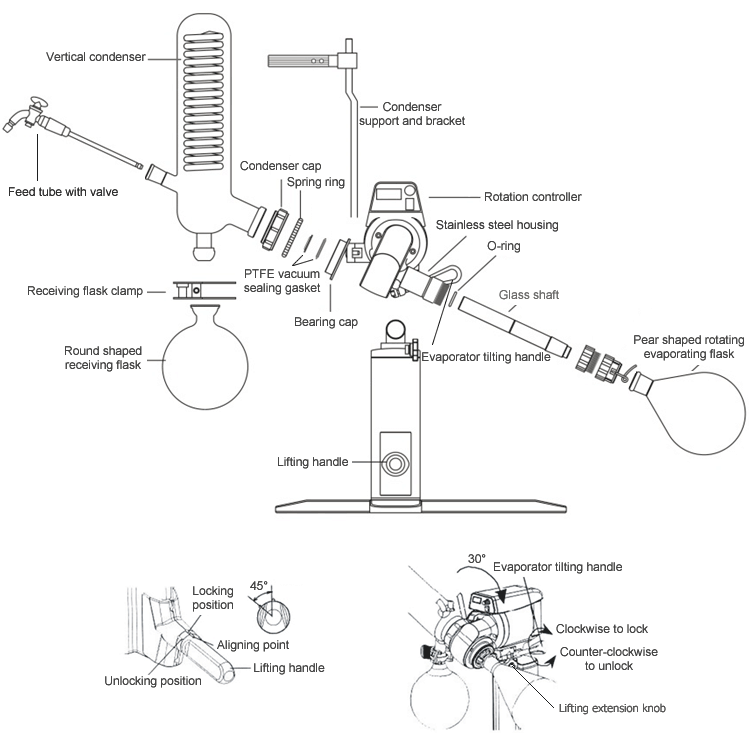

Standard package

Part description	Quantity
Evaporator body	1 pc
Water bath	1 pc
Vertical condenser with 2 chilling water ports and 1 vacuum port, glass	1 pc
2L pear shaped evaporating flask, glass  (choose based on volume of material to load)	1 pc
0.26G/1L round shaped receiving flask, glass	1 pc
Glass vapor duct with seal	1 set
Material feeding tube with valve, glass	1 pc
PTFE extension feeding hose	1 pc
PTFE vacuum sealing kit	1 set
Condenser cap kit	2 pcs
Glass shaft cap and evaporator flask quick-release	2 pcs
Condenser support and bracket	1 pc
Condenser support securing screw	1 pc
Receiving flask ball joint clamp	1 pc
GL14 connector	3 pcs
3-prong 110V US power cord for evaporator	1 pc
Phillips screw driver	1 pc
Mechanical vacuum gauge	1 pc
User's manual	1 pc

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
