Lab 20 to 2500RPM Vacuum Planetary Centrifugal Deaeration Stirring And Mixing Machine with Two 500ML Cups

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

Item No.:
BL-THA700(1000ml)
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

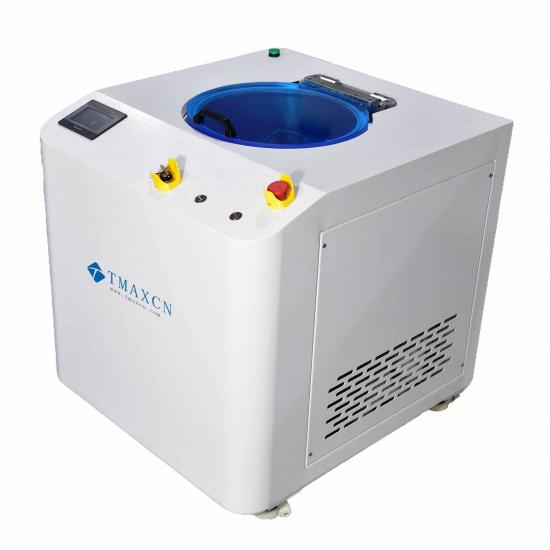

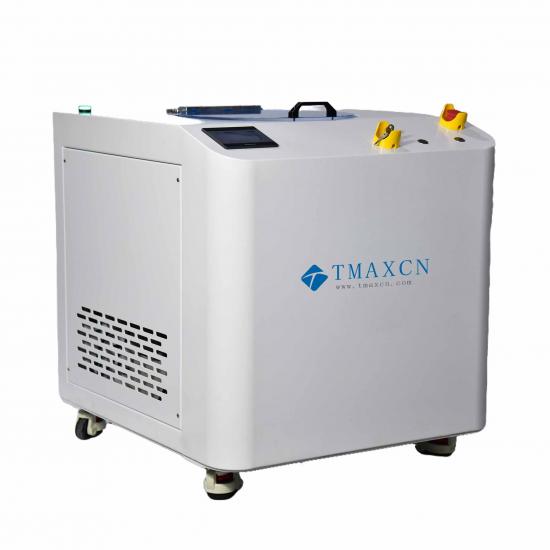

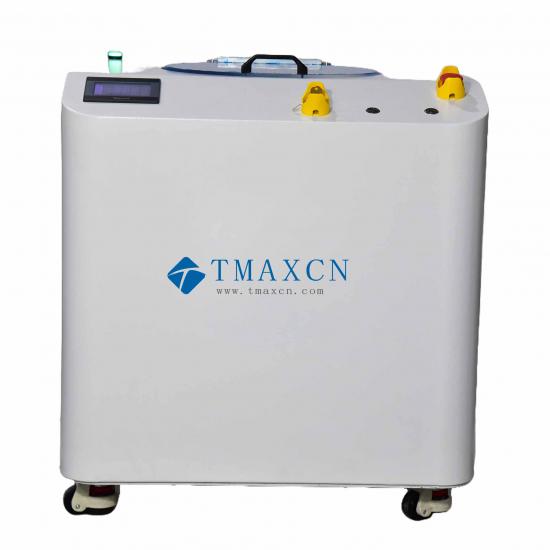

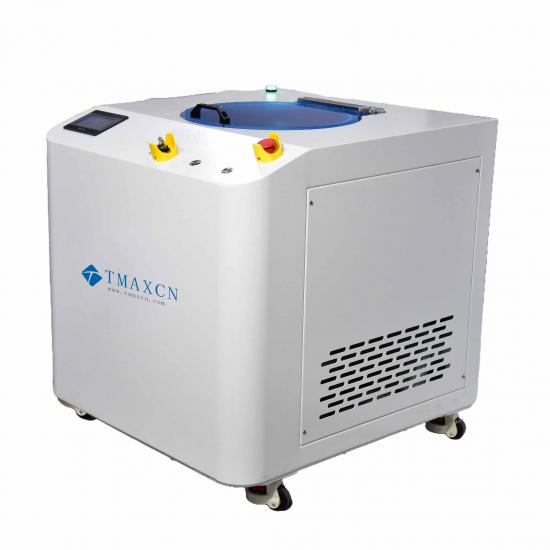

Lab 20 to 2500RPM Vacuum Planetary Centrifugal Deaeration Stirring And Mixing Machine with Two 500ML Cups

Product characteristics

It can evenly stir a variety of materials in a short time, including high-viscosity materials, liquids, and even nanoscale powder materials, and can also stir materials with large mixing ratios or specific gravity differences. Mixing and defoaming at the same time with super strength and high speed.

Product application

Application field

LED package/display	Adhesive	Silicone rubber
Polymer material	Argentol	Epoxy resin	Medicine
Printing ink	Conductive adhesive	LCD	Subject

Product performance

l Vacuum type, high configuration, experimental type, non-contact mixing

l Using German planetary stirring technology.

l At the same time of rotation/revolution, with a high-efficiency vacuum pump, the material is stirred evenly in tens of seconds to a few minutes, stirring and vacuuming are carried out simultaneously.

l The rotation speed of the revolution can be independently controlled, and it is designed for some materials that are very difficult to stir evenly.

l Equipped with different switching fixtures, pins and cups, materials within a few grams to 1000 grams can be stirred, which can meet all requirements from test to mass production.

l It can store 20 sets of data (can be customized), and each set of data can be divided into 5 sections to set different parameters such as time, speed, vacuum degree, etc., which can cope with the stirring defoaming requirements of most materials.

l The maximum speed can reach 2500 revolutions per minute, and all kinds of high-viscosity materials can be evenly stirred in a short time.

l The key components are made of big brands in the industry to ensure the stability of long-term use of the machine with high load.

l Some functions of the machine can be customized according to customer requirements.

Technical parameter

Equipment type	BL-THA700(1000ml)
Maximum agitation	1000ml,2*500g
Working mode	Vacuum/rotation/revolution/non-contact
Revolution speed	200-2500rpm, accuracy 1rpm(asynchronous motor)
Rotation speed	Fixed specific speed, accuracy 1rpm(servo motor)
Setting time	0-300SX5(total 5 stages), accuracy 1S
Continuous running time	30mins
Seal chamber	One die molding
Stored program	Group 5 (Willenton touch screen)
Vacuum degree	100kPa to-100kPa
Power supply	AC220V,50Hz/60Hz,2.3KW
Working environment	10-35℃,35-80%RH

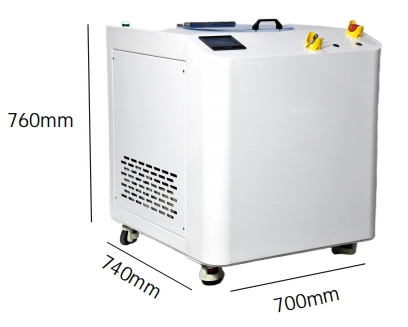

Overall dimension	L740mmW700mmH760mm
Main engine weight	230kg
Vacuum setting	Independent switch/with delay control function/manual setting
Self-check function	Unbalance over limit automatic alarm reminder
Security protection	The equipment will stop automatically if it fails The equipment will automatically lock when it is running The equipment will stop immediately once the cover is opened

Product details:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
