Adjustable Rotation Ratio 500ML Centrifugal Stirring and Defoaming Mixer Equipment Optional Non-vacuum Function

Adjustable Rotation Ratio 500ML Centrifugal Stirring and Defoaming Mixer Equipment Optional Non-vacuum Function

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna


  • Item No.:

    TMAX-BL-THA700(500ml
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

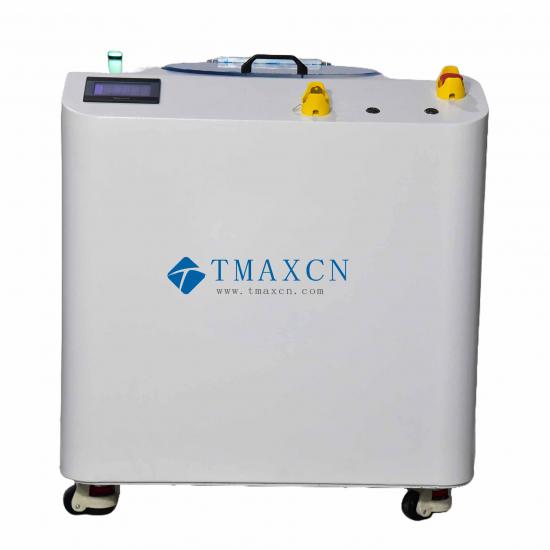

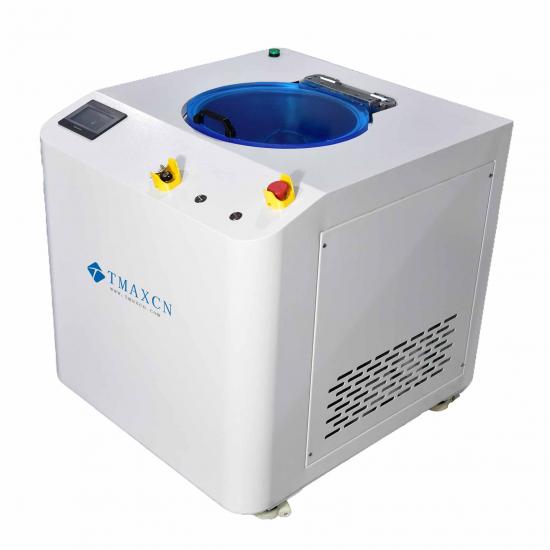

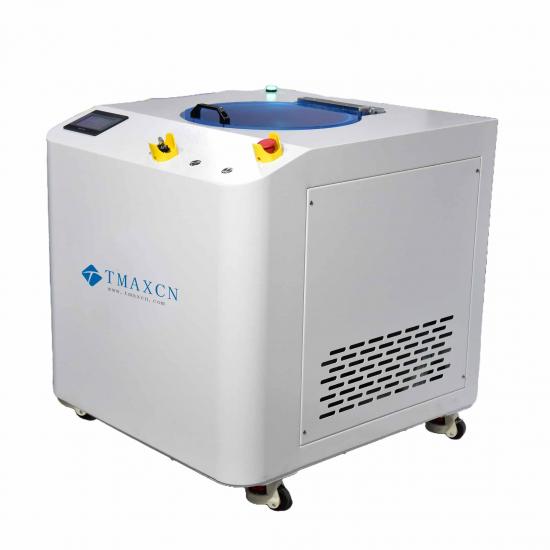

Adjustable Rotation Ratio 500ML Centrifugal Stirring and Defoaming Mixer Equipment Optional Non-vacuum Function





Product characteristics

It can evenly stir a variety of materials in a short time, including high-viscosity materials, liquids, and even nanoscale powder materials, and can also stir materials with large mixing ratios or specific gravity differences. Mixing and defoaming at the same time with super strength and high speed.



Product application





Application field

LED package/display

Adhesive

Silicone rubber



Polymer material

Argentol

Epoxy resin

Medicine

Printing ink

Conductive adhesive

LCD

Subject



Product performance

l Vacuum type, high configuration, experimental type, non-contact mixing

l Using German planetary stirring technology.

l At the same time of rotation/revolution, with a high-efficiency vacuum pump, the material is stirred evenly in tens of seconds to a few minutes, stirring and vacuuming are carried out simultaneously.

l The rotation speed of the revolution can be independently controlled, and it is designed for some materials that are very difficult to stir evenly.

l Equipped with different switching fixtures, pins and cups, materials within a few grams to 500 grams can be stirred, which can meet all requirements from test to mass production.

l It can store 20 sets of data (can be customized), and each set of data can be divided into 5 sections to set different parameters such as time, speed, vacuum degree, etc., which can cope with the stirring defoaming requirements of most materials.

l The maximum speed can reach 2500 revolutions per minute, and all kinds of high-viscosity materials can be evenly stirred in a short time.

l The key components are made of big brands in the industry to ensure the stability of long-term use of the machine with high load.

l Some functions of the machine can be customized according to customer requirements.



Technical parameter

Equipment type

BL-THA700(500ml)

Maximum agitation

500ml,2*250g

Working mode

Vacuum/rotation/revolution/non-contact

Revolution speed

200-2500rpm, accuracy 1rpm(asynchronous motor)

Rotation speed

Fixed specific speed, accuracy 1rpm(servo motor)

Setting time

0-300SX5(total 5 stages), accuracy 1S

Continuous running time

30mins

Seal chamber

One die molding

Stored program

Group 5 (Willenton touch screen)

Vacuum degree

100kPa to-100kPa

Power supply

AC220V,50Hz/60Hz,2.3KW

Working environment

10-35℃,35-80%RH

Overall dimension

L650mm*W580mm*H630mm

Main engine weight

150kg

Vacuum setting

Independent switch/with delay control function/manual setting

Self-check function

Unbalance over limit automatic alarm reminder

Security protection

The equipment will stop automatically if it fails

The equipment will automatically lock when it is running

The equipment will stop immediately once the cover is opened



Product details:



 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
