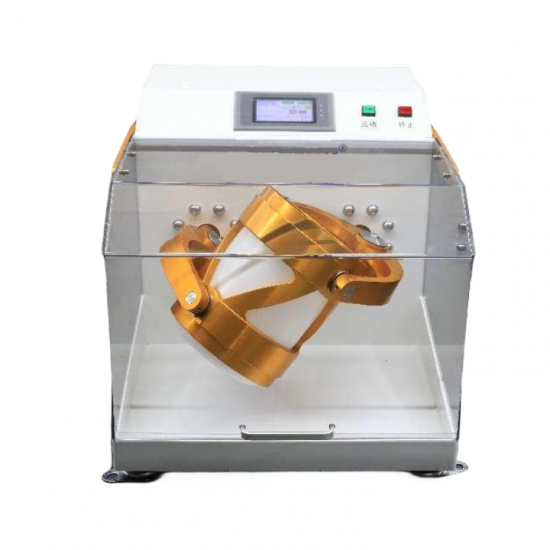

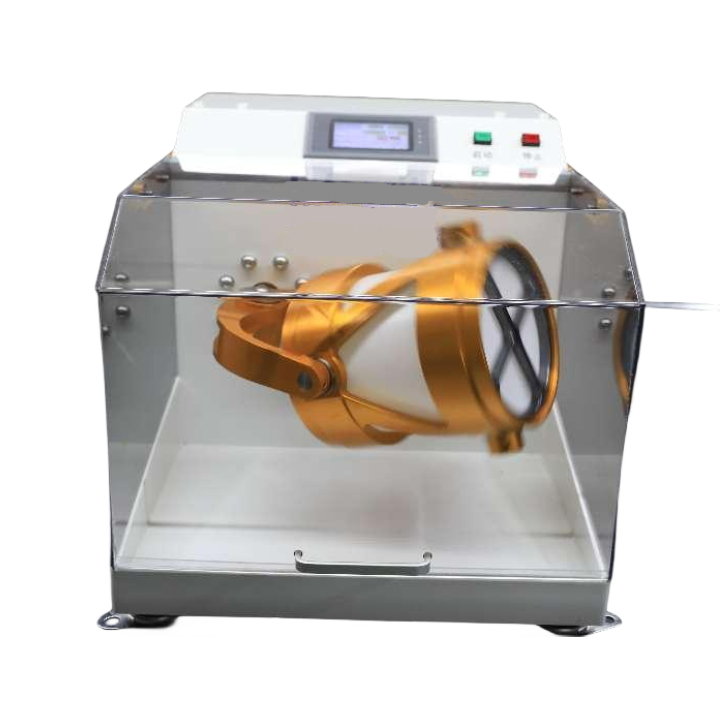

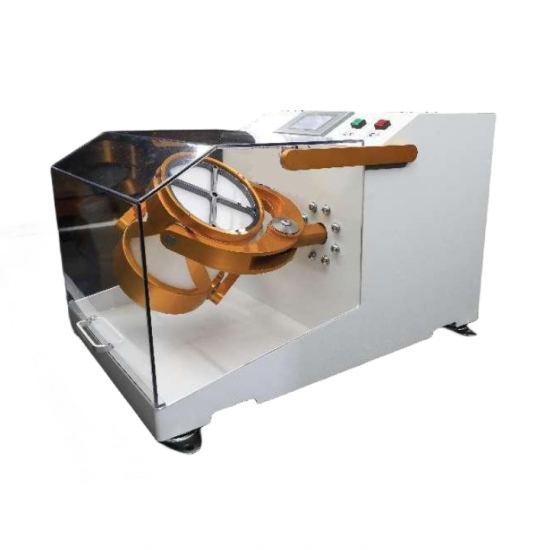

5L Small Three-dimensional Dry Powder Mixer with A Container

Model: SWH-5000ML

Use: Metal or non-metal powder mixing

Standard container: 5000ML

Maximum handling capacity: 4500ML (max. 9KG)

Extension of small containers: use the adapter sleeve or put it into the standard tank and fix it tightly.

Speed: 20~50rpm stepless speed regulation, according to the user's actual needs of any input, adjust 1rpm;

Setting time: forward and reverse 2 steps: 300 minutes and 59 seconds per step (total 602 minutes), precision 1s;

Parameter storage capacity: 5 groups;

Control system: man-machine dialog, Chinese interface, touch screen operation;

Working principle: rotating, leveling, inverted three-dimensional spatial movement;

Machine back to the origin: the machine stops automatically after the natural stop to find the origin of the stop

Safety protection: PC bulletproof glass-level shroud, stopping the locking movement, to prevent the release of material rotating fingers, to open the shroud immediately stop working.

Open the shroud to stop working immediately;

Applicable temperature and humidity: 10~40 ℃; 20~60%RH;

Voltage: AC220V±5%; 1-Phase; 50~60Hz;

Outer size L500×W750×H500mm;

Host weight 60Kg.

Equipment features: easy to maintain, the real realization of dust-free production, easy to clean, mixing uniformity

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
