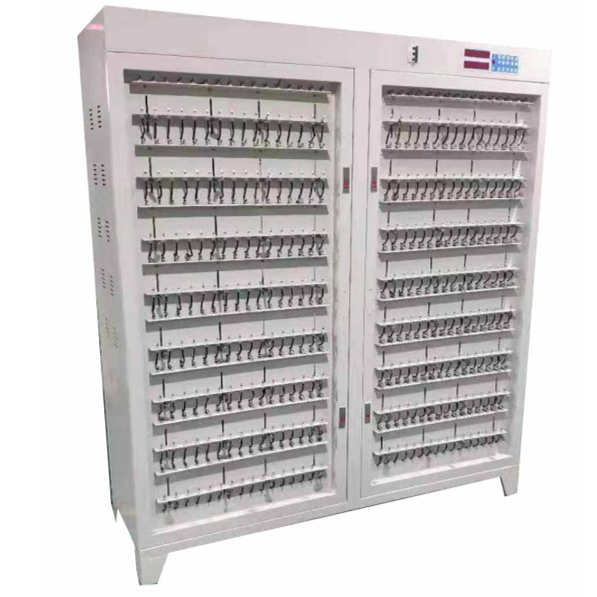

Model

TMAX-CG-8512W-5V2A-S1

Input Power

AC 220V ±10% / 50Hz

Whole power range

8300W

Voltage

Test Range

0.8V~4.3V

Accuracy

±（0.2% of reading + 0.2% of range）

Current

Output range

±2000mA

Accuracy

±（0.2% of reading + 0.2% of range）

Constant voltage cutoff current

Min 15mA

Time

Inspection time

Real time<2S

Timing range

0~9999 min/step

Data Logging Interval

≥20S

Sorting condition

Termination capacity (time)

Central controller version

6 series

Charge

Charge Mode

Constant Current Charge、Ni-MH battery  charge,lithium ion battery charge

End Condition

Voltage、cutoff current、 Time、Voltage variation

Discharge

Discharge Mode

CCD

End Condition

Voltage、Time

Cycle

Loop Measure Range

1~9999 times

Single cycle step

254

Nested Loop

Nested loop Function，Max Support 3 Layers

Protection

Software Protection

Power-down Data Protection

Setting Protection Condition,overvoltage protection,

undervoltage protection,overcurrent protection,

undercurrent protection,at the mean time protect the voltage and current value can be set.

Voltage and Current Testing Sample

4-wire connecting

Noise

<85dB

Database

MySQL Database

Communication Interface

Ethernet Port

Per Unit Main Channels No.

512

Dimensions

W*D*H：1450*380*1780（mm）

Battery clamp type

Upper and lower probe clamp

Battery clamp adjust range

Max 80mm,clamp spacing 34mm
