Purpose:

It is suitable for dispersing, mixing and defoaming of multi-component materials (silica gel, multi-component epoxy resin, etc.).

Standard container:

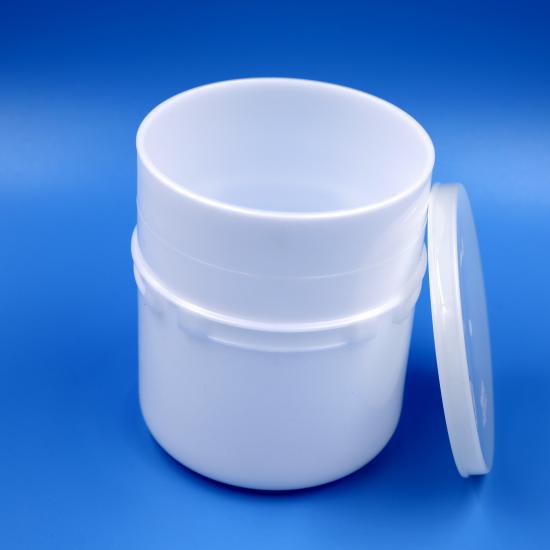

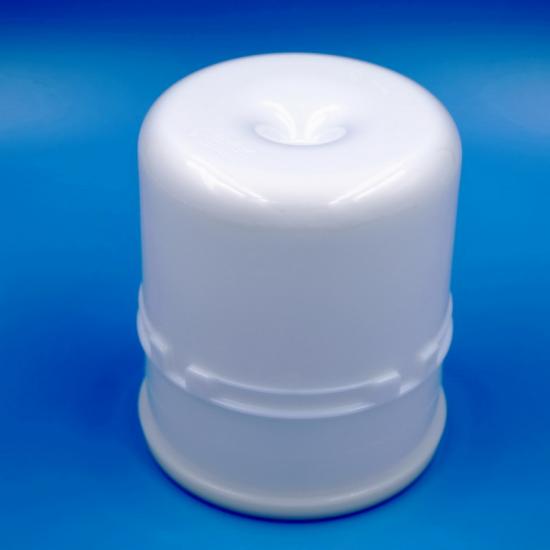

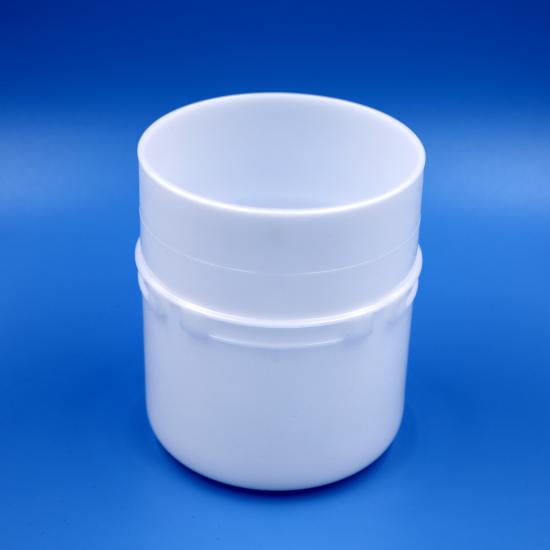

300ML (HDPE φ78×90) or 150ml (HDPE φ60*72);

Maximum throughput:

10g~350g; ≤150mL;

Revolution:

100~2000rpm stepless speed regulation, arbitrary input according to the actual needs of users, the adjustment accuracy is 1rpm;

Rotation:

Fixed speed ratio 0.65;

Set time:

0~3000S*5 (five steps in total), precision 1s;

Parameter storage:

5 groups;

Vacuum degree:

-100KPa, precision 0.1KPa;

Vacuum source:

Built-in two-stage advanced vacuum pump 240L/min (=4L/sec=14~16m²/hour); absolute limit pressure (partial pressure 5*10-2Pa and 0.05Pa); absolute limit pressure (full pressure 4*10-1Pa and 0.4Pa)

Vacuum Settings:

Vacuum independent switch, with vacuum delay function, vacuum degree can be adjusted arbitrarily;

Bearing:

Japan NSK bearing;

Control System:

Human-machine dialogue, Chinese interface, touch screen operation;

Balance adjustment:

Double cup configuration balance;

Transfer method:

Gear drive;

Working principle:

Public rotation wingless centrifugal gravity method;

Alarm system:

Run the cover uncovered detection;

Safety protection:

During operation, the upper cover is locked, and when the upper cover is opened, it stops working;

Applicable temperature and humidity:

10~40 ℃; 20~80%RH (if there is no foggy moisture, it is enough);

Voltage:

AC220V±5%; 1-Phase; 50~60Hz;

Power:

The rated power of the host is 1000w, including the vacuum pump, and the standby is 15W;

Dimensions:

L670*W560*H610mm;

Host weight:

115Kg;

Features:

Rotation and revolution motion can generate a centrifugal gravity of up to 800G, strong dispersion and de-foaming; no spiral blades, realize stirring and dispersion in the container; no need to clean, no pollution to materials; no damage to the properties of materials (especially fibrous materials); Human-computer interaction, easy to operate; ultra-small, ultra-light, ultra-quiet optimized design.

Selection guide

machine type

Machine standard cup full cup capacity

Maximum filling capacity of a single cup

total charge capacity

Single cup:

ITT-300

300ML

150ML

150ML

ITT-900

900ML

450ML

450ML

Double cup:

ITT-300S

300ML

150ML

300ML

ITT-900S

900ML

540ML

1080ML

ITT-1500S

1500ML

900ML

1800ML

ITT-4000S

4000ML

2200ML

4400ML

ITT-10000S

10L

5L

10L

Others: The stirring capacity of the male-rotation adjustable version, the oil-free pump version, and the vacuum-free version refers to the above
