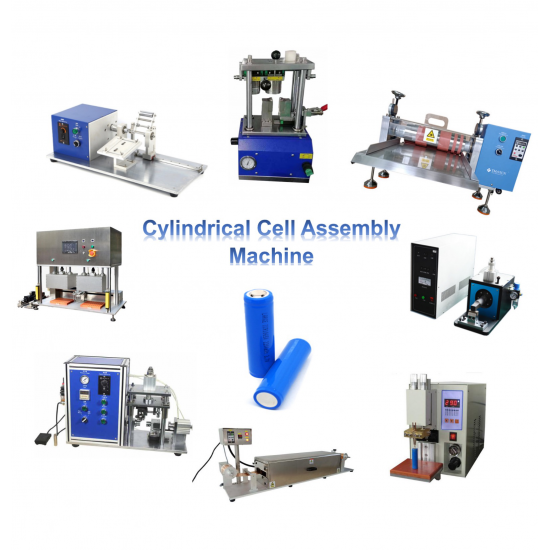

14500/18650/21700/26650/32650 Cylindrical Cell Lab Assembly Equipment Preparation

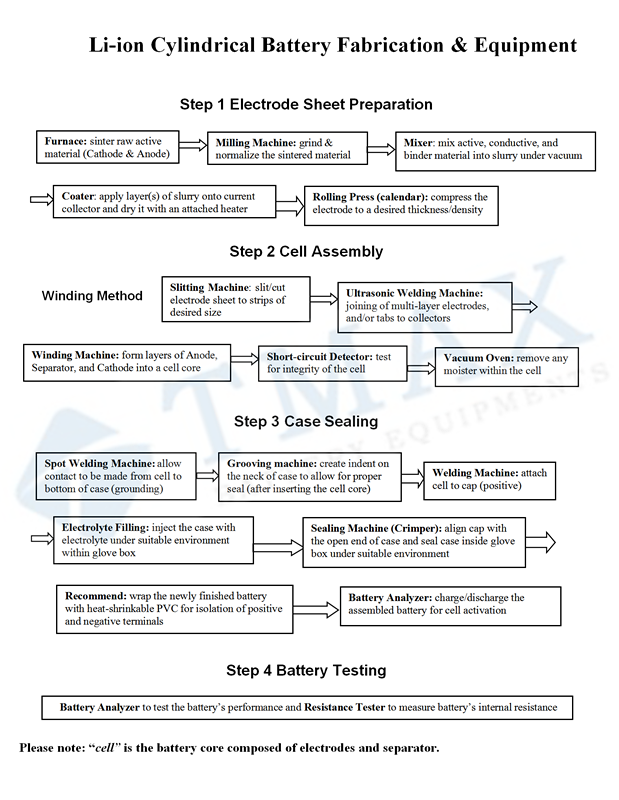

Related Machine for Cylindrical Cell Making

Process	Machine
Power Processing	1.Tube Furnace 2.Muffle Furnace
Power Grinding	Planetary Ball Mill
Vacuum Mixing	1.Compact Dual-Shaft Planetary Vacuum Mixer Machine 2.Slurry Vacuum Mixer
Electrode Coating	Lab Compact Heat Film Vacuum Coating Machine with  Doctor Blade
Roll Press	Heat Rolling Press Machine
Sheet Cutting	Automatic Slitting Machine
Vacuum Drying	1.Vacuum Drying Oven 2. Air Convection Drying Oven
Ultrasonic Welding	Ultrasonic Spot Welding Machine
Electrode Winding	Battery Electrode Winding Machine
Spot Welding	1.Precise Micro Spot Welding Machine 2. AC Spot Welding Machine 3. DC Spot Welding Machine
Grooving	Grooving Machine
Glove Box	Vacuum Glove Box With H2O & O2 Purification System
Electrolyte Injection	Electrolyte Filling Machine
Electrode Diffusion	Electrolyte Diffusion&Degassing Machine
Hydraulic Sealing	Cylindrical Cases Sealing Machine
Battery Analyzer	5V 3A6A 8Channel Battery Testing Machine







Process	Item	Product Name	Description	Web Address
Power Processing	Furnace	Muffle Furnace	Temerature Range:1200C-1600C	https://www.tmaxcn.com/MUFFLE_c0_ss
		Tube Furnace	Temerature Range:1200C-1800C 1. Single Zone 2. Double-Zone 3. Three-Zone 4. Vertical	https://www.tmaxcn.com/TUBE_c0_ss
Power Grinding	Ball Mill	Planetary Ball Mill	Vertical Planetary Ball Mill	https://www.tmaxcn.com/ball-mill_c0_ss
			Horizontal Planetary Ball	https://www.tmaxcn.com/laboratory-horizontal-planetary-ball-mill-for-powder-making_p1251.html
			Air Cooling Planetary Ball Mill	https://www.tmaxcn.com/cryogenic-planetary-ball-mill-with-jars_p1032.html
Vacuum Mixing	Mixer	Small Lab Mixer	Small Slurry Vacuum Mixer With Two Containers (150 & 500ml)	https://www.tmaxcn.com/small-slurry-vacuum-mixer-with-two-containers-150-500ml_p973.html
			Compact Dual-Shaft Planetary Vacuum Mixer Machine With A 500 ML Container	https://www.tmaxcn.com/compact-dual-shaft-planetary-vacuum-mixer-machine-with-a-500-ml-container_p385.html
Electrode Coating	Electrode Coating Machine	Electric Heat Film Coating Machine with Dryer	Optional Coating Size Heat Film Coating Machine	https://www.tmaxcn.com/laboratory-electric-heat-film-coating-machine-for-electrode-coater-with-dryer_p904.html
Roll press	Electrode Rolling Press Machine	Heat Roll Press Machine For Lithium Battery Production	Roller Size: 100mm Dia. x 100mm W 100mm Dia. x 200mm W 100mm Dia. x 300mm W 100mm Dia. x 400mm W (Rolling size can be customized)	https://www.tmaxcn.com/100mm-heat-roll-press-machine-for-lithium-battery-production_p831.html
Sheet Cutting	Slitting Machine	Battery Electrode Roll Slitting Machine	Slitting width: 20-500mm Slitting thickness: 100-300um	https://www.tmaxcn.com/battery-electrode-roll-slitting-machine-for-r-d-laboratories_p986.html
Vacuum Drying	Dying Machine	100-400°C Convection Drying Oven With Digital Temperature Controller	Temperature range:100-400℃	https://www.tmaxcn.com/100-400-c-convection-drying-oven-with-digital-temperature-controller_p1063.html
		25L Digital Vacuum Ovens (12x12x11" ) With High Temperature Controller & Inner Chamber	Temperature range:RT+10~250 C	https://www.tmaxcn.com/25l-digital-vacuum-ovens-12x12x11-with-high-temperature-controller-inner-chamber_p974.html
Ultrasonic Welding	Ultrasonic Spot Welder	Al Tab Ni Tag Ultrasonic Welding Machine	2000W, 40kHz, max.40 Layers 3000W,  40kHz, max.60 Layers	https://www.tmaxcn.com/au-fe-ni-ag-ultrasonic-metal-welder-tabbing-max-40-layers_p909.html
Electrode Winding	Winding Machine	Semi-Auto Winding Machine	Suitable battery size:Less than Φ35*L90mm, or according to your requirement	https://www.tmaxcn.com/semi-auto-winding-machine-for-electrode-assembly-of-cylindrical-battery_p1123.html
Spot Welding	Spot Welding Machine	Precise Micro Spot Welder	Welding Thickness: 0.03 - 0.25mm Welding Current: 2500A	https://www.tmaxcn.com/precise-micro-spot-welder-battery-tab-spot-welding-machine-for-18650-cylindrical-battery_p1496.html
		5000A/8000A Pneumatic Inverter DC Spot Welding Machine	Maximum Output Short Circuit Current:5000A or 8000A Welding Thickness: Maximum thickness of parallel welding:0.03mm~0.5mm	https://www.tmaxcn.com/5000a-8000a-pneumatic-inverter-dc-spot-welding-machine-for-battery-pack-assembly_p1511.html
		AC Plus Pneumatic Spot Welding Machine	Welding Thickness:   0.03~0.2mm Output Maximum Short Circuit Current: 3000A	https://www.tmaxcn.com/ac-plus-pneumatic-spot-welding-machine-for-cylindrical-battery-welding_p1494.html
Groving	Groving Machine	Laboratory 18650,26650,Etc Cylindrical Cell Grooving Machine	Grooving depth: 1.2~2.0mm Grooving height: 1.1~1.5mm Accuracy:±0.1mm Productivity: 400 grooving /hr	https://www.tmaxcn.com/laboratory-18650-26650-etc-cylindrical-cell-grooving-machine_p873.html
Glove Box	Vacuum Glove Box	Single-Side（1200×750mm) Vacuum Glove Box With H2O & O2 Purification System	Environment of Box inside: H2O <1 ppm (20°C/68 ℉, 1 atm) O2 <1 ppm (20°C/68 ℉, 1 atm) Structure: Integrated structure (Purification System integrated under the box)	https://www.tmaxcn.com/single-side-1200-750mm-vacuum-glove-box-with-h2o-o2-purification-system_p1422.html
Electrolyte Injection	Electrolyte Filling Machine	Laboratory Small Electrolyte Filling Machine For Li-Ion Battery	Injecting range: 0-50ml	https://www.tmaxcn.com/laboratory-small-electrolyte-filling-machine-for-li-ion-battery_p875.html
		Cylinder Cell Electrolyte Filling Pump System With Electronic Control Box	Speed: 1-800 rpm Filling range: 0-2.4ml adjustable	https://www.tmaxcn.com/cylinder-cell-electrolyte-filling-pump-system-with-electronic-control-box_p1024.html
Electrode Diffusion	Electrode Diffusion Machine	Electrolyte Diffusion & Degassing Chamber	Product Dimensions: 1.  Vacuum Box: 500mm(L) x 350mm(W) x 630mm(H) 2. Control Unit: 460mm(L) x 220mm(W) x 340mm(H)	https://www.tmaxcn.com/electrolyte-diffusion-degassing-chamber-for-professional-li-on-battery-research_p469.html
Hydraulic Sealing	Hydraulic Sealing Machine	Hydraulic Sealing Machine For Cylindrical Case	Crimping Dies: Six standard die selectable: CR123 /18650 / 26650 / 32650 / 50100 / AA /AAA	https://www.tmaxcn.com/hydraulic-sealing-machine-for-cylindrical-case_p877.html
Battery Analysis	Battery Tester	5V6A 8 Channel Lithium Ion Battery Tester Equipment For Experiment	Current: Range: 12mA – 6000mA Voltage: Range: 10mV-5Vfor charging, 2.5V-5Vfor discharging	https://www.tmaxcn.com/5v6a-8-channel-lithium-ion-battery-tester-equipment-for-experiment_p596.html

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
